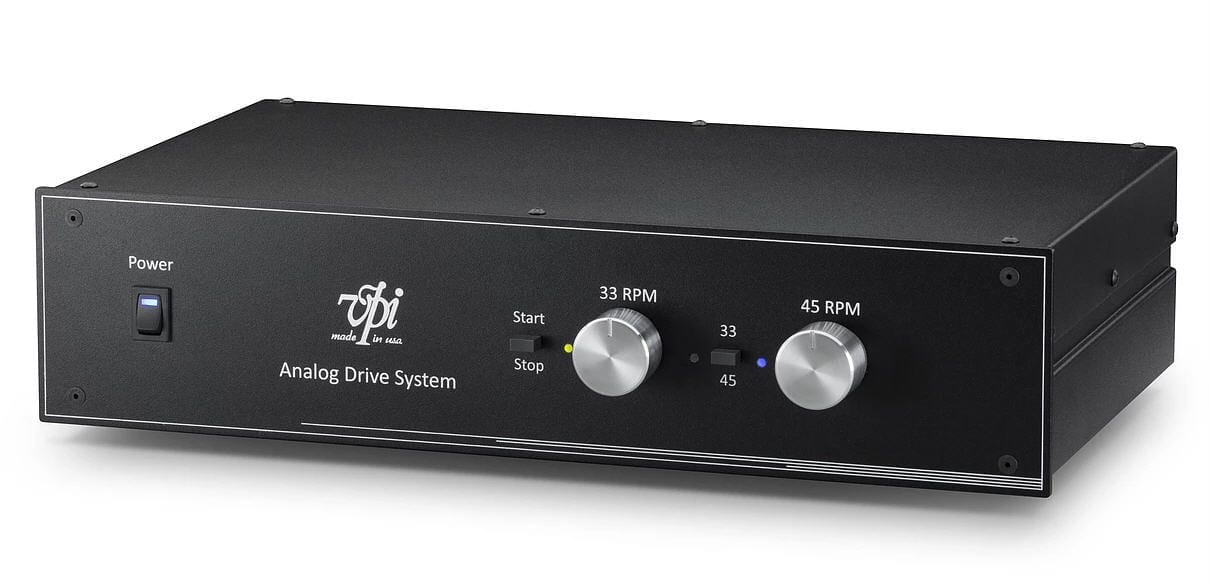

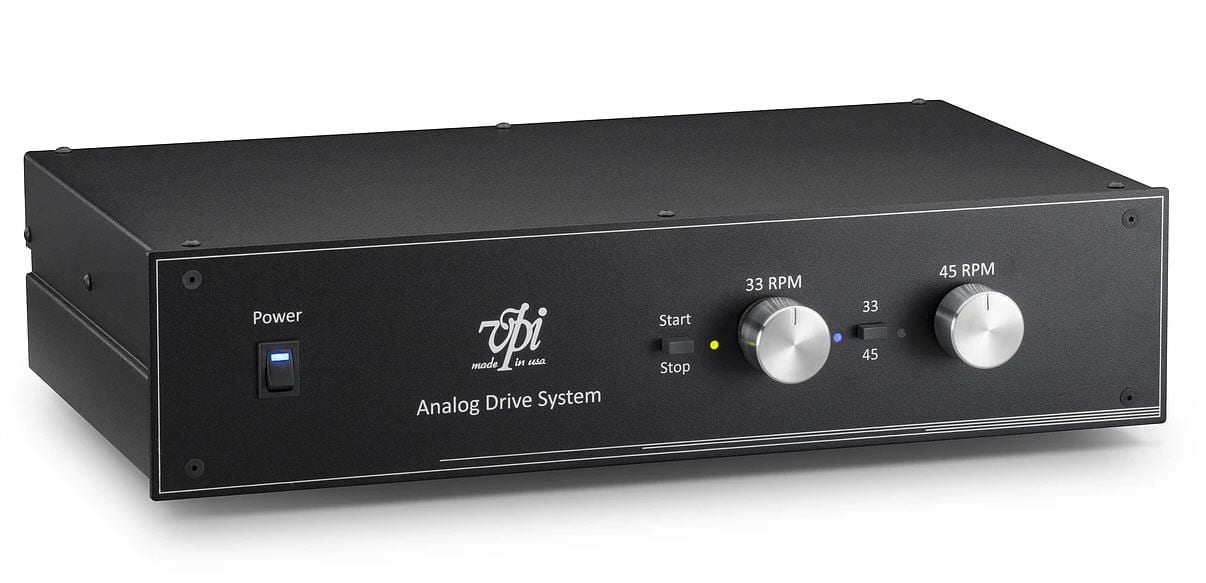

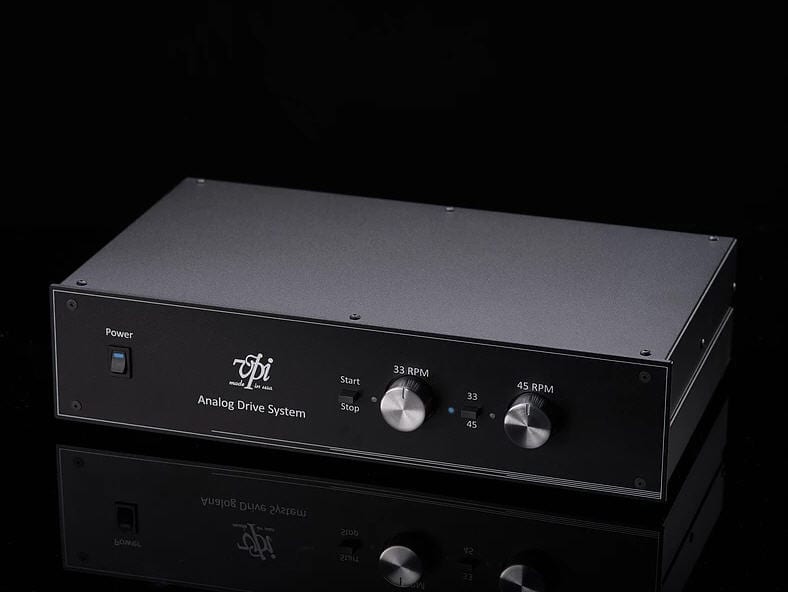

The ADS design includes two pure analog frequency generators featuring low distortion and noise; a high current Class-A/B amplifier that is transformer-coupled to the turntable output; analog control logic for low noise operation; 33/45 RPM analog speed adjustment controls with center detente positions that are factory calibrated. Created by our Director of Electrical Engineering, Michael Bettinger.
| Brand |
|---|
Additional Specifications:
Line Voltage: 115/230 VAC Factory set
Line Frequency: 50/60Hz

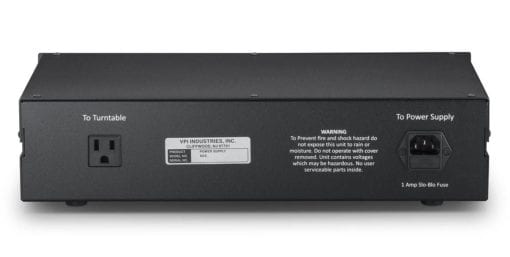

Line Fuse: 1 amp (Slo-Blo)
Output voltage: 115/230 VAC Factory set
Start Voltage: 120/240 VAC
Run Voltage: 90/180 VAC
Output Frequency: 50Hz/60Hz Factory Set
Output Frequency Range:
60 Hz Center Detent: 60Hz @33 RPM & 81Hz@ 45 RPM
50 Hz Center Detent: 50Hz @33 RPM & 68Hz@ 45 RPM
Control Range +/- 3Hz
Output Power: 15W
Dimensions: 16” X 4” X 12” (W X H X D)
Weight: 10lbs
