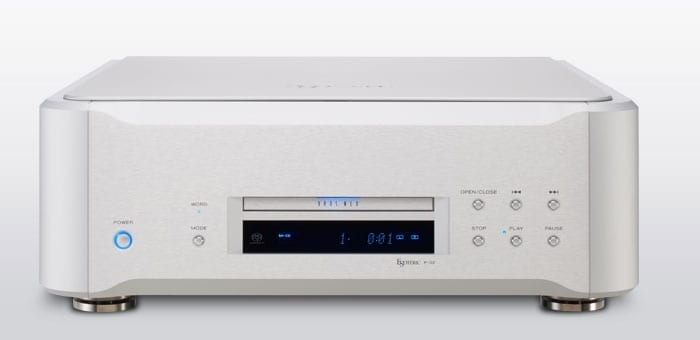

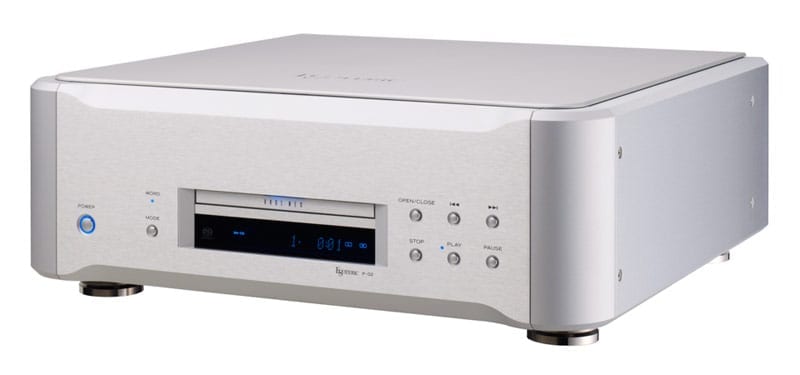

P-02X

SKU: P-02X Category:

Description

Virtually every component of the new P-02X, save its drive mechanism drive circuit and VS-DD spindle servo, has been thoroughly revised and upgraded from its P-02 base model with the goal of squeezing the Grandioso P1’s dual-chassis configuration into a single unit without compromise. Its highly regarded VRDS-NEO transport mechanism employs the same bearing design as the P1, and integrates condensed versions of the P1’s digital and clock circuitry.
P1 technology also features in the P-02X’s exceptional power supply circuitry, which is equipped with a total of four toroidal transformers providing power to the VS-DD, transport drive circuit, digital output circuitry and clock circuit. Like the P1, these circuits ensure a cleaner and more stable supply of DC power. On the operating side, the introduction of ES-LINK4 provides a wider band of digital transmission, while its advanced clock circuit achieves higher accuracy for higher sound quality.

Additional information

Brand

Compatible Disc Types Super Audio CD, CD (CD-R/CD-RW compatible)

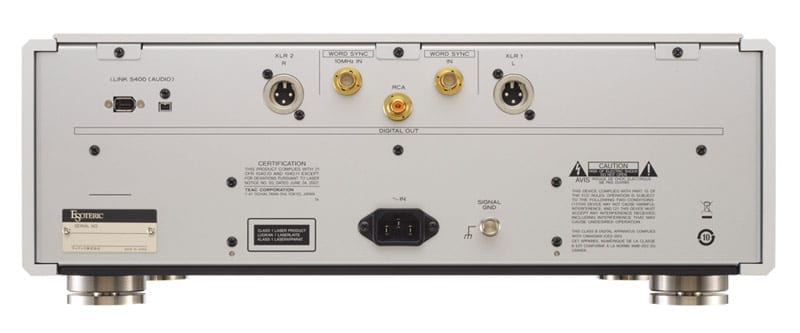

Digital Audio Outputs ES-LINK Outputs x2 (L:1/R:1)
XLR Outputs x2 (Use 2 terminals for Dual AES output)
RCA Output x1
Clock
synchronization
input format Jack BNC x 2
Clock Synchronization
Frequencies 44.1kHz, 88.2kHz, 176.4kHz, 10MHz, 22.5792MHz
Input
Impedance IN 75Ω
10MHz IN 50Ω
Input Level IN TTL levels
10MHz IN Sine wave: 0.5 – 1.0Vrms
Input Frequency Range ±10ppm
General AC Power Supply 230V, 50Hz; 120V, 60Hz; 220V, 60Hz
Power Consumption 23W
External Dimensions
(W x H x D, including
protrusions) 445mm x 162mm x 437mm
(17 5/8″ x 6 1/2″ x 17 1/4″)
Weight 31kg (68 3/8 lb)
Included Accessories Remote control unit (RC-1315) x 1
Batteries (AAA) x 2
HDMI cable x 1
Power cord set x 1
Felt pads x 4
Owner’s manual x 1
Warranty card x 1
– These products are made available in three different power supply variations, as shown in the chart above.
Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
– The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
– Specifications and appearance are subject to change without notice.
– Weight and dimensions are approximate.
