ESOTERIC has developed an original, state-of-the -art transmission format called ES-LINK4, which allows DSD and 352.8kHz/48bit PCM ultrawideband digital transmission using an HDMI cable. ES-LINK4 performs a large part of the digital signal processing on the sending side, greatly reducing the digital signal processing load on the D/A converter. In addition to ultra-wide bandwidth, we sought high sound quality through our “Pure D/A” concept, in which the D/A converter specializes in its original function of D/A conversion processing.
The D1 applies a 36-bit D/A processing algorithm that converts PCM signals to analog signals at a high resolution of 36 bits by combining several 32-bit DAC devices. The tone of the high-bit data is used for faithful analog conversion. The resolution of 32-bit encoding is 256 times higher than that of 24-bit encoding, and 36-bit encoding gives an amazing resolution level that is another 16 times higher – a total of 4,096 times higher than the resolution of 24-bit encoding. Producing even finer bit tones minimizes operational error for outstanding expression of even subtle music signals.
The clock circuit, which supplies highly accurate reference clock signals to a digital circuit, can be considered the core unit of a digital player. The clock circuit of the P1 and D1 is completely independent of other circuits, including its power source and ground, enabling pure clock signals to be supplied to the system. The voltage controlled crystal oscillator (VCXO) was developed especially for the P1 and D1 in a joint effort with Nihon Dempa Kogyo (NDK), a major manufacturer of crystal oscillators. For a high-precision custom clock device worthy of leading models, high sound quality playback is provided thanks to an extremely low level of phase noise and a crystal element that is even larger than before.

Additional information


Compatible disc types
Super Audio CD, CD (CD-R/CD-RW compatible)

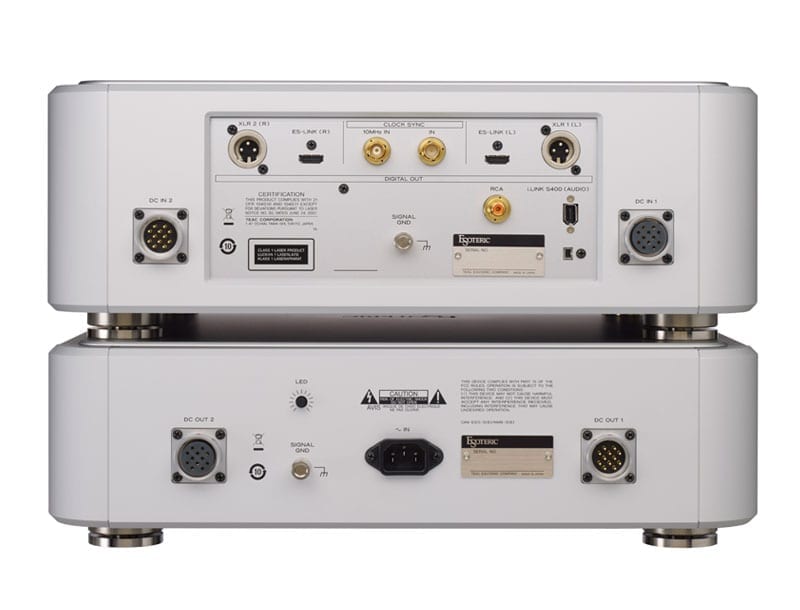

Digital audio output
ES-LINK output x 2
XLR output x 2 (Use 2 terminals for Dual AES output)
i.LINK (AUDIO) output (6-pin) x 1
i.LINK (AUDIO) output (4-pin) x 1
RCA output x 1
Clock synchronization input format
Jack BNC×2
Clock synchronization frequencies 44.1 kHz,88.2 kHz,176.4 kHz,10 MHz,22.5792 MHz
Input impedance IN 75Ω
10MHz IN 50Ω
Input level IN TTL levels
10MHz IN Sine wave: 0.5 to 1.0 Vrms
Input frequency range ±10 ppm
Power supply AC 230V 50Hz
AC 120V 60Hz
AC 220V 60Hz
Power consumption 24W
External dimensions
(W x H x D)
(Including protrusions) Main unit: 445 mm x 162 mm x 448 mm (17 1/2″ x 6 3/8″ x 17 5/8″)
Power supply unit: 445 mm x 132 mm x 452 mm (17 1/2″ x 5 1/4″ x 17 3/4″)
Weight Main unit: 27 kg (59 1/2 lbs)
Power supply unit: 24 kg (53 lbs)
Accessories Remote control unit (RC-1156) x 1, Batteries (AA) x 2, HDMI cable x 1, Power cord set x 1, Felt pads x 4, Owner’s manual x 1, Warranty card x 1
– This product is available in three different power supply variations shown in the specification section above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
– The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
