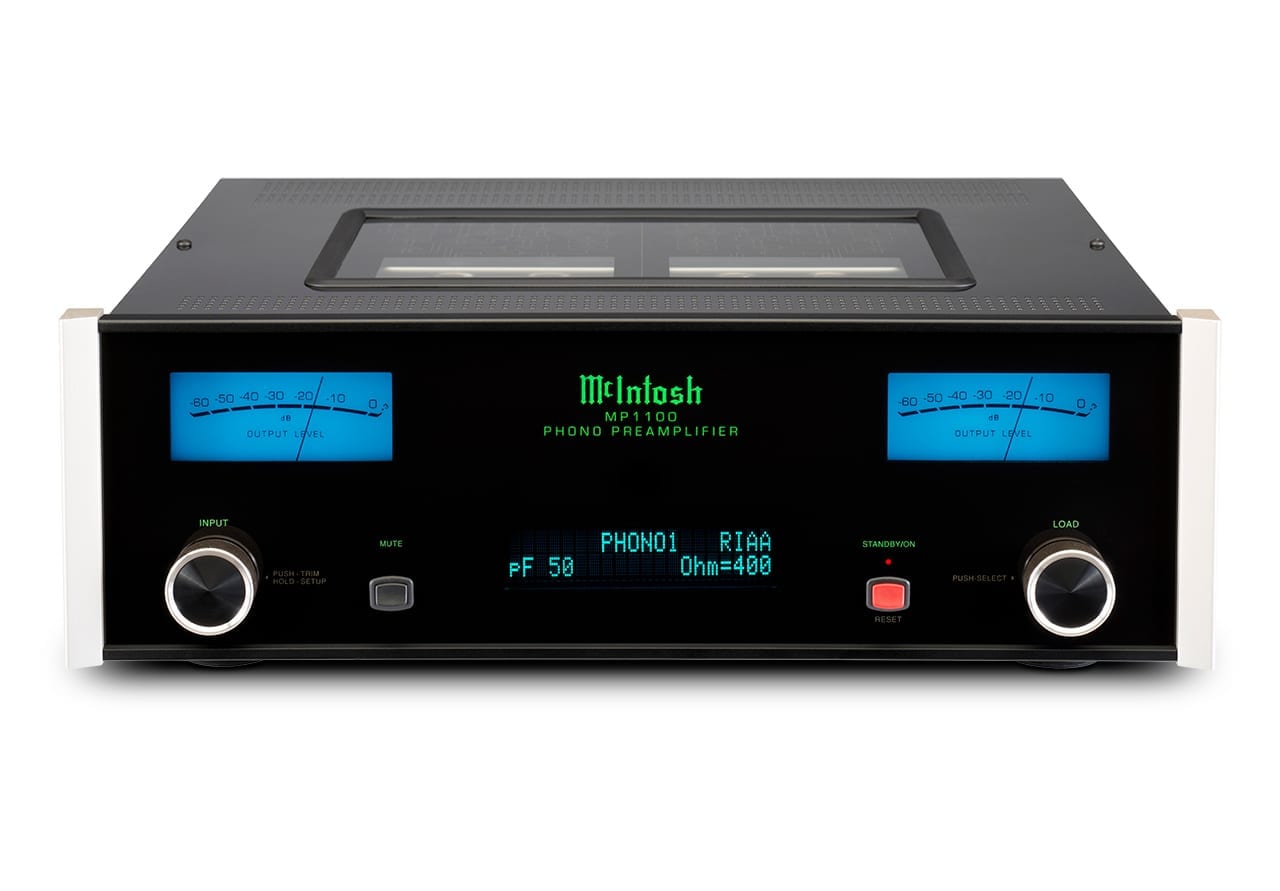

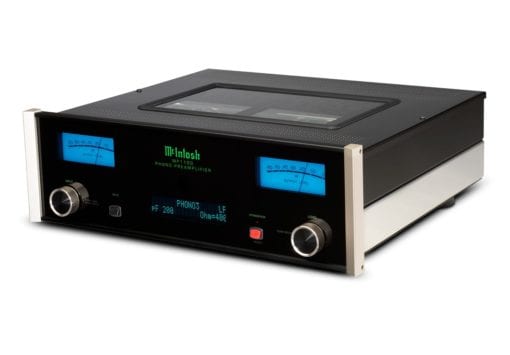

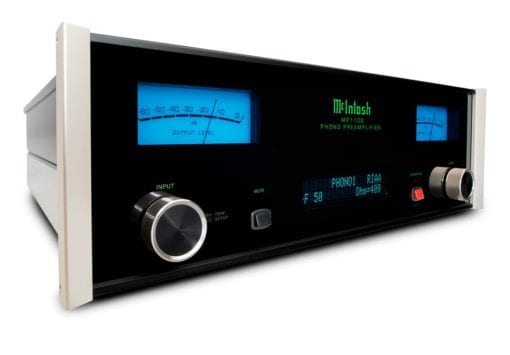

MP1100 2-CHANNEL VACUUM TUBE PHONO PREAMPLIFIER

SKU: MP1100 Categories: ,

Description

The MP1100 Vacuum Tube Phono Preamplifier will give vinyl lovers a new level of musical enjoyment and exhilaration. It’s filled to the brim with everything you need to not only play new records or pressings from the early days of vinyl, but it will also get every last musical note and nuance out of them – including some you may have never heard before.

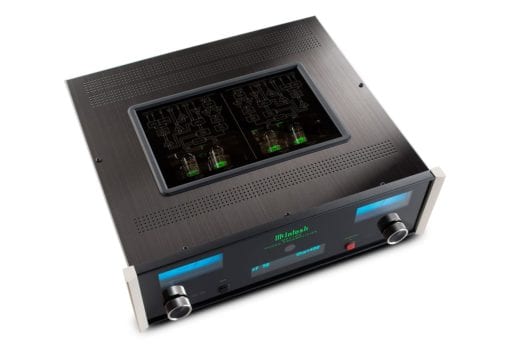

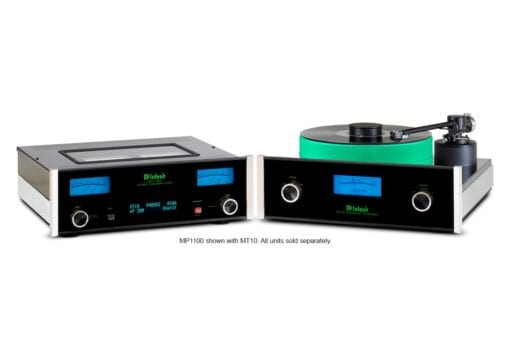

The MP1100 is designed first and foremost for analog audio and achieves our most accurate equalization ever. It utilizes four 12AX7A vacuum tubes, with 2 tubes used per channel in a fully balanced configuration – making it our very first fully balanced vacuum tube phono stage. For those with multiple turntables or tonearms, there are 3 sets of RCA phono inputs; XLR connectors are also available on 1 of the inputs. All phono inputs allow for adjusting both resistance (7 settings) and capacitance (8 settings). For ease of use, it comes pre-programmed with profiles for Moving Coil and Moving Magnet cartridges as well as the McIntosh MT10 and MT5 turntables. Five additional profiles are included that are fully customizable and can be assigned to any phono input. RIAA, LP, NAB, AES and 78 analog equalization curves are included. Two fairly rare but highly useful analog filters are built-in: a Rumble Filter helps remove noise that may have seeped into a song during the recording process; while a Scratch Filter can help restore the sound of frequently-played records that may have become a little worn, or records that may have some damage. Adjustable gain from 40dB to 64dB allows for further customization, while a Mono setting permits proper playback of mono recordings. In addition, there’s a pair each of balanced and unbalanced high level inputs for connecting other sources. For connecting to the rest of your audio system, there are a pair each of balanced and unbalanced stereo outputs.

Not to completely overlook the merits of digital audio, the MP1100 has an optical, coaxial and USB output. These digital outputs are fixed at 24-bits and can be set to either 96kHz or 192kHz. When used with a properly configured conversion program, the USB output can be used to “rip” your albums to your computer. Our digital output clipping indicator will notify you when distortion caused by loud sections in a song is being recorded to the file, allowing you to adjust your settings in order to create pristine, distortion free digital versions of your albums.

To combat noise, the MP1100 features a dual mono design with the left and right audio channels electrically and mechanically isolated from each other while the power supplies are electronically separated. It can be paired with any preamplifier, integrated amplifier or home theater processor that includes volume control. An ideal match is our C1100 Vacuum Tube Preamplifier which also has a dual mono design; both also share the same polished stainless steel and hairline brushed black Titanium stainless steel chassis to create a cohesive appearance. Classic McIntosh design cues complete the MP1100. Contact your local dealer​ to learn

Additional information

Brand

ELECTRONIC SPECIFICATIONS
TOTAL HARMONIC DISTORTION
Phono: 0.02%
High Level: 0.005%
FREQUENCY RESPONSE
+/-0.2dB from 20Hz to 20,000Hz
+0.2, -3dB from 10Hz to 50,000Hz
MAXIMUM VOLTS OUT (BALANCED / UNBALANCED)
20/10 V RMS
INPUT IMPEDANCE
Resistance: 25, 50, 100, 200, 400, 1k or 47k Ohms
Capacitance: 50, 100, 150, 200, 250, 300, 350 or 400pF
High Level (Balanced / Unbalanced): 100k Ohms / 50k Ohms
PHONO VOLTAGE GAIN
Selectable: 40dB, 46dB, 52dB, 58dB or 64dB
SIGNAL TO NOISE RATIO
Moving Coil: 80dB
Moving Magnet: 84dB
High Level: 118dB
MAXIMUM INPUT SIGNAL (MOVING COIL)
10mV
MAXIMUM INPUT SIGNAL (MOVING MAGNET)
100mV
MAXIMUM INPUT SIGNAL (BALANCED)
20V
MAXIMUM INPUT SIGNAL (UNBALANCED)
10V
SENSITIVITY PHONO (MOVING COIL)
1.25mV
SENSITIVITY PHONO (MOVING MAGNET)
10mV
SENSITIVITY (BALANCED)
4V
SENSITIVITY (UNBALANCED)
2V
RATED OUTPUT
4V Balanced
2V Unbalanced
OUTPUT IMPEDANCE
200 Ohms Balanced
100 Ohms Unbalanced
PHONO EQUALIZATION CURVES
5: RIAA, LP, NAB, AES and 78
NOISE FILTERS
2: Rumble and Scratch
PHONO PROFILES
Pre-programmed: 4
User Programmable: 5

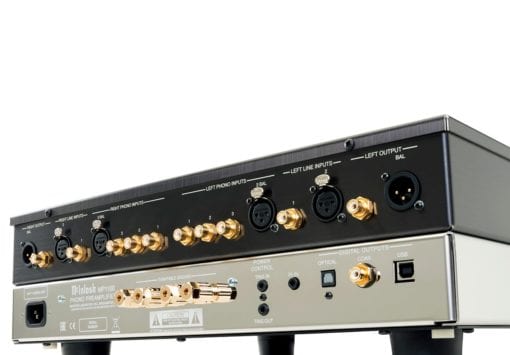

CONNECTIVITY
PHONO INPUT MOVING COIL
0
PHONO INPUT MOVING MAGNET
0
PHONO INPUT UNIVERSAL
3 (2 sets of RCA only inputs and 1 set of RCA or XLR inputs); each can be configured for either Moving Coil or Moving Magnet cartridges; all inputs adjustable
BALANCED LINE INPUT
1 Stereo
UNBALANCED LINE INPUT
1 Stereo
BALANCED FIXED OUTPUT
1 Stereo
UNBALANCED FIXED OUTPUT
1 Stereo
DIGITAL COAXIAL OUTPUT
1
DIGITAL OPTICAL OUTPUT
1
DIGITAL USB AUDIO OUTPUT
1
CONTROL
POWER CONTROL INPUT
1
POWER CONTROL OUTPUT
1
DIGITAL AUDIO SPECIFICATIONS
DIGITAL OUTPUT SAMPLE RATE
Optical: PCM – 24-bit/96kHz or 192kHz
Coaxial: PCM – 24-bit/96kHz or 192kHz
USB: PCM – 24-bit/96kHz or 192kHz
GENERAL SPECIFICATIONS
MULTI-CHASSIS OR SINGLE
Single
OUTPUT METERS
Yes
VACUUM TUBE OR SOLID STATE
Vacuum Tube, (4) 12AX7A
POWER CONSUMPTION (ON)
50 Watts
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2” (44.5cm) x 6” (15.2m) x 18” (45.7cm)
WEIGHT
26 lbs (11.8 kg)
SHIPPING WEIGHT
40 lbs (18.2 kg)
