MA352 2-Channel Hybrid Integrated Amplifier

SKU: MA352 Category:

Description

The MA352 Integrated Amplifier is a hybrid design that combines the finest of vacuum tube and solid state audio design principles. The result is an eye-catching amplifier that enjoys the best of these two opposing audio philosophies all while reproducing music at the highest quality level.

“Want valve [vacuum tube] sound with solid state power and reliability? McIntosh have a long history in both fields and bring their expertise to glorious fruition in the audacious MA352 hybrid amplifier, packed with power, glowing valves and the expansive sound they enjoy… The MA352 is an amplifier that we thought was glorious in both appearance and sound.” Named Best Hybrid Amplifier 2020. – Hi-Fi World

“The hybrid McIntosh amplifier is powerful enough to power your favorite speakers, and refined enough to make the experience memorable, no matter what kind of music you play. Highly Recommended.” – Lyd & Bilde

An all analog design, the MA352 has a vacuum tube preamplifier section that is powered by a pair of 12AX7A and a pair of 12AT7 vacuum tubes; its output stage is a direct coupled solid state amplifier that outputs 200 Watts per channel into 8 Ohm speakers or 320 Watts per channel into 4 Ohm speakers – enough power to properly drive virtually any set of loudspeakers. Dual scale blue Watt meters give an accurate readout of power output for both speaker impedances.

“The quality of the sound never falters. The MA352 remains stunningly clear and detailed with loads of power to spare. With the MA352’s impressive 0.03% THD and IMD, you’ll be hard pressed to find any distortion even at window shaking volume.” – Tone Audio

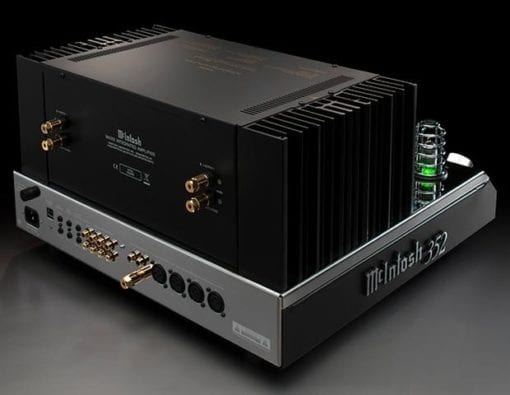

The MA352 has 2 balanced and 3 unbalanced inputs plus 1 Moving Magnet phono input with adjustable loading for connecting a turntable. It has gold-plated speaker binding posts to help prevent corrosion and ensure a quality signal is sent over your speaker cables to your speakers. A stereo preamplifier output is available for connecting a higher-powered amplifier; it can also be used to connect 1 or 2 powered subwoofers for added low frequency performance.

“There’s a sense of confidence in the amplifier’s effortlessness in terms of its power capabilities and its handling of music, how it functions and its overall execution. It offers a rounded set of features. It’s solidly built and assembled. It looks gloriously attractive. Finally, and most importantly, it plays music to very high standards of dynamic realism, tonal accuracy and sheer listenability.” – SoundStage Australia

The MA352 is packed with numerous McIntosh technologies including:

  • Our patented Power Guard® technology that monitors the output signal for over driving and makes real time micro adjustments to the input signal to prevent harsh sounding clipping that could potentially damage your speakers
  • Our fuse-less short-circuit protection circuit Sentry Monitor™ that will disengage the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
  • McIntosh Monogrammed Heatsinks™ which are connected to advanced high current output transistors that minimize thermal equilibrium lag (or warm-up) time
  • High Drive headphone amplifier with Headphone Crossfeed Director (HXD®)
  • A 5-band analog tone control allows for manual adjustment of your favorite recordings (each band adjustable by ± 12dB)
  • Home Theater Pass Through lets it be seamlessly integrated into a home theater system
  • Power Control to send power on/off signals to connected McIntosh components for easy system power up and shutdown
  • Data Ports to send remote control commands to connected source components

The MA352 “allows you to experience music to the fullest by letting the dynamics and all the energy, as well as the subtleties and slightest nuances, be expressed freely. The width of the soundstage, balance of the frequency ranges, precision of the timbres, impact of the lows and clarity of the highs: the McIntosh MA352 combined all of these qualities with ease, no matter the style of music we listened to.” – Son-Vidéo

The MA352 has “everything it takes to become an instant classic.” – Audio Review

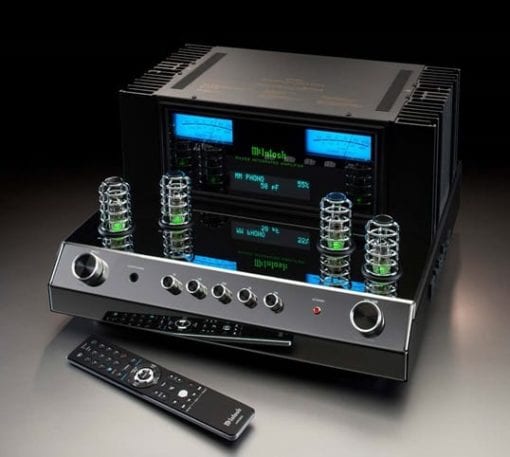

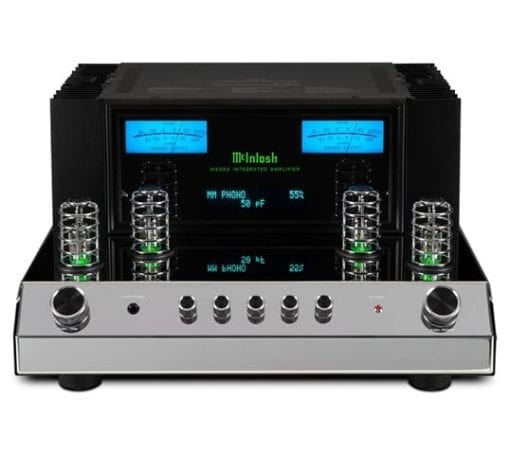

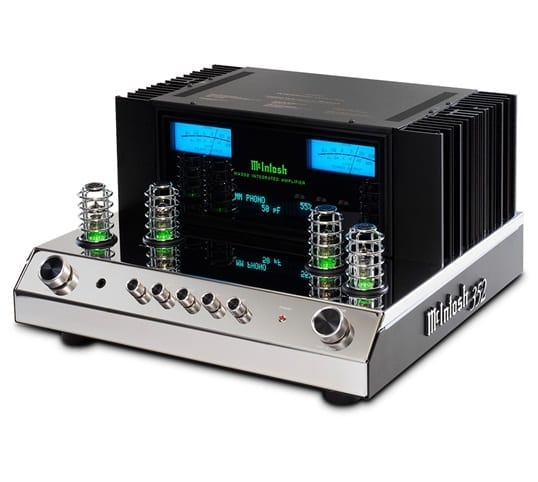

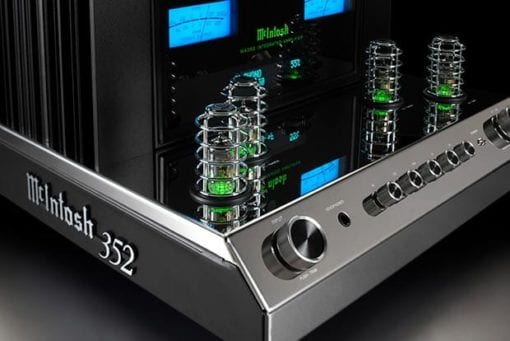

The unit sits on a stainless steel chassis polished to a mirror finish; vintage McIntosh-styled die cast aluminum name badges are affixed to each side. Blue output meters, control knobs, an illuminated logo, and a black glass front panel with direct LED backlighting complete the unit. It can be paired with an assortment of CD players, turntables, tuners, media streamers and speakers to complete your home audio system.

Additional information

Brand

ELECTRONIC SPECIFICATIONS

  • Power Output per Channel
    200 Watts into 8 Ohms
    320 Watts into 4 Ohms
  • Number of Channels
    2
  • Speaker Impedance
    4 or 8 Ohms
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.03%
  • Dynamic Headroom
    1.5dB
  • Frequency Response +0,-0.5dB
    20Hz to 20kHz
  • Frequency Response, +0, -3dB
    10Hz to 100kHz
  • Sensitivity Phono (Moving Coil)
    N/A
  • Sensitivity Phono (Moving Magnet)
    2.5mV
  • Sensitivity High Level (Balanced / Unbalanced)
    0.5V/0.25V
  • Sensitivity (Power Amp input)
    N/A
  • Signal To Noise Ratio (Moving Coil)
    N/A
  • Signal To Noise Ratio (Moving Magnet)
    82dB
  • Signal To Noise Ratio (High Level)
    93dB
  • Signal To Noise Ratio (Power Amp input)
    N/A
  • Input Impedance (Balanced / Unbalanced)
    20K/20K
  • Damping Factor
    8 Ohms: >200
    4 Ohms: >100
  • Maximum Output (Balanced / Unbalanced)
    8V Unbalanced

CONNECTIVITY

  • Balanced Input
    2
  • Unbalanced Input
    3
  • Phono Input Moving Coil
    0
  • Phono Input Moving Magnet
    1 (adjustable loading)
  • Upgradeable Digital Audio Module
    No
  • Digital Coaxial Input
    0
  • Digital Optical Input
    0
  • Digital MCT (DIN) Input
    0
  • Digital USB Input
    0
  • HDMI (ARC) Input
    0
  • Balanced Variable Output
    0
  • Unbalanced Fixed Output
    0
  • Unbalanced Variable Output
    1
  • Headphone Output
    1/4″ High Drive with Headphone Crossfeed Director (HXD®)
  • Subwoofer Output
    2
  • AM/FM Tuner option
    No
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Standard
  • Speaker Binding Post Type
    Standard
  • Service Port
    1

DIGITAL AUDIO SPECIFICATIONS

  • Digital-to-Analog Converter (DAC) Type
    N/A
  • Digital Coaxial Input Sample Rate
    N/A
  • Digital Optical Input Sample Rate
    N/A
  • Digital MCT (DIN) Input Sample Rate
    N/A
  • Digital USB Input Sample Rate
    N/A

CONTROL

  • Tone Controls
    5-Band
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1
  • Rear Panel Data Port
    2
  • Rear Panel IR Sensor Input
    Yes
  • Input Level Match
    Yes

GENERAL SPECIFICATIONS

  • Vacuum Tube or Solid State
    Preamplifier: Vacuum Tube
    Power Amplifier: Solid State
  • Output Type
    Direct Coupled
  • Output Meters
    Yes
  • Dual Layer Chassis
    Yes
  • Chassis Finish
    Polished stainless steel
  • McIntosh Monogrammed Heatsinks™
    Yes
  • Power Requirement
    120V 50/60Hz, 6.0A
  • Standby Power Requirement
    <0.5 Watts

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    17-1/2″ (44.5cm) x 9-7/8″ (25.1cm) x 20-1/2″ (52.1cm)
  • Weight
    66 lbs (29.9 kg)
  • Shipping Weight
    75 lbs (34.0 kg)
