K-01X

SKU: K-01X Category:

Description

Four years after the release of the K-01—the world’s leading all-in-one digital player—the new K-01X debuts as a more compact version of Esoteric’s flagship Grandioso model. Utilizing the same type of highly rigid chassis construction as the Grandioso and a similar four-transformer power supply, it integrates the Grandioso P1’s high-precision VRDS-NEO “VMK-3.5-20S” turntable with two independent monaural DAC units derived from the Grandioso D1 design, each configured with a parallel array of 8 individual converters, which are summed to optimize linearity and minimize noise.

Electronic circuitry has also been further improved with the latest technologies, including a new AK4495S DAC IC, an advanced 35-bit D/A processing algorithm, an HCLD buffer amp, a DSD-compatible USB interface, and a large, low phase noise clock, all ensuring the K-01X achieves the absolute pinnacle of sound quality.

Additional information

Brand

Compatible disc types Super Audio CD, CD (CD-R/CD-RW compatible)

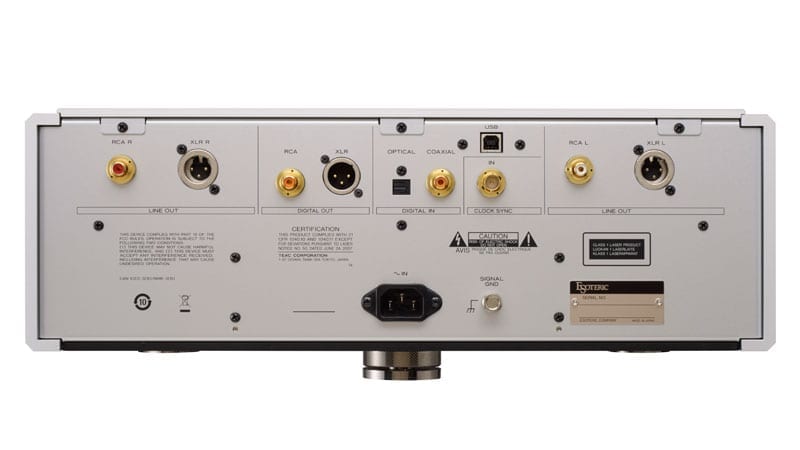

Analog audio output Jacks XLR jacks (2 channel) x 1
RCA jacks (2 channel) x 1
Output impedance XLR: 40Ω
RCA: 10Ω
Maximum output leve
(1 kHz, full scale, 10 k ohms) XLR (Gain: 0 dB): XLR: 4.8Vrms
RCA: 2.4Vrms
Frequency response 5Hz to 40kHz (-3dB))
Signal-to-noise ratio (S/N) 117dB
Total harmonic distortion 0.0006% (1kHz)
Digital audio output Coaxial RCA jack x 1 0.5 Vp-p/75 ohms
Digital audio input Coaxial RCA connector x 1 (input impedance 75 ohms)
Optical digital connector x 1 -24.0 to -14.5 dBm peak
USB port B connector USB 2.0 / 192 kHz-24 bit async.
Clock synchronization input format Jack BNC
Input impedance 75 ohms
Input level Rectangle wave: equivalent to TTL levels
Sine wave: 0.5 to 1.0 Vrms/50 to 75 ohms
GENERAL
Power supply Power supply EUROPE AC 230 V, 50 Hz
USA/CANADA AC 120 V, 60 Hz
KOREA AC 220 V, 60 Hz
Power consumption 27 W
External dimensions
(W x H x D) 445 x 162 x 438 mm (17 1/4″ x 6″ 3/8 x 13 1/4″) (including protrusions)
Weight 31 kg (68 3/8 lbs)
Accessories Remote control unit (RC-1315) x 1
Batteries (AA) x 2
Power cord set x 1
Felt pads x 3
Owner’s manual x 1
Warranty card x 1
