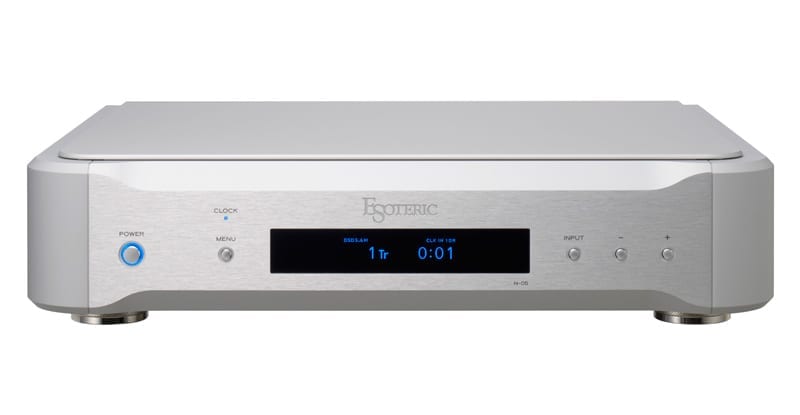

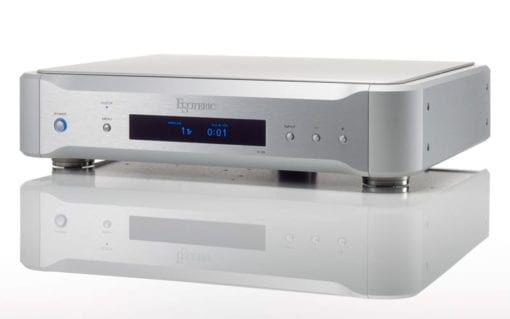

N-05

SKU: N-05 Category:

Description

Total sound quality without compromise.
This has been Esoteric’s core philosophy since its birth in 1987.
Now this zeal for excellence extends to the highest quality in music streaming,
pushing Esoteric to develop a new network audio player –
one that offers listeners supreme ease in their musical enjoyment.
From DSD high-resolution masters to reacquaintances with old classics lying hidden
for years in a corner of your CD library, all can be instantly accessed from your
giant music library, and all from the comfort of your listening seat.
Passion and pride invested in advanced technology and exquisite craftsmanship
support high quality you can rely on.
Let the N-05 bring you closer still to the music you love, and lead you to a more
complete sense of musical enjoyment.
Onward to the future of musical reproduction.

Additional information

Brand

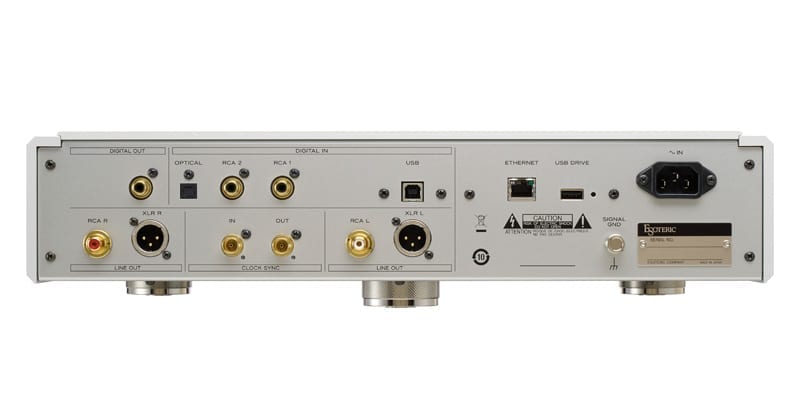

Digital Audio Inputs RCA Connectors 2
Input Level 0.5Vp-p
Input Impedance 75Ω
Input Signal Formats 32 – 192kHz, 16 – 24-bit Linear PCM (IEC 60958), DSD (DoP)
Optical Digital
Connector 1
Input Level -24.0 to -14.5dBm (peak)
Input Signal Formats 32 – 192kHz, 16 – 24-bit Linear PCM (IEC 60958), DSD (DoP)
USB Port 1 (Type B)
Input Signal Formats 44.1 – 384kHz, 16 – 32-bit Linear PCM, 2.8/5.6/11.2MHz DSD
Ethernet Port 1000BASE-T
Input Signal Formats 44.1 – 384kHz, 16 – 32-bit Linear PCM, 2.8/5.6MHz DSD
Supported File
Formats DSD Lossless: DSF, DSDIFF (DFF), DoP
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed Audio: MP3, AAC (m4a container)
USB Storage
Device Port 1 (Type A) FAT32; USB 2.0 or faster recommended
Digital Audio Output RCA Connectors 1
Output Level 0.5Vp-p (into 75Ω load)
Output Impedance 75Ω
Output Signal Formats 44.1 – 192kHz, 16 – 24-bit Linear PCM (IEC 60958 format), DSD (DoP format)
Clock Sync Input BNC Connectors 1
Input Frequencies (±15 ppm) 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 10MHz, 22.5792MHz, 24.576MHz
Input Impedance 75Ω
Input Level Rectangle wave: TTL level equivalent
Sine wave: 0.5 to 1.0Vrms (50 – 75)
Clock Sync Output BNC Connectors 1
Output Level TTL level equivalent (into 75Ω)
Output Frequencies 44.1kHz, 88.2kHz, 176.4kHz, 48kHz, 96kHz, 192kHz, 22.5792MHz, 24.576MHz
Equivalent to input frequency (at through output)
Clock Sync Output BNC Connectors 1
Output Level TTL level equivalent (into 75Ω)
Output Frequencies 44.1kHz, 88.2kHz, 176.4kHz, 48kHz, 96kHz, 192kHz, 22.5792MHz, 24.576MHz
Equivalent to input frequency (at through output)
Analog Audio Outputs XLR Connectors 1pair (L/R)
Output Impedance 20Ω
Maximum Output Level
(at 1kHz, 10kΩ load) 5.0Vrms
RCA Connectors 1pair (L/R)
Output Impedance 20Ω
Maximum Output Level
(at 1kHz, 10kΩ load) 2.5Vrms
Frequency Response (192kHz PCM) 5Hz – 70kHz (-3dB)
S/N Ratio 117dB
Distortion 0.0007% (1kHz)
General AC Power Supply 230V, 50Hz / 120V, 60Hz / 220V, 60Hz
Power Consumption 18W
External Dimensions
(W x H x D, including protrusions) 445mm x 107mm x 356mm
(17 5/8″ x 4 1/4″ x 14 1/8″)
Weight 11kg (24 3/8 lb)
Included Accessories Power cord x 1
Owner’s manual x 1
