SKU: 96102 Category:


Using state-of-the-art wireless technology, the JLINK  TRX system delivers pure, high-fidelity sound throughout your home, invisibly and effortlessly.
By broadcasting at an ultra-high frequency of 2.4 GHz, the JLINK™ TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between. Now you can send crystal clear, stereo sound from a source unit to a receiver, preamp or powered loudspeakers, wirelessly, up to 100 feet away (30 meters) without needing to route or hide long expanses of signal cables. RCA-type input/output connectors are compatible with most audio equipment and a compact design makes it easy to hide the transmitter and receiver chassis out of sight. A JLINK  port is also included on the receiver for direct connection with JLINK  compatible JL Audio products.
Especially useful in system designs that include remote source applications, lengthy signal cable runs or demanding installations due to challenging architecture, the JLINK  TRX system gives you the freedom to position a source unit or outlying amplifier/powered loudspeakers (subwoofer or full-range) almost anywhere you would like.
Outstanding fidelity in subwoofer and full-range applications
Bit-Perfect Digital PCM Stereo Wireless Technology (16 bit / 48 kHz)

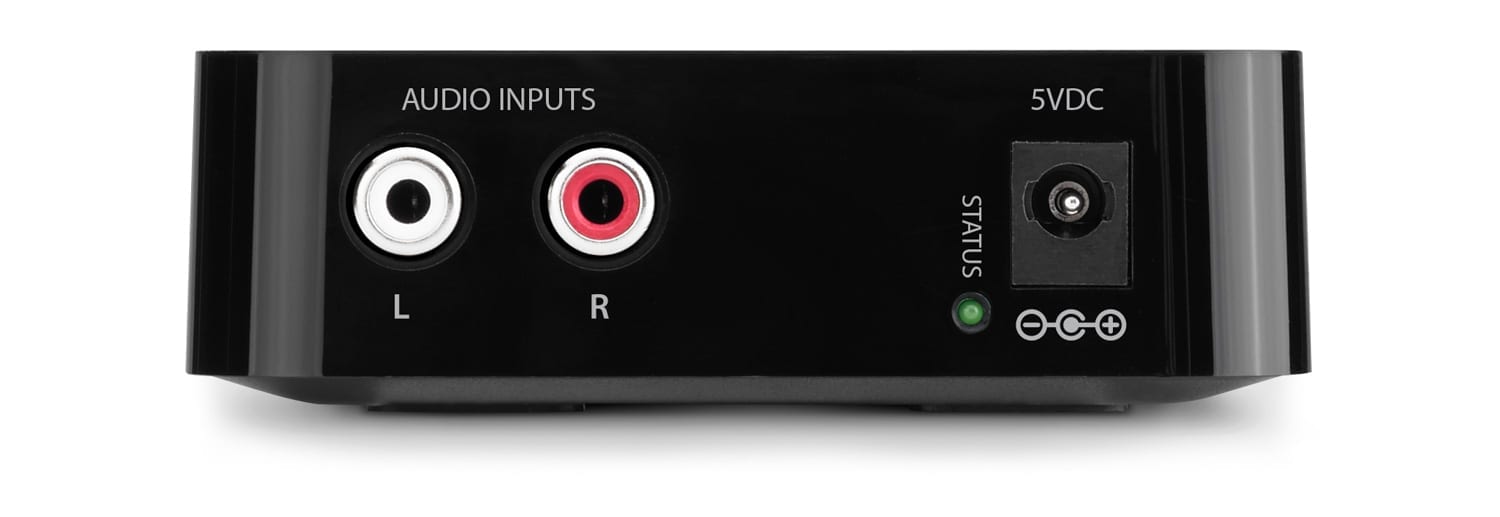

RCA-type input/output connectors are compatible with most audio equipment
Up to 3 JLINK  transmitters can be used concurrently (3 channels to choose from)
Up to 4 JLINK  receivers (sold separately) can be paired to each JLINK  transmitter
Receiver includes JLINK  port for use with compatible JL Audio products.

Additional information


S/N Ratio 80 dB   1 kHz, 500 mV
THD+N 0.02%   1 kHz, 500 mV
Crosstalk >75 dB  1 kHz, 500 mV
Frequency Response 16 Hz – 22 kHz (+0, -1dB)
Wireless Range 100 feet / 30 meters (typical)
Wireless Channels 3 available, selectable via switch
Latency 14 mS
Operating Temperature 32 to 104 °F / 0 to 40 °C
AC Power Adaptor 1 A, 5 volts DC
