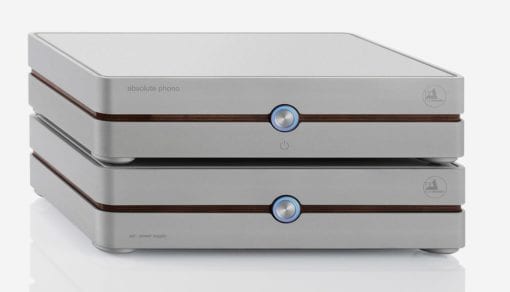

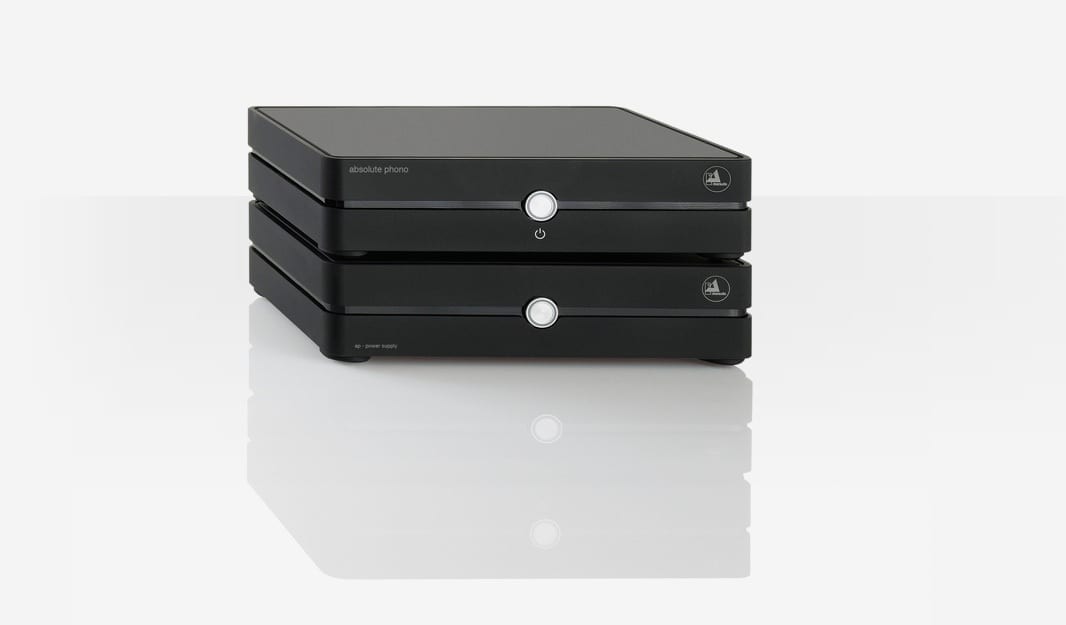

ABSOLUTE PHONO

Category:

Description

A tiny circuit board installed in the headshell of the tonearm amplifies the highly sensitive output signal from the cartridge at its source. As a result, the signal to noise ratio is improved by approximately ten decibels across the entire audio bandwidth.

Additional information

Brand

POWER SUPPLY Switching power supply
Input: 50 – 60 Hz / 100 – 265 V AC
SIGNAL TO NOISE RATIO 90 dB (A-weighted)
CHANNEL SEPARATION 100 dB
GAIN ( 1KHZ) 60 dB
THD < 0,001 %
OUTPUT IMPEDANCE 64 Ohm (balanced XLR)
32 Ohm (unbalanced RCA)
EQUALISATION RIAA standard, deviation less than 0.1 dB
FREQUENCY RESPONSE DC – 100 kHz
INPUT Clearaudio XLR connector
OUTPUT CONNECTIONS Unbalanced (RCA phono)
Balanced (XLR)
PIN CONFIGURATION; OUTPUT XLR
Pin 1 = GND (Shield)
Pin 2 = Hot (+)
Pin 3 = Cold (-)
POWER CONSUMPTION Consumption in operation: 3.2 Watt
Off mode: 0.0 Watt
TOTAL WEIGHT 3.25 kg (Preamplifier)
3.20 kg (Power supply)
DIMENSIONS (W/D/H in inches) Headshell amplifier: 0.37 x 0.81 x 0.13
Phonostage: 9.5 x 5.7 x 2.2
Power Supply: 9.5 x 5.7 x 2.2
DIMENSIONS (W/D/H in mm) Headshell amplifier: 9.5 x 20.6 x 3.2
Phonostage: 240 x 145 x 56
Power Supply: 240 x 145 x 56
