Fathom IWS-SYS-1

SKU: IWS-SYS-1 Category:

Description

In-Wall Subwoofer System with Single 13.5-inch Subwoofer Driver, 1000 watts

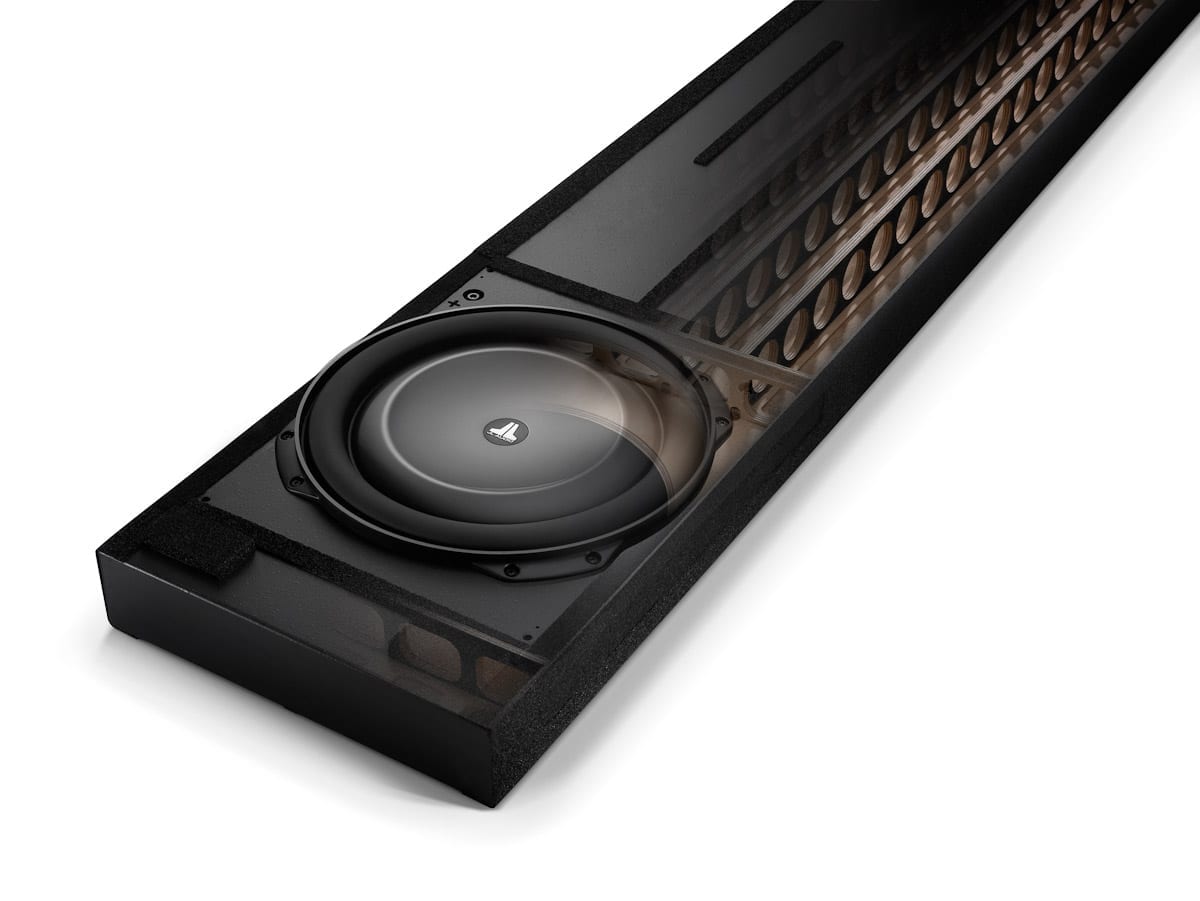

The same minds that engineered JL Audio’s reference-grade Fathom and Gotham powered subwoofers have created an amazing in-wall subwoofer solution, centered on a purpose-engineered, thin-line driver with patented technology.

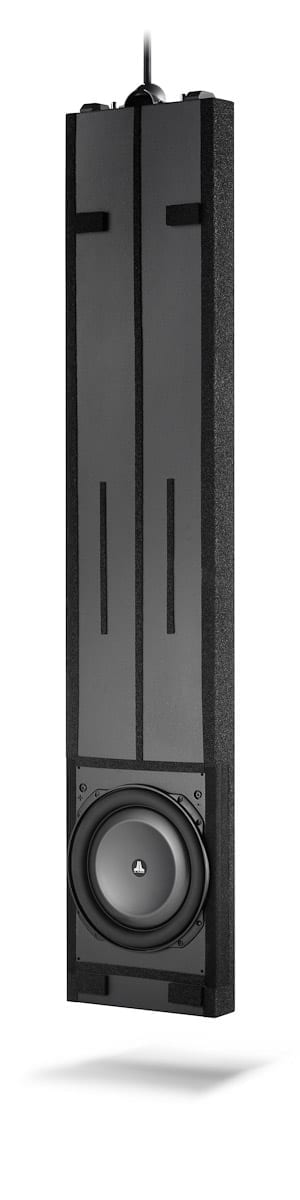

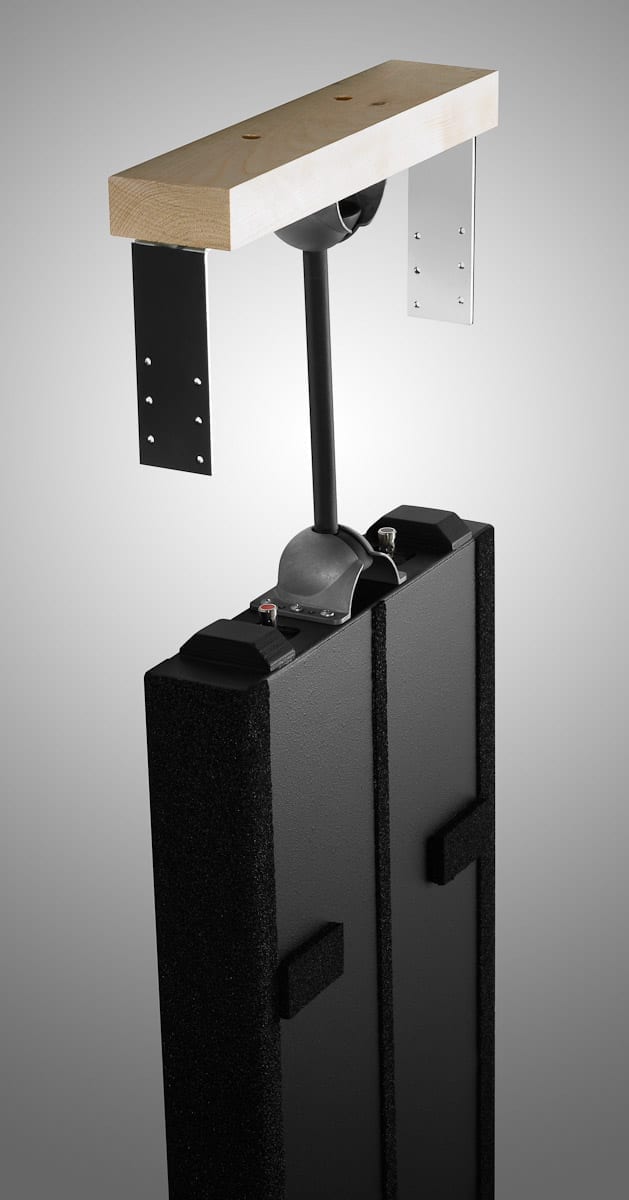

Housing this exotic driver is a critically engineered enclosure with a unique floating mount design to minimize wall excitation. The enclosure features extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness.

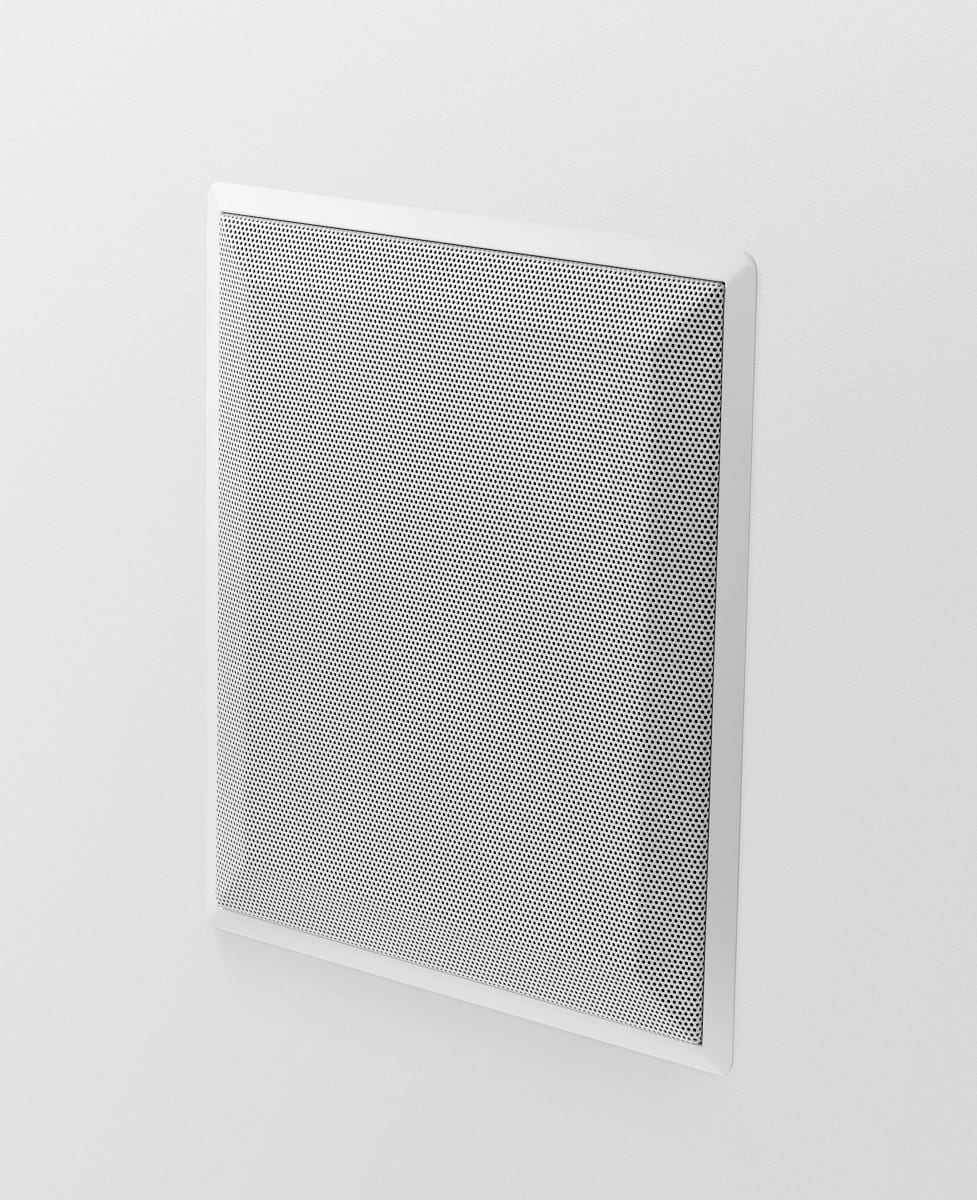

A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in a system.

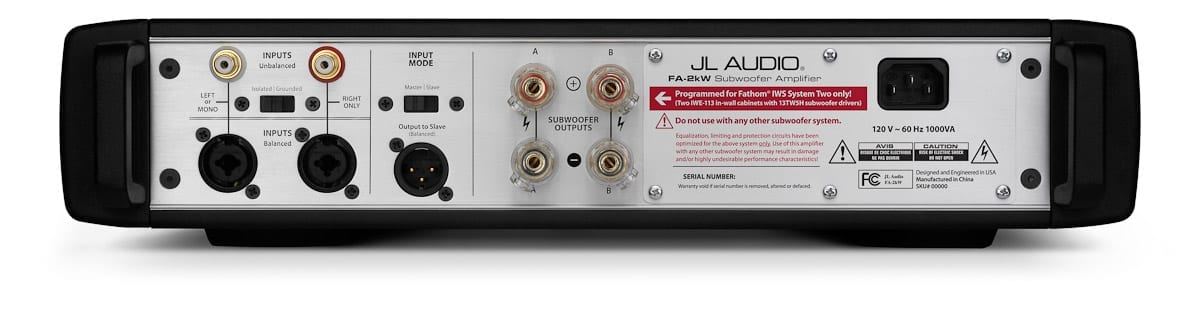

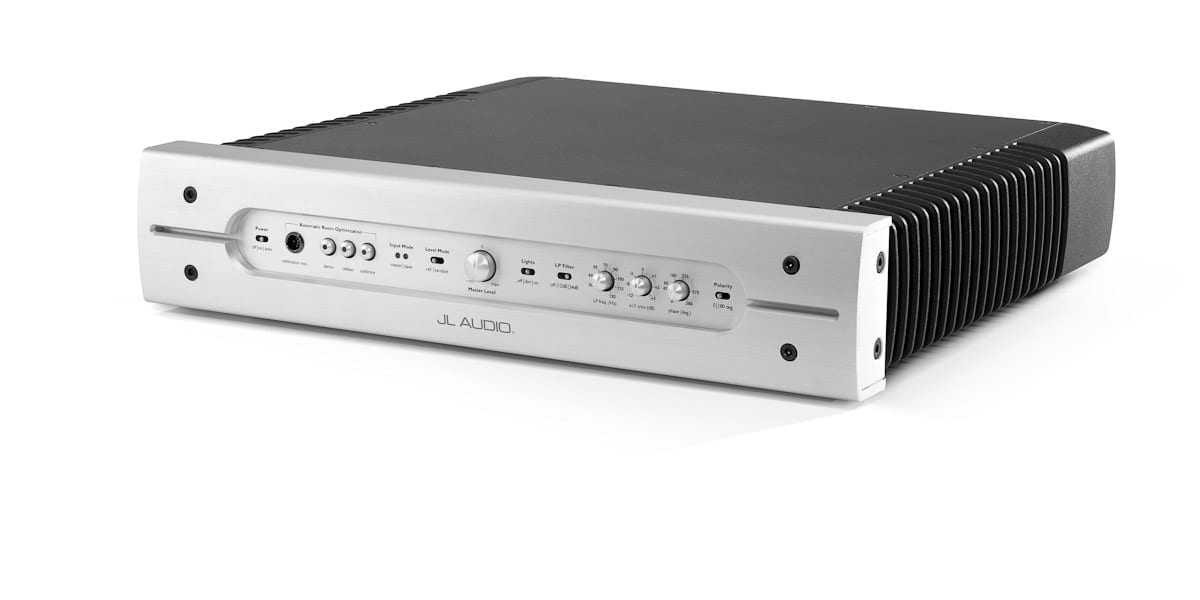

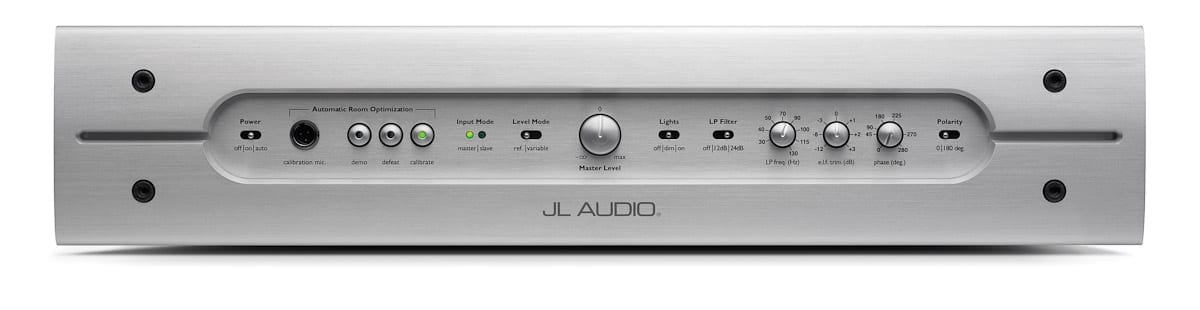

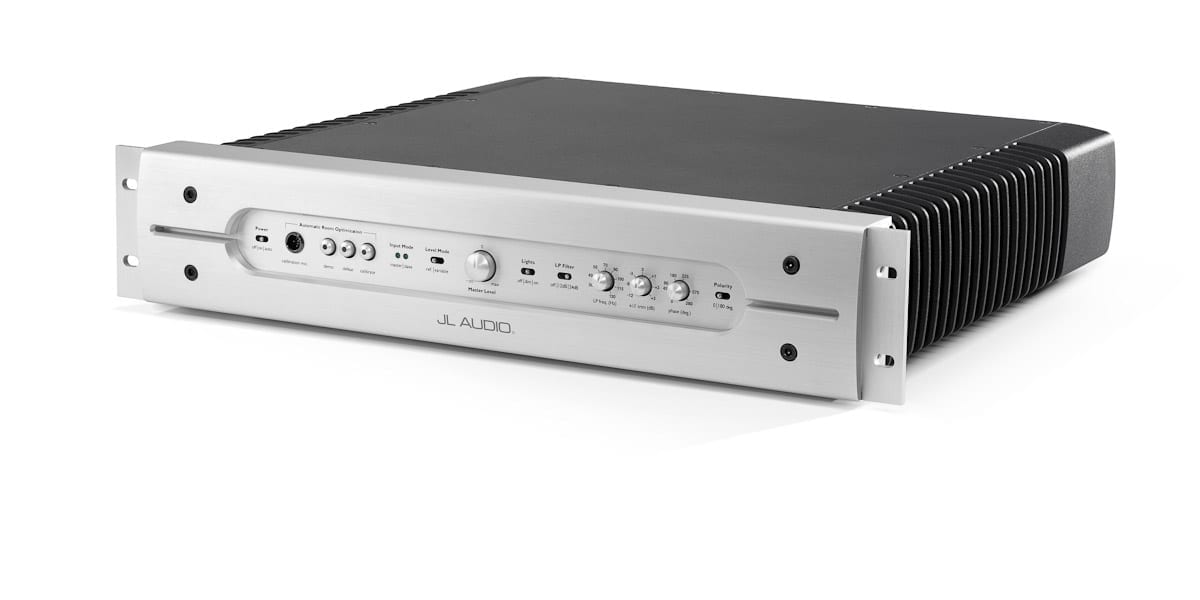

The IWS System One is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 1 kW of clean power, and armed with serious processing features, including our acclaimed Automatic Room Optimization system.
There is no need to lower your expectations when selecting this remarkable in-wall solution… it’s a real Fathom.
The IWS System One is available to fit a variety of 2″ x 4″ and 2″ x 6″ wall studs. Consult your Authorized JL Audio Dealer for specific application information.
Enclosure Finish: Flat Black (hidden from view when installed)
Grille finish: Primer White (paintable)
Enclosure Construction: CNC-Cut Birch Plywood

Additional information

Brand

General Specifications
Enclosure Type Sealed
Enclosure Finish Black Texture-Coated
Frequency Response (Anechoic) 26 Hz – 101 Hz (± 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz
Effective Piston Area (Sd) 98.26 sq in / 0.0634 sq m
Effective Displacement 147.3 cu in / 2.41 L
Amplifier Power 1000 W RMS short-term
Power Mode(s) Off, On or Automatic (Signal-Sensing)
Light Modes N/A
Signal Processing
Unbalanced Inputs Stereo or Mono (two RCA jacks)
Balanced Inputs Stereo or Mono (two female XLR jacks)
Speaker/High-Level Inputs N/A
Input Grounding Isolated or Grounded
Input Modes Master or Slave
Level Control Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
Filter Mode(s) Low-Pass
Filter Slope(s) 12/24 dB/octave
Filter Frequency Range 30 Hz – 130 Hz
Filter Defeat Function Yes
Polarity 0 or 180 degrees
Phase Variable, 0- 270 degrees, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) Trim Variable, -12 dB to +3 dB at 23 Hz
Line Outputs N/A
Output to Slave Balanced (one male XLR jack)
Calibration Mode Automatic Room Optimization (A.R.O.), incudes laboratory-grade microphone
