C-02x

SKU: C-02x Category:

Description

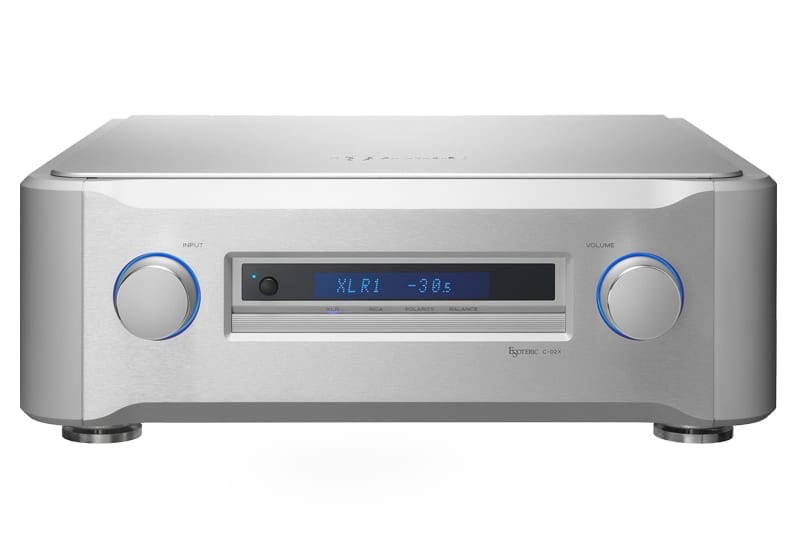

The preamplifier is a crucial component that determines the ‘sound’ of an audio system, and represents the passion and commitment of its makers. As the crowning achievement of the Esoteric Sound, the Grandioso C1 opened new horizons for ‘Made in Japan’ preamplifiers. Now, this expressive power gives birth to the next-generation C-02X; a stereo preamplifier created to transcend the concept of high fidelity and resonate with the refined sensibilities of engineers and musicians alike.

Additional information

Brand

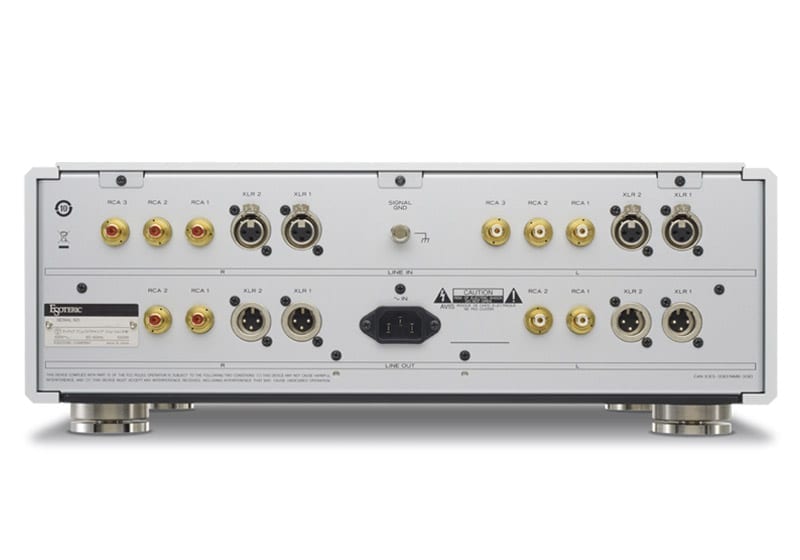

Analog audio output
Connectors RCA x 3 pairs (RCA 2 can be used as an AV pre-input)
XLR x 2 pairs
Input impedance LINE :10kΩ
Input sensitvity 510mV (at rated output)
200mV (at 800mV output)
Maximum input level 12V
Analog audio output Jacks XLR jacks x 2 pairs
RCA jacks x 2 pairs
Output impedance XLR: 47Ω
RCA: 100Ω
Maximum output leve
(1 kHz, full scale, 10 k ohms) XLR: 15Vrms
RCA: 7.5Vrms
Frequency response 1Hz to 200kHz (-3dB))
3Hz – 50kHz (-0.2dB)
Signal-to-noise ratio (S/N) 116dB
Total harmonic distortion 0.0006% (RCA)
0.0004% (XLR)
General Power supply USA/CANADA AC 120 V, 60 Hz
Power consumption 21 W
External dimensions
(W x H x D) 445 x 162 x 457 mm (17 5/8″ x 6″ 1/2 x 18″) (including protrusions)
Weight 32 kg (70 5/8 lbs)
Accessories Remote control unit (RC-1315) x 1
Batteries (AAA) x 2
Power cord set x 1
Felt pads x 4
Owner’s manual x 1
Warranty card x 1
