XR50 BOOKSHELF LOUDSPEAKER SYSTEM

SKU: XR50 Category:

Description

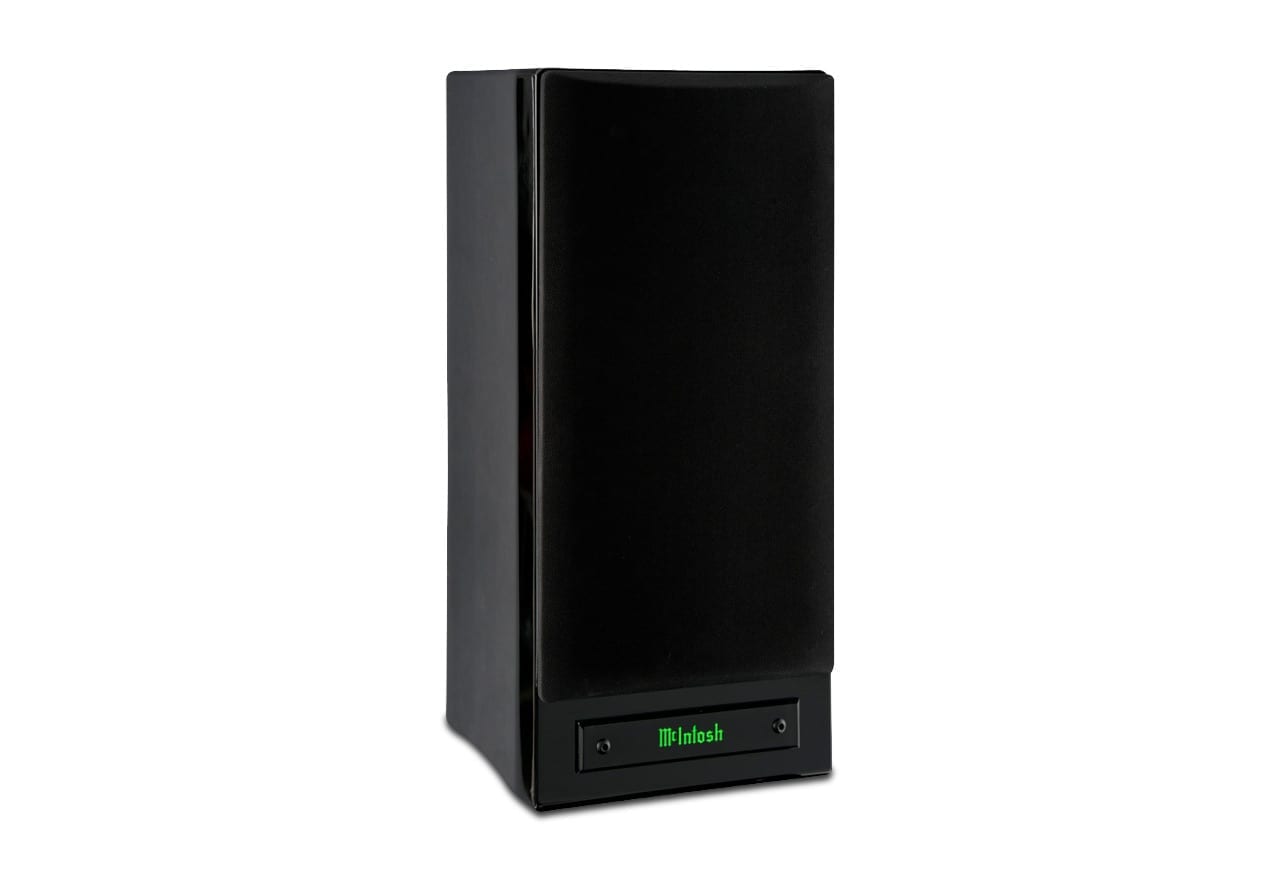

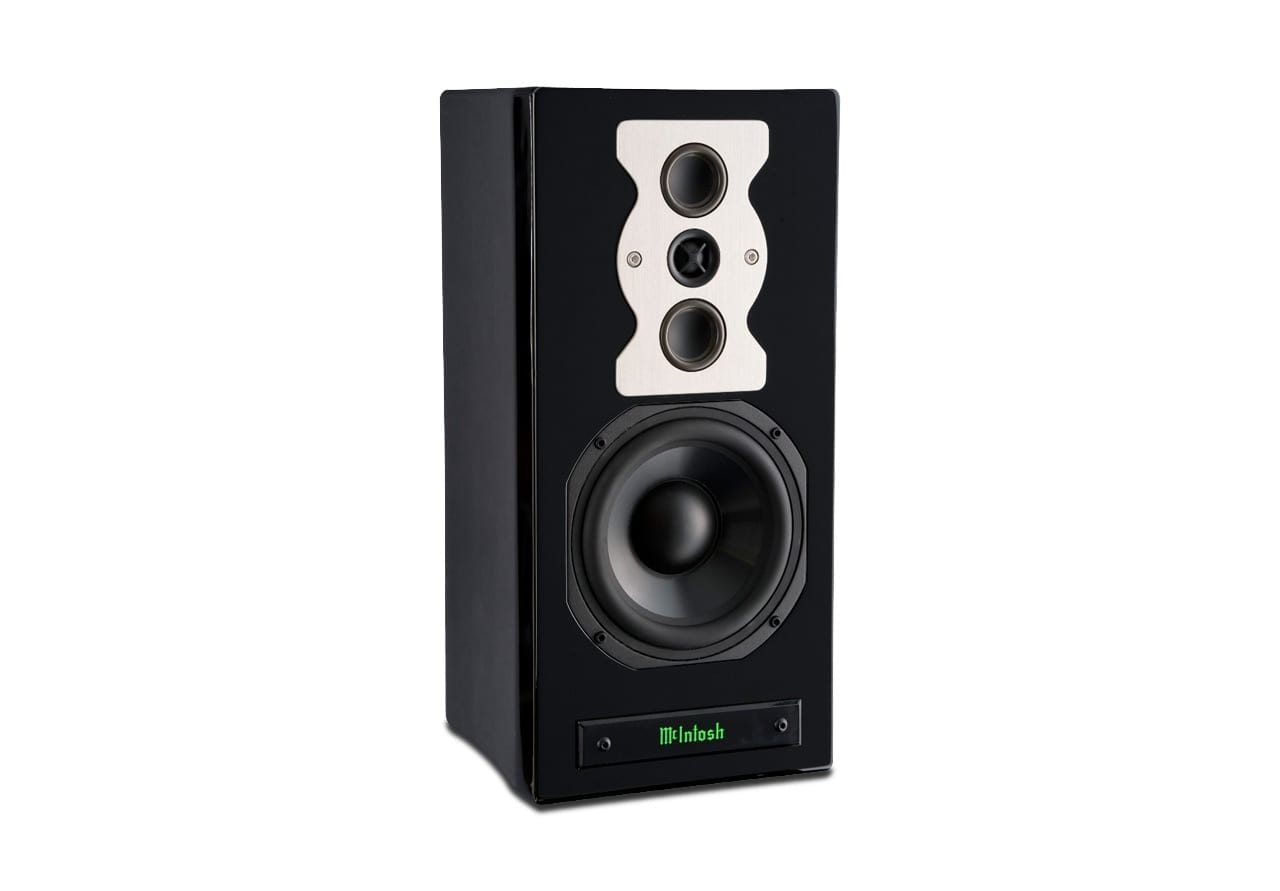

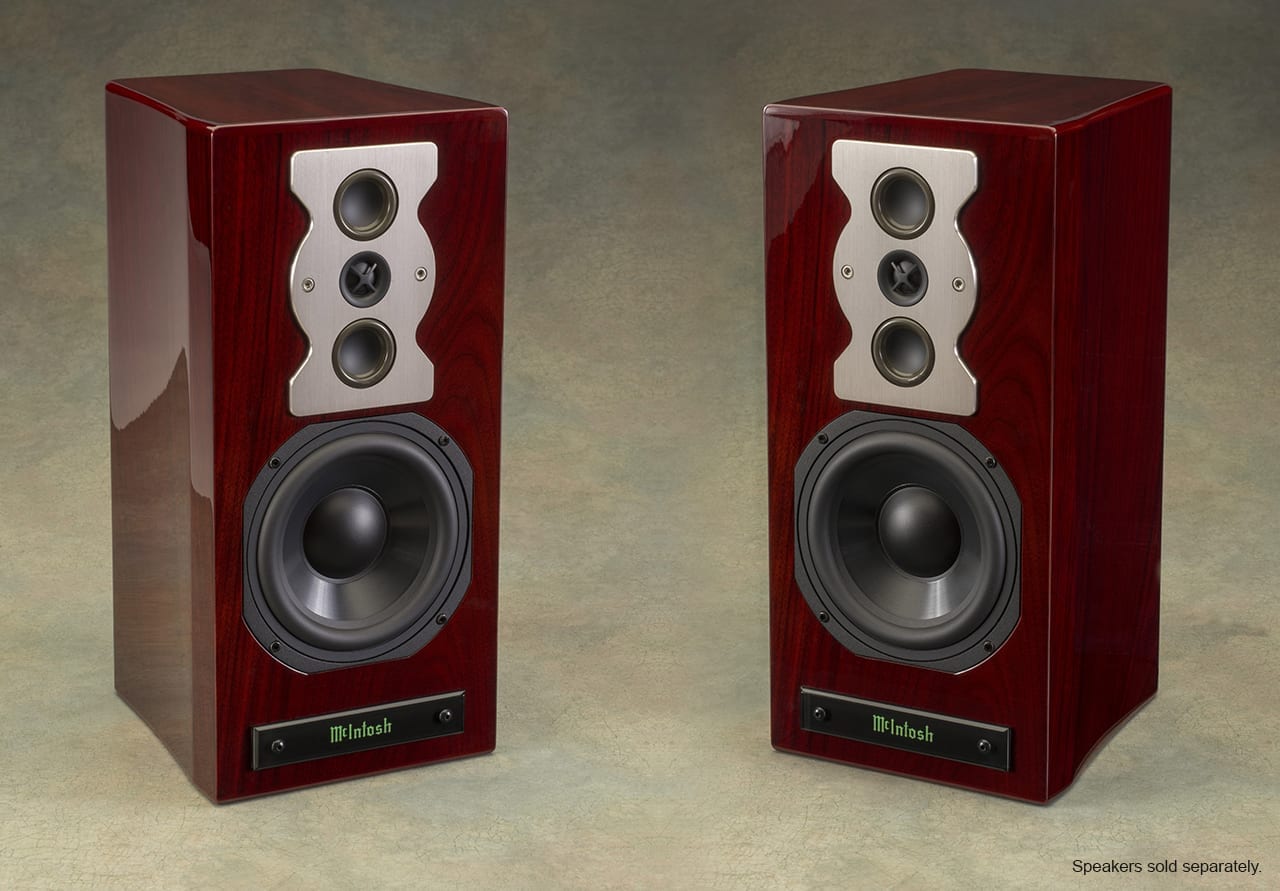

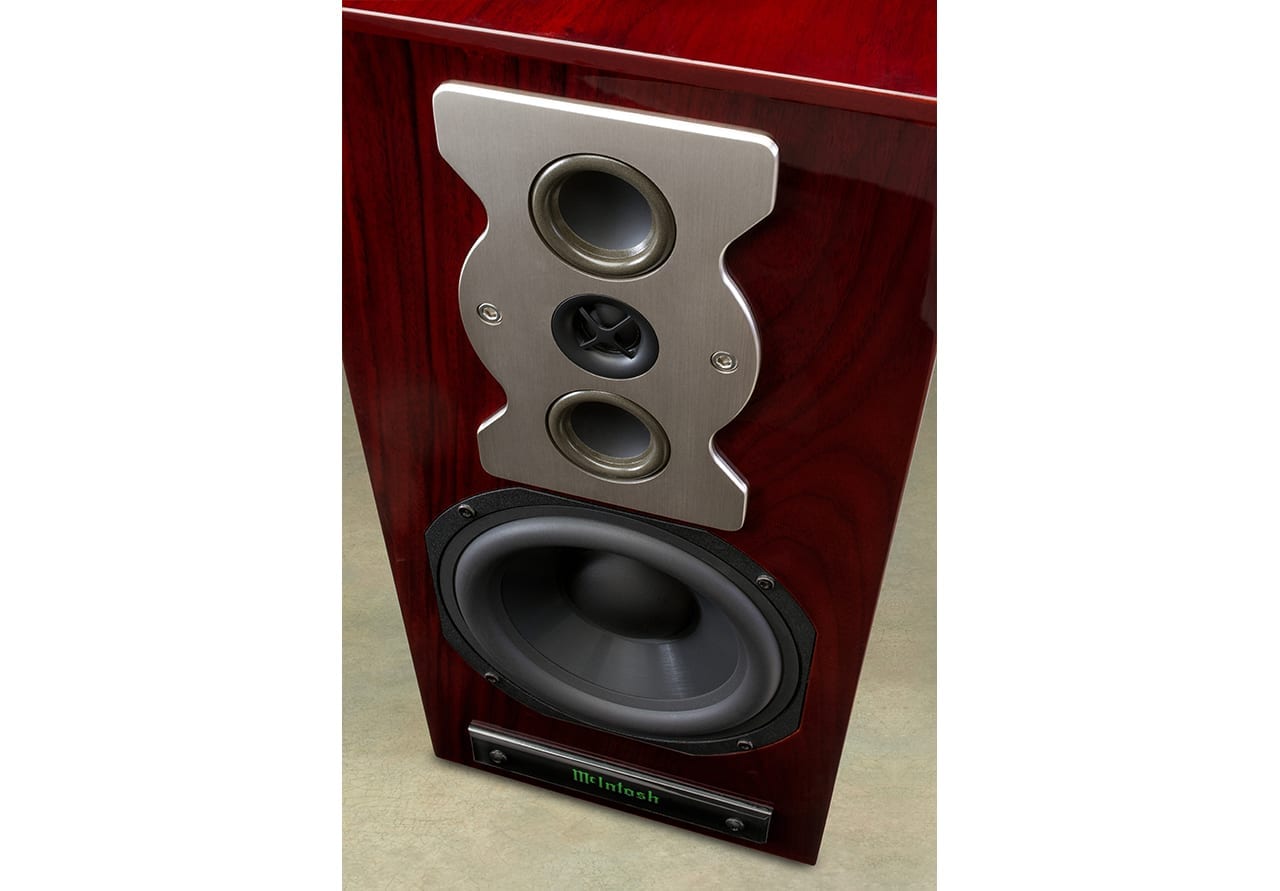

XR50 is a cleverly engineered compact bookshelf speaker that produces the rich, full sound one would expect from much larger speakers. Fine gloss wood finishes are offered in Black and Red Walnut. The magnetically attached grill is acoustically transparent and covered with a neutral black cloth. Unique front panel McIntosh logo may be illuminated when used with McIntosh components.

“Killer compact speakers with power and joy of playing.” – Lyd & Bilde​

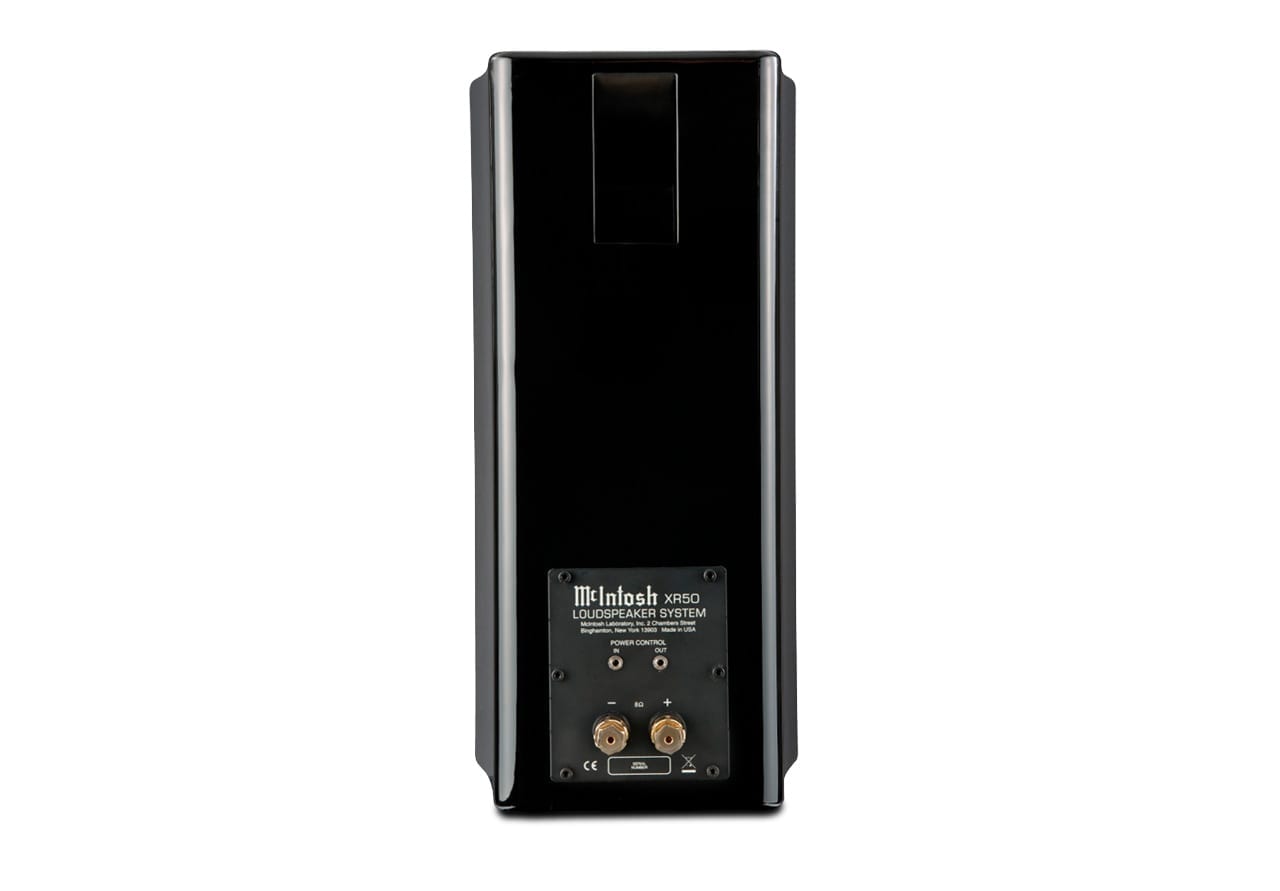

Amplifiers from 75 to 300 watts are appropriate power for XR50. An additional connection passes on Meter Illumination Control for compatible power amplifiers. When connecting the XR50 3-way bookshelf speaker to an amplifier, it is important to use cables of adequate size so that there is no signal loss. This bookshelf speaker can be used in both music and home theater systems.

Additional information

Brand

ELECTRONIC SPECIFICATIONS
IMPEDANCE NOMINAL
8 Ohms
POWER RATING
75 to 300 Watts
FREQUENCY RESPONSE
40Hz to 45kHz
SOUND PRESSURE LEVEL, 2.8V/1M
81dB
CROSSOVER
500Hz, 8kHz
DRIVER SPECIFICATIONS
NUMBER OF WOOFERS
1
WOOFER SIZE
6″
WOOFER TYPE
Cast Frame, LD/HP®, Poly Cone
NUMBER OF MIDRANGES
2
MIDRANGE SIZE
2″
MIDRANGE TYPE
Inverted Titanium Dome
NUMBER OF TWEETERS
1
TWEETER SIZE
3/4″
TWEETER TYPE
Titanium Dome
GENERAL SPECIFICATIONS
SYSTEM TYPE
Ported 3-Way Bookshelf
GRILLE
Black knit cloth, magnetically attached
AVAILABLE FINISHES
Red Walnut, Black
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
8″ (20.3cm) x 17″ (43cm) x 11-3/4″ (29.85cm)
WEIGHT
19.5 lbs (8.9 kg)
SHIPPING WEIGHT
25 lbs (11 kg)
