XR100 Floor Standing Loudspeaker System

SKU: XR100 Category:

Description

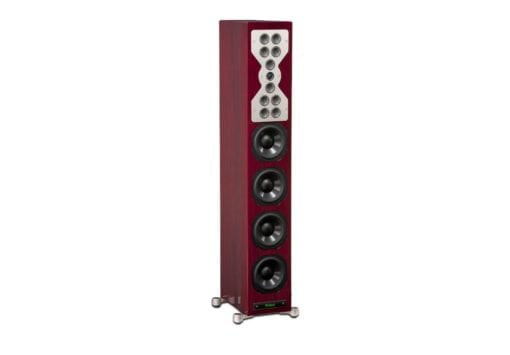

XR100 floor standing loudspeaker is sleek and contemporary in appearance while producing full range audio reproduction typical of much larger cabinet designs. Fine gloss wood finishes are offered in Black, Pear Maple, and Red Walnut (shown). The magnetica​lly attached grill is acoustically transparent and covered with neutral black cloth. Unique front panel McIntosh logo may be illuminated when configured with a McIntosh system. Spikes and furniture glide feet are included. Amplifiers from 75 to 600 watts are appropriate power for XR100 speakers.

Additional information

Brand

ELECTRONIC SPECIFICATIONS
IMPEDANCE NOMINAL
8 Ohms
POWER RATING
75 to 600 Watts
FREQUENCY RESPONSE
30Hz to 45kHz
SOUND PRESSURE LEVEL, 2.8V/1M
87dB
CROSSOVER
300Hz, 2kHz, 8kHz
DRIVER SPECIFICATIONS
NUMBER OF WOOFERS
4
WOOFER SIZE
6″
WOOFER TYPE
Cast Frame, LD/HP®, Poly Cone
NUMBER OF MIDRANGES
10
MIDRANGE SIZE
2″
MIDRANGE TYPE
8 Inverted Titanium Dome Midranges covering 300Hz to 2kHz, and 2 Inverted Titanium Dome Midrange-Tweeters covering 2kHz to 8kHz
NUMBER OF TWEETERS
1
TWEETER SIZE
3/4″
TWEETER TYPE
Titanium Dome
GENERAL SPECIFICATIONS
SYSTEM TYPE
Ported 4-Way Floor Standing
GRILLE
Black knit cloth, magnetically attached
AVAILABLE FINISHES
Red Walnut, Black, Pear Maple
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
8″ (20.3cm) x 51″ (129.5cm) x 18-1/2″ (46.9cm) (including cables and connectors)
WEIGHT
68.5 lbs (31.1 kg)
SHIPPING WEIGHT
83 lbs (37.6 kg)
