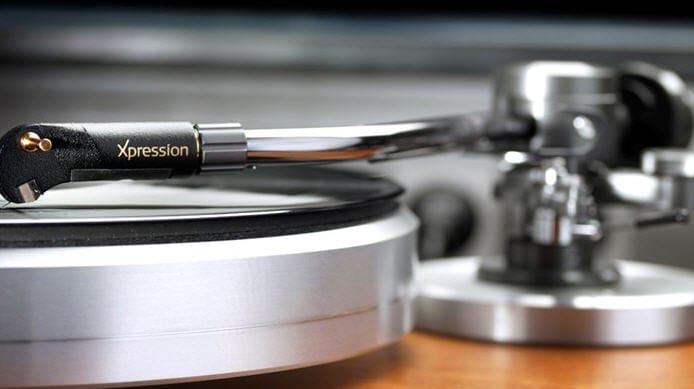

The state of the art product, the Ortofon Xpression represents a combination of three elements very characteristic for Ortofon
The cutting edge SLM materials technology pioneered by the MC A90 and SPU 90th Anniversary
Modification of the generator system introduced with the MC A90 and the MC Windfeld
Ortofon design tradition
| Brand |
|---|
Output voltage at 1000 Hz, 5cm/sec. – 0,3 mV
Channel balance at 1 kHz – < 0,2 dB
Channel separation at 1 kHz – > 28 dB
Channel separation at 15 kHz – > 22 dB
Frequency response – 20 Hz-20.000 Hz +0.5 /- 1.5 dB
Tracking ability at 315Hz at recommended tracking force – 90 µm
Compliance, dynamic, lateral – 11 µm/mN
Stylus type – Special polished Nude Ortofon Replicant 100 on Boron Cantilever
Stylus tip radius – r/R 5/100 µm
Tracking force range – 2.3 -2.8 g (23-28 mN)
Tracking force, recommended – 2,6 g (26 mN)
Tracking angle – 23°
Internal impedance, DC resistance – 4 Ohm
Recommended load impedance – > 10 Ohm
Cartridge body material – SLM Stainless Steel and Special proprietary TPE-compound
Cartridge colour – Black
Cartridge weight – 28 gram
