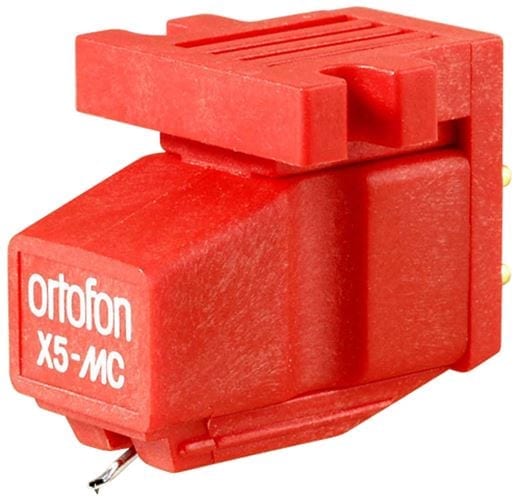

X5-MC

Category:

Description

The X5-MC features a highly polished nude Fritz Gyger (FG) 70 diamond. The FG 70 diamond resolves a very high level of detail, and can track even the highest frequency groove modulations.

The X5-MC has a 2 mV output, which although high enough to be used with moving magnet phono preamps, preserves the delicacy and accuracy that moving coil cartridges are known for.

Additional information

Brand

X5-MC Technical data

Output voltage at 1000 Hz, 5cm/sec. – 2 mV
Channel balance at 1 kHz – < 2 dB Channel separation at 1 kHz – > 25 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-45.000 Hz
Frequency response – 20-20.000 Hz + 3 / – 1,5 dB
Tracking ability at 315Hz at recommended tracking force – > 60 µm
Compliance, dynamic, lateral – 13 µm/mN
Stylus type – Nude FG 70
Stylus tip radius – r/R 5/70 µm
Equivalent stylus tip mass – 0,75 mg

Tracking force range – 1,8-2,2 g (18-22 mN)
Tracking force, recommended – 2 g (20 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 80 Ohm
Recommended load impedance – 47 kOhm / < 500 pF
Cartridge body material – Noryl
Cartridge colour – Red
Cartridge weight – 4,1 g
