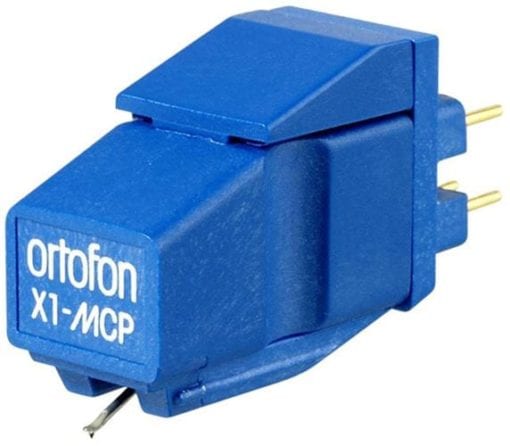

The X1-MCP is a very high output moving coil (MC) cartridge with an elliptical stylus profile for use with P-Mount (T4P) type tonearms.
Perfect for inbuilt phono preamps or standard moving magnet (MM) preamps, the X1-MCP profiled a taste of the linearity and precision of moving coils without the need for additional high gain preamps or transformers.
| Brand |
|---|
X1-MCP Technical data
Output voltage at 1000 Hz, 5cm/sec. – 2 mV
Channel balance at 1 kHz – < 2 dB Channel separation at 1 kHz – > 22 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-25.000 Hz
Frequency response – 20-20.000 Hz + 4 / – 1,5 dB
Tracking ability at 315Hz at recommended tracking force – > 60 µm
Compliance, dynamic, lateral – 13 µm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 µm
Equivalent stylus tip mass – 0,75 mg
Tracking force range – 1,25-1,50 g (12,5-15,0 mN)
Tracking force, recommended – 1,25 g (12,5 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 80 Ohm
Recommended load impedance – 47 kOhm / < 500 pF
Cartridge body material – Noryl
Cartridge colour – Blue
Cartridge weight – 6 g
