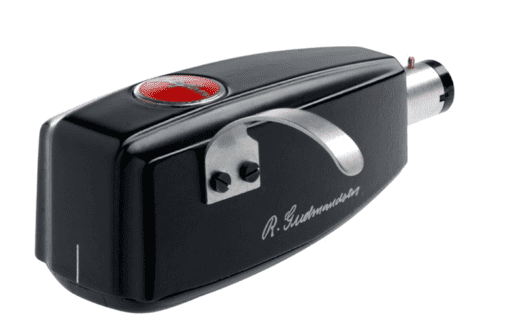

SPU Meister

Category:

Description

The new features for this cartridge, again fully respecting the original concept, involved a wooden box of noble tree – a dedication from Mr. Gudmandsen to the owner of the cartridge. An important new technical data was a raise in output of about 75%, by introducing the Neodymium magnetic circuit. Further the very pure 7-Nines copper was now used for the armature windings.

A key SPU feature is an integrated headshell, designed to mount directly into classic tonearms with detachable headshells – tonearms such as the SME 3009 and 3012, and other tonearms with similar “universal” tonearm mounts. Quite simply, there is no finer complement to a classic tonearm with a detachable headshell than an Ortofon SPU.

SPU Meister features Mr. Robert Gudmandsen signature printed in both A and G-models.

Additional information

Brand

SPU Meister Technical data

Output voltage at 1000 Hz, 5cm/sec. – > 0,32 mV
Channel balance at 1 kHz – 1 dB
Channel separation at 1 kHz – 20 dB
Frequency response – 20-20.000 Hz
Tracking ability at 315Hz at 4 gram – 70 µm
Compliance, dynamic, lateral – 8 µm/mN
Stylus type – Nude Elliptical
Stylus tip radius – R/r 18/8 µm
Equivalent stylus tip mass – 1 mg

Tracking force range – 3,0-5,0 g (30-50 mN)
Tracking force, recommended – 4,0 g (40 mN)
Tracking angle – 20°
Internal resistance – 1,5 Ohm
Recommended load impedance – > 10 Ohm
Cartridge body material – Wood
Cartridge colour body/shielld – Black
Cartridge weight – 32 g
