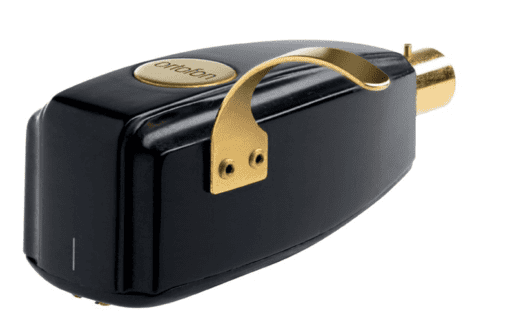

SPU Gold



SPU Gold has truly outstanding sound reproduction qualities. It delivers a transparent, open and detailed midrange and a full-bodied bass. Its stereo imaging lets the listener experience the music in front of his speakers.

To obtain all the benefits of SPU Gold’s superb performance capabilities, however, it is essential that correct mounting be achieved. The tonearm used must be as rigid as possible with a minimum of resonance.

Additional information


SPU Gold Technical data

Output voltage at 1000 Hz, 5cm/sec. 0,2 mV
Channel balance at 1 kHz – 1 dB-
Channel separation at 1 kHz – 25 dB
Frequency response – 20-20.000 Hz +/-1,5 dB
Tracking ability at 315Hz lateral – 65 µm
Tracking force range – 3 – 5 g (30-50 mN)
Compliance, dynamic, lateral – 8 µm/mN
Stylus type – True Elliptical
Stylus tip radius – r/R 6/17 µm
Equivalent stylus tip mass – 0.45 mg

Tracking angle – 20°
FIM distortion at recommended tracking force DIM 45.542 – < 1% Internal impedance, DC resistance per channel – 3 Ohm Recommended load impedance – > 10 Ohm
Cartridge colour – Gold/Black
Cartridge weight, complete with headshell – 32 g
