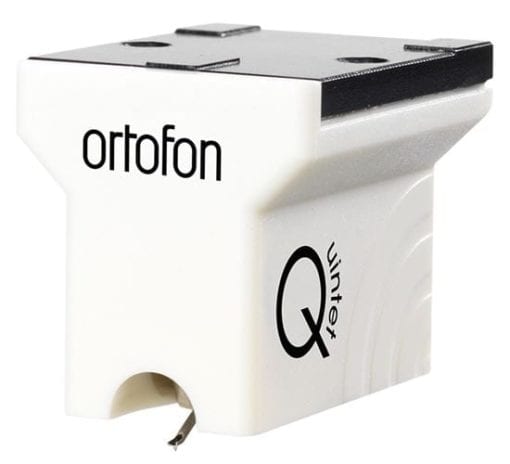

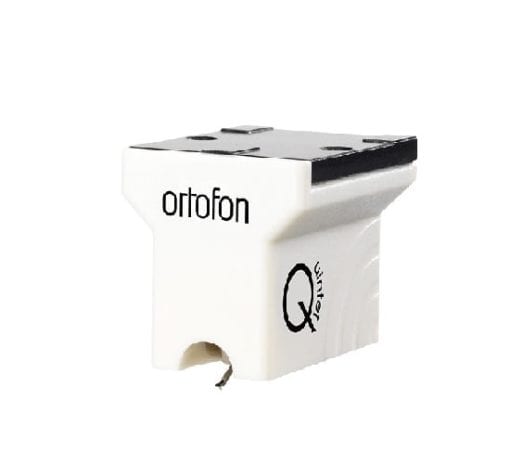

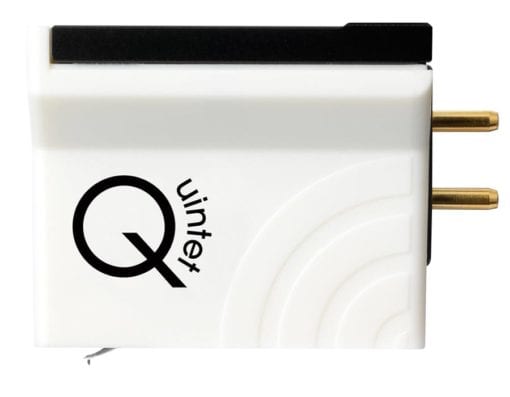

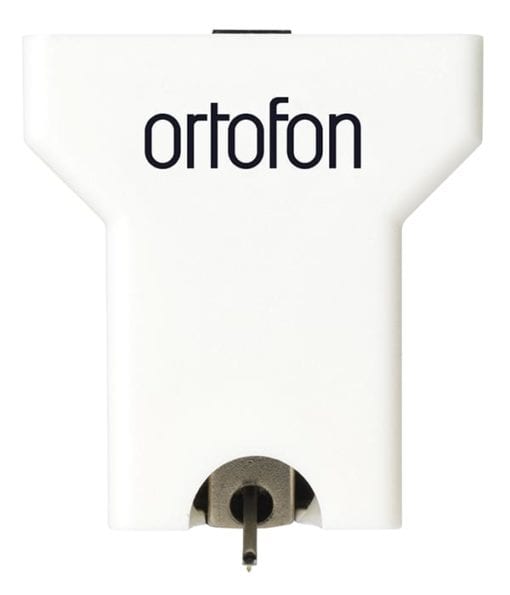

Quintet Mono

Category:

Description

It features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.

Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Additional information

Brand

Output voltage at 1 kHz 5 cm/sec – 0.3 mV
Frequency range at -3 dB – 20-25.000 Hz
Frequency response 20 Hz – 20 kHz – +/-2.0 dB
Tracking ability at 315 Hz at recommended tracking force *) – 70 μm
Compliance, dynamic, lateral – 15 μm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 μm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force recommended – 2.3 g (23 mN)
Tracking angle – 20º

*) Typical value

Internal impedance, DC resistance – 5 Ohm
Recommended load impedance – >20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Pure 4-nines silver/Ag
Cartridge colour – White
Cartridge weight – 9 g
