PH-10

SKU: PH-10 Category:

Description

AUDIOPHILE IN EVERY POSSIBLE WAY
PH-10 shows every detail on its 2,8” colour display powered by Gold Note proprietary SKC – Single Knob Control technology – an intuitive control system developed to easily browse and select all the unit’s functions.

The unit can be externally powered by a dedicated inductive Dual-Mono PSU to enhance even more the performance.

ADVANCED FEATURES

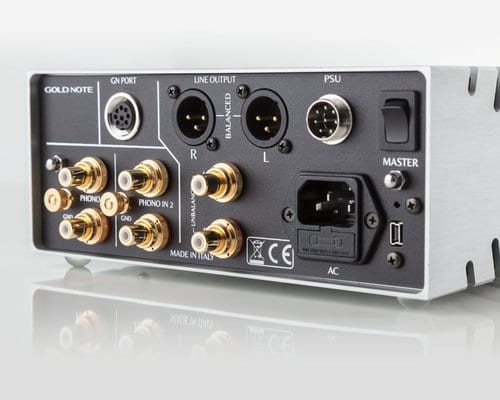

2 SEPARATE INPUTS
With two separate RCA inputs you can connect two different tonearms and adjust settings independently for each single cartridge

4 GAIN OPTIONS
PH-10 offers 4 different selectable GAIN levels -3dB, 0dB, +3dB, +6dB to precisely match any kind of output level for MM and MC cartridges

9 LOAD OPTIONS
Perfect matching is easy and quick to achieve with 9 different load options 10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ

6 EQ CURVES
To achieve the best vinyl experience select the correct EQ curve: RIAA, DECCA-LONDON or AMERICAN-CBS-COLUMBIA

DISPLAY & KNOB
SKC is a unique technology that combined with a TFT display allows quick control of the functions through the single knob joggle

ELEGANT & FUNCTIONAL
Made of solid machined aluminium, the shell body guarantees low frequency resonance, feedback vibrational control and low magnetic inertial field

Additional information

Brand

,

2 independent stereo RCA Inputs
Weight: 4Kg
Dimensions: 220mm W | 80mm H | 260mm D
Subsonic filter: 10Hz/36dB octave
Frequency response: 20Hz – 20KHz
[Enhanced 20Hz – 50KHz] @ +/- 0.3dB
THD (Total Harmonic Distortion): <0.05% MAX
Signal to noise ratio: -89dB
Dynamic response: 105dB
Output impedance: 50Ω

AUDIO INPUTS
Input capacitance MM: 220pF
Input sensitivity: 0.1mV MC up to 7.0mV MM
Input impedance: 9 selectable options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ]
Gain: 65dB MC – 45dB MM with 4 options [-3dB, 0dB, +3dB, +6dB]AUDIO OUTPUTS
Line output level (fixed): stereo RCA @ 2Volt and balanced XLR @ 4Volt

POWER
Main supply: 100V to 245V, 50/60Hz
(depending on market destination, not convertible)
Power consumption: 30W super linear power supply

UPGRADES
PSU-10 Dual-Mono External Inductive Power
