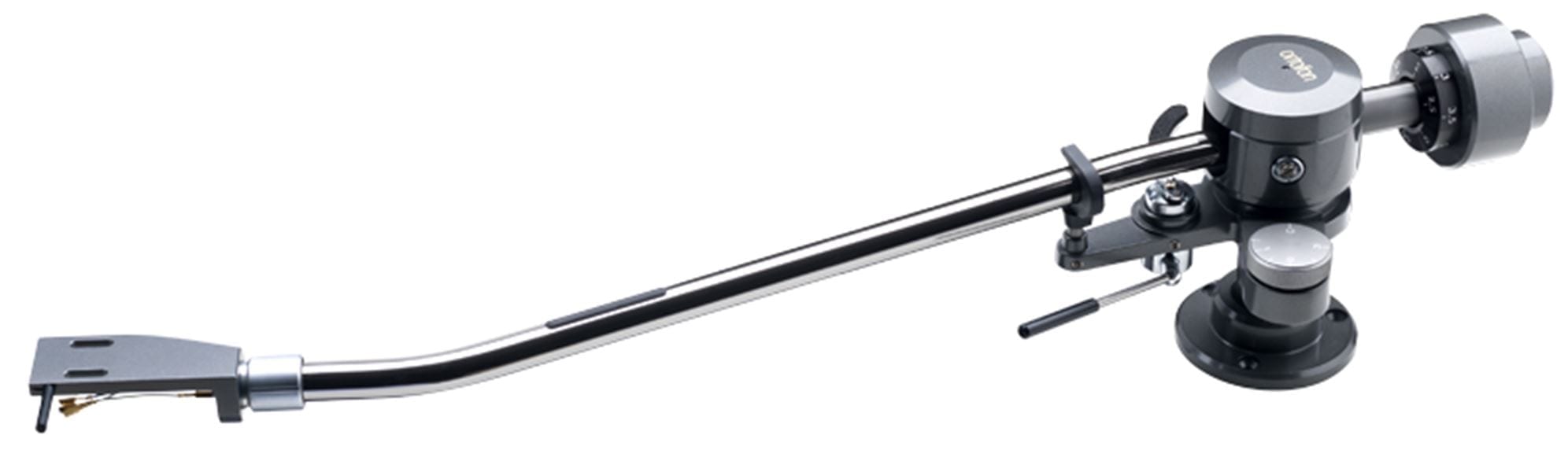

Ortofon TA-210 12 Tonearm

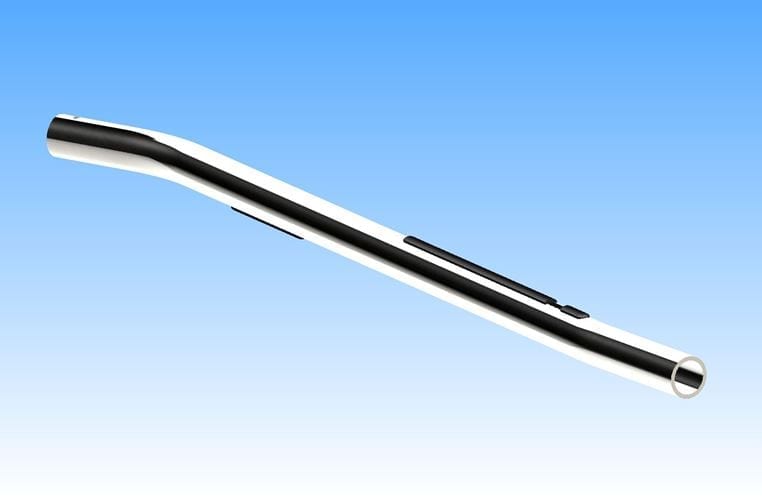

The Ortofon TA-210 tonearm has gone to the next level by reducing unwanted vibrations in the tonearm. Our extensive knowledge of vibration properties and characteristics in different shapes and materials has been applied for optimization of TA-210 tonearm.

Additional information


TA-210 Technical data

Effective mass without headshell: 5 g
Effective armlength (distance between the stylus and pivot point): 329.0 mm
Mounting distance (distance between the pivot point and turntable center): 316.6 mm
Offset angle: 16.5 degrees
Overhang: 12.4 mm
Tracking force adjusting range (direct reading): 0-3/0-4 g
Height adjustment range: 35-55 mm
Diameter of the armbase mounting hole: 19-20 mm
Diameter of the center shaft of tonearm: 18.0 mm
Inner null point: 66 mm
Outer null point: 120.9 mm

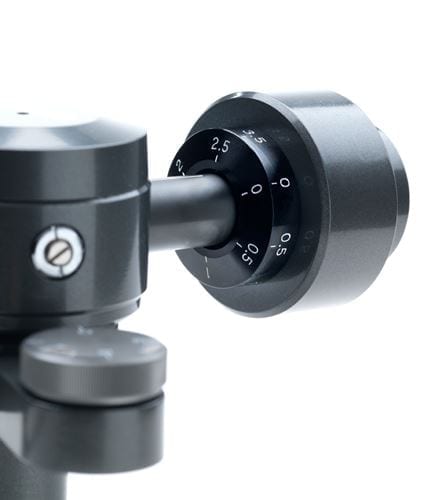

Counterweight for cartridge + headshell mass between 21 and 28g included
Headshell LH-2000E included, weight: 15.5 g
TA-210 total weight including headshell: 536 g
Set of tonearm cables 6NX-TSW-1010 included
Extra mass ring for heavier cartridges included, weight: 45 g
