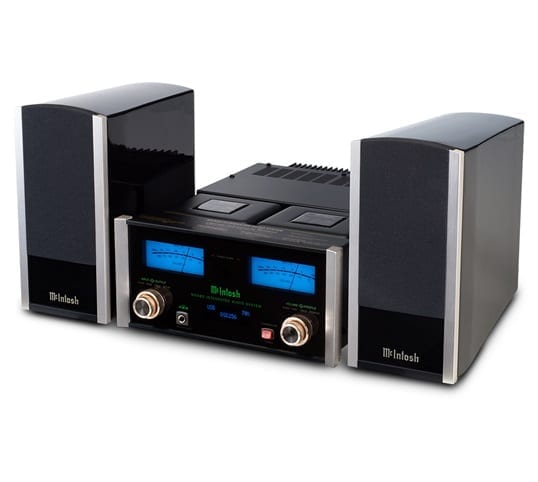

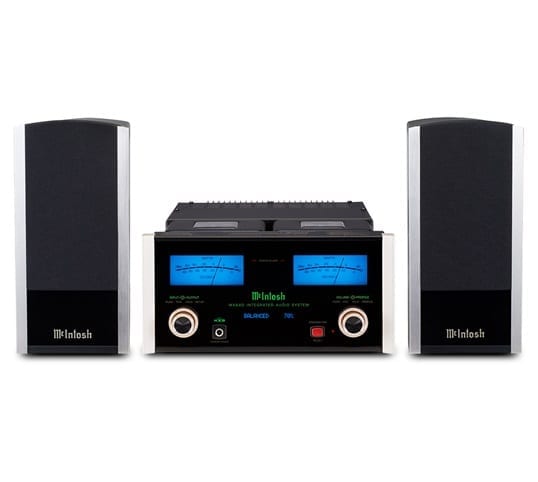

MXA80 2-Channel Integrated Audio System

SKU: MXA80 Category:

Description

The MXA80 Integrated Audio System is the next generation of the acclaimed MXA70. It maintains the same compact footprint and full functionality while adding support for DSD and DXD digital music files thanks to a new digital-to-analog converter (DAC).

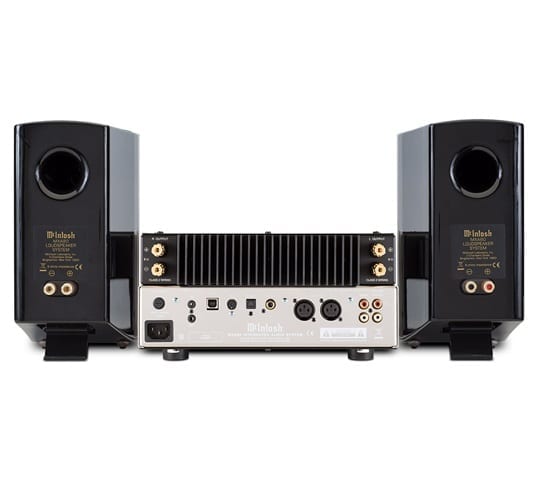

The MXA80 features a 50 Watt stereo amplifier and a pair of specially designed 2-way desktop speakers that achieve a remarkably rich and full bodied level of performance for their size. A total of six inputs – 4 digital and 2 analog – allow you to connect your music sources. The USB input accepts PCM signals up to 32-bit/384kHz and supports DSD64, DSD128 and DSD256 along with DXD 352.8kHz and DXD 384kHz. Our exclusive MCT input offers a secure DSD connection to enjoy the high definition audio on SACDs when paired with the MCT80 SACD/CD Transport.

A dedicated headphone amplifier is available for those times when you want to listen to your music more intimately. It takes advantage of unique McIntosh technologies so that every headphone yields the best possible personal listening experience. Headphone Crossfeed Director (HXD®) brings added dimension to your music while Power Guard® prevents clipping that could damage your speakers or headphones. A 5 step Bass Boost Control allows for further tonal customization.

The MXA80 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. It has been profiled and tested by both Roon and McIntosh for maximum compatibility. Roon will recognize it and send it audio optimized for its capabilities. No fiddling with checkboxes or dropdowns, Roon Tested devices are automatically identified and configured out of the box for a superior customer experience.

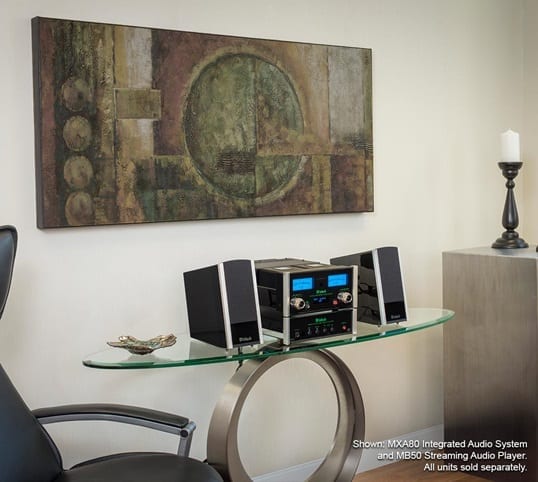

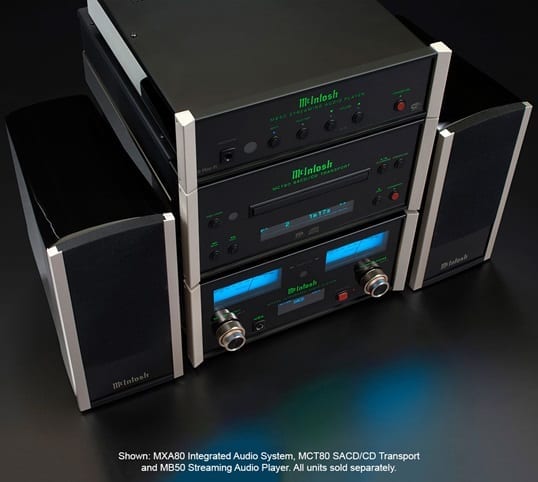

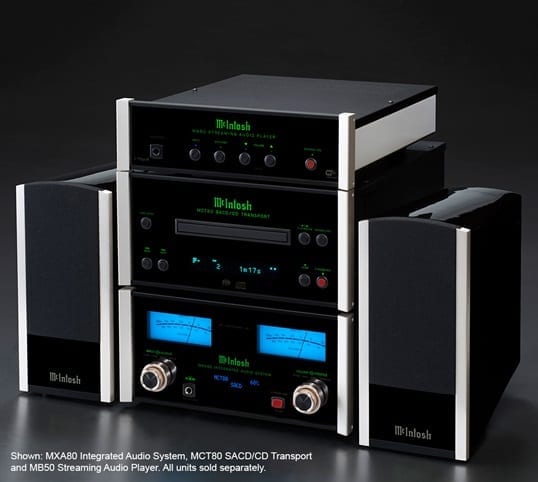

The MXA80’s compact size makes it a great audio system for an office, bedroom or vacation house. Combine it with the similarly-sized MB50 Streaming Audio Player and MP100 Phono Preamplifier to form the basis of a complete audio system. The amplifier is housed in a beautiful polished stainless steel chassis that compliments the classic glass front panel, knobs and brushed aluminum end caps; the speakers come with a luxurious, high gloss piano black finish.

Additional information

Brand

ELECTRONIC SPECIFICATIONS

  • Power Output per Channel
    50 Watts
  • Speaker Impedance
    8 Ohms
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.005%
  • Intermodulation Distortion
    0.005% maximum, if the instantaneous peak power is 100 watts or less per channel with both channels operating for any combination of frequencies from 20Hz to 20kHz
  • Dynamic Headroom
    1.5dB
  • Frequency Response +0,-0.5dB
    20Hz to 20kHz
  • Frequency Response, +0, -3dB
    10Hz to 100kHz
  • Sensitivity (Unbalanced)
    300mV
  • Sensitivity (Balanced)
    600mV
  • Maximum Input Signal (Unbalanced)
    8V
  • Maximum Input Signal (Balanced)
    16V
  • Signal To Noise Ratio
    105dB
  • Input Impedance (Balanced / Unbalanced)
    25K/25K
  • Damping Factor
    >150
  • Preamplifier Output
    3V (8V maximum)
  • Preamplifier Output Impedance
    500 Ohms
  • Voltage Gain
    36.5dB
  • Power Guard
    <2% THD with up to 16dB overdrive at 1kHz

LOUDSPEAKER SPECIFICATIONS

  • System Driver Complement
    One 4 inch Woofer/Midrange
    One 3/4 inch Dome Tweeter
  • Impedance
    8 Ohms Nominal
  • Frequency Response
    60Hz – 45kHz
  • Sensitivity
    80dB (2.83V/1m equivalent)
  • Crossover Frequency
    2,000Hz
  • Power Handling
    75 Watts
  • Enclosure Finish
    High Gloss Black
  • Grille Finish
    Black Knit Cloth

DIGITAL AUDIO SPECIFICATIONS

  • Digital Coaxial Input Sample Rate
    16Bit, 24Bit – 32kHz to 192kHz
  • Digital Optical Input Sample Rate
    16Bit, 24Bit – 32kHz to 192kHz
  • Digital MCT (DIN) Input Sample Rate
    16Bit, 24Bit – 32kHz to 192kHz
  • Digital USB Input Sample Rate
    16Bit, 24Bit, 32Bit – 32kHz to 384kHz

HEADPHONE OUTPUT SPECIFICATIONS

  • Headphone Power Output
    High Selection: 1W
    Normal Selection: 250mW
  • Headphone Output Impedance
    8-40 Ohms
    40-150 Ohms
    150-600 Ohms

CONNECTIVITY

  • Headphone Output
    1 (1/4″)
  • High Level Inputs Unbalanced
    1 Stereo
  • High Level Inputs Balanced
    1 Stereo
  • Digital Coaxial Input
    1
  • Digital Optical Input
    1
  • Digital MCT (DIN) Input
    1
  • Digital USB Input
    1
  • Preamplifier Output
    1 Stereo

CONTROL

  • Tone Controls
    5 Step Bass Boost Control: 0 to +12.5dB (in 2.5dB steps) @ 40Hz
  • Power Control Input
    Yes
  • Power Control Output
    Yes

GENERAL SPECIFICATIONS

  • Output Meters
    Yes
  • Vacuum Tube or Solid State
    Solid State
  • Power Requirement
    120V 50/60Hz, 1.5A
  • Standby Power Requirement
    <0.25 Watts
  • Output Autoformer
    Yes for Headphones

WEIGHTS & DIMENSIONS

  • Dimensions (W x H x D)
    Amplifier: 11-1/2″ (29.2cm) x 5-7/8″ (14.9cm) x 14-5/8″ (37.1cm)
    Speaker (each): 5″ (12.7cm) x 10-3/4″ (27.3cm) x 10-3/4″ (27.3cm)
  • Weight
    50 lbs (22.6 kg)
  • Shipping Weight
    66 lbs (29.9 kg)
