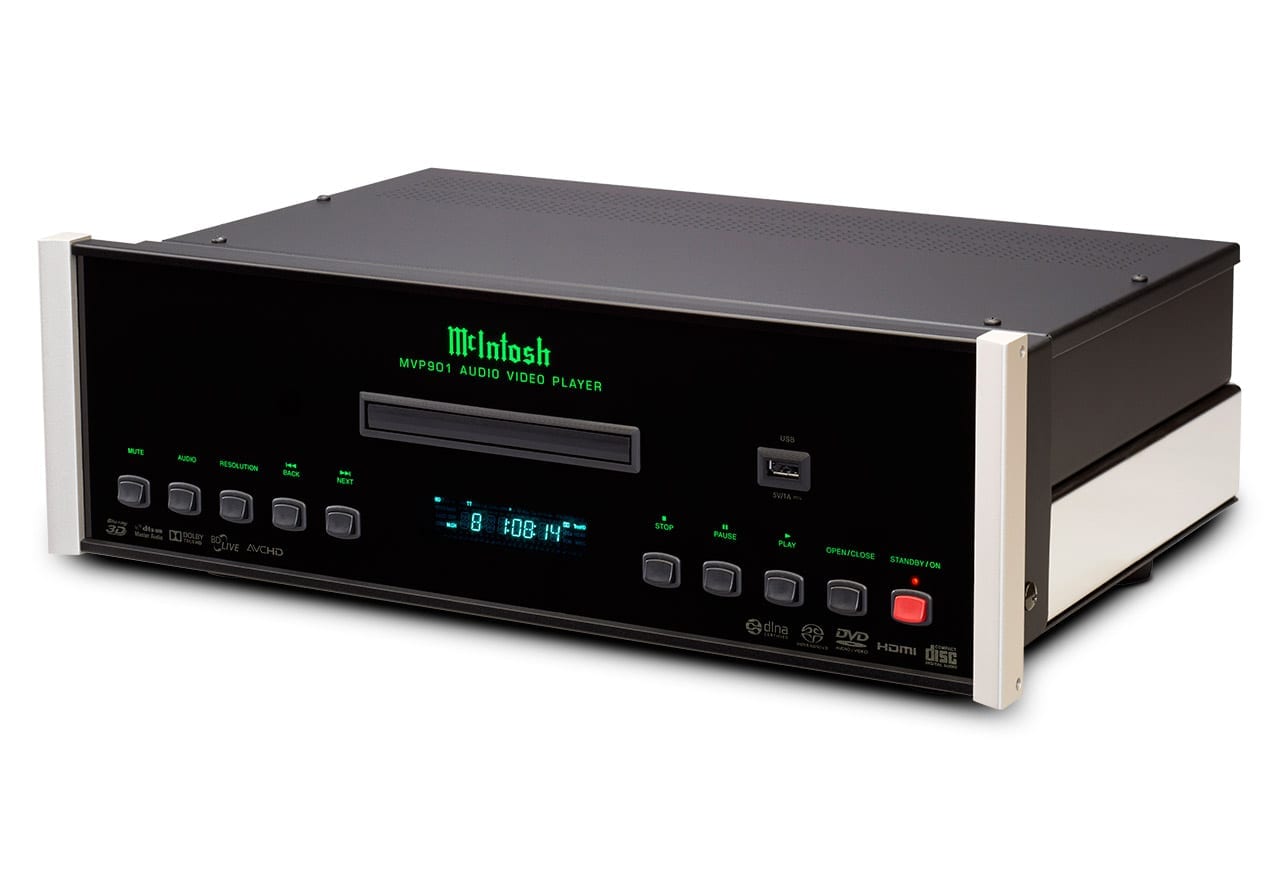

MVP901 AUDIO VIDEO PLAYER

SKU: MVP901 Category:

Description

Blu-ray players are an integral part of any home theater system and the McIntosh MVP901 is designed to provide years of home entertainment enjoyment. With its ability to upsample 1080P and lower resolutions to 4K Ultra HD, it can breathe new life into one’s vast movie library and is a perfect complement to the 4K compatible MX122 or MX160 home theater processor and a 4K TV.

Built in decoding of Dolby® True HD and DTS-HD Master Audio™ will put you in the center of the action. The MVP901 can also pass the latest object-based 3D audio formats such as Dolby Atmos, DTS:X™ and Auro-3D® to your compatible processor for truly encompassing surround sound. It fully supports 3D Blu-ray discs while state of the art processing power allows for ultra-fast playback start speeds. A variety of advanced adjustments can be made to color, image detail and video performance to improve picture quality.

Not limited to just movies, the MVP901 is also great for listening to music. CDs, SACDs and DVD-Audio discs can be enjoyed through balanced or unbalanced analog outputs that utilize an 8-channel, 32-bit/192kHz DAC that’s used in stereo quad balanced mode to produce high fidelity audio. The HDMI output can be used for multi-channel music playback. A triple laser optical pickup uses one objective lens for the different wavelengths and is optimized for various disc types. Three USB ports (1 front/2 rear) allow playback of audio and video files from flash drives. Network streaming and BD-Live is available through the ethernet connection.

The MVP901 incorporates timeless McIntosh design cues. It can easily be paired with a variety of McIntosh amplifiers, home theater processors, speakers and other components to make a complete and cohesive looking home theater system. Contact your local dealer​ to learn more. ​

Additional information

Brand

AUDIO SPECIFICATIONS
NUMBER OF CHANNELS
2
AUDIO FORMATS DECODED
MP3, WMA, AAC, LPCM, SACD, Multi-format DTS (including DTS-HD Master Audio), Multi-format Dolby (including Dolby TrueHD)
OUTPUT LEVEL
4.0Vrms Balanced
2.0Vrms Unbalanced
OUTPUT IMPEDANCE
600 ohms Balanced
600 ohms Unbalanced
BLU-RAY AND DVD FREQUENCY RESPONSE
4Hz to 22,000Hz (48kHz Sampling, Linear Audio)
4Hz to 44,000Hz (96kHz Sampling, Linear Audio)
4Hz to 88,000Hz (192kHz Sampling, Linear Audio)
SACD FREQUENCY RESPONSE
4Hz to 40,000Hz
CD FREQUENCY RESPONSE
4Hz to 20,000Hz
SIGNAL TO NOISE RATIO
115dB
DYNAMIC RANGE
110dB
TOTAL HARMONIC DISTORTION
0.002%
CHANNEL SEPARATION
Better than 110dB (1,000Hz)
DIGITAL AUDIO SPECIFICATIONS
DIGITAL COAXIAL OUTPUT
0.5V p-p/75 ohms
DIGITAL OPTICAL OUTPUT
-15dBm to -21dBm
DIGITAL SIGNAL FORMAT SAMPLING FREQUENCIES
44.1kHz, 48.0kHz, 96.0kHz and 192.0kHz
VIDEO SPECIFICATIONS
SIGNAL SYSTEM
NTSC/PAL
REGION CODE
A, 1
COMPONENT VIDEO OUTPUT LEVEL
N/A
COMPOSITE VIDEO OUTPUT LEVEL
N/A
SUPPORTS 3D PLAYBACK
Yes

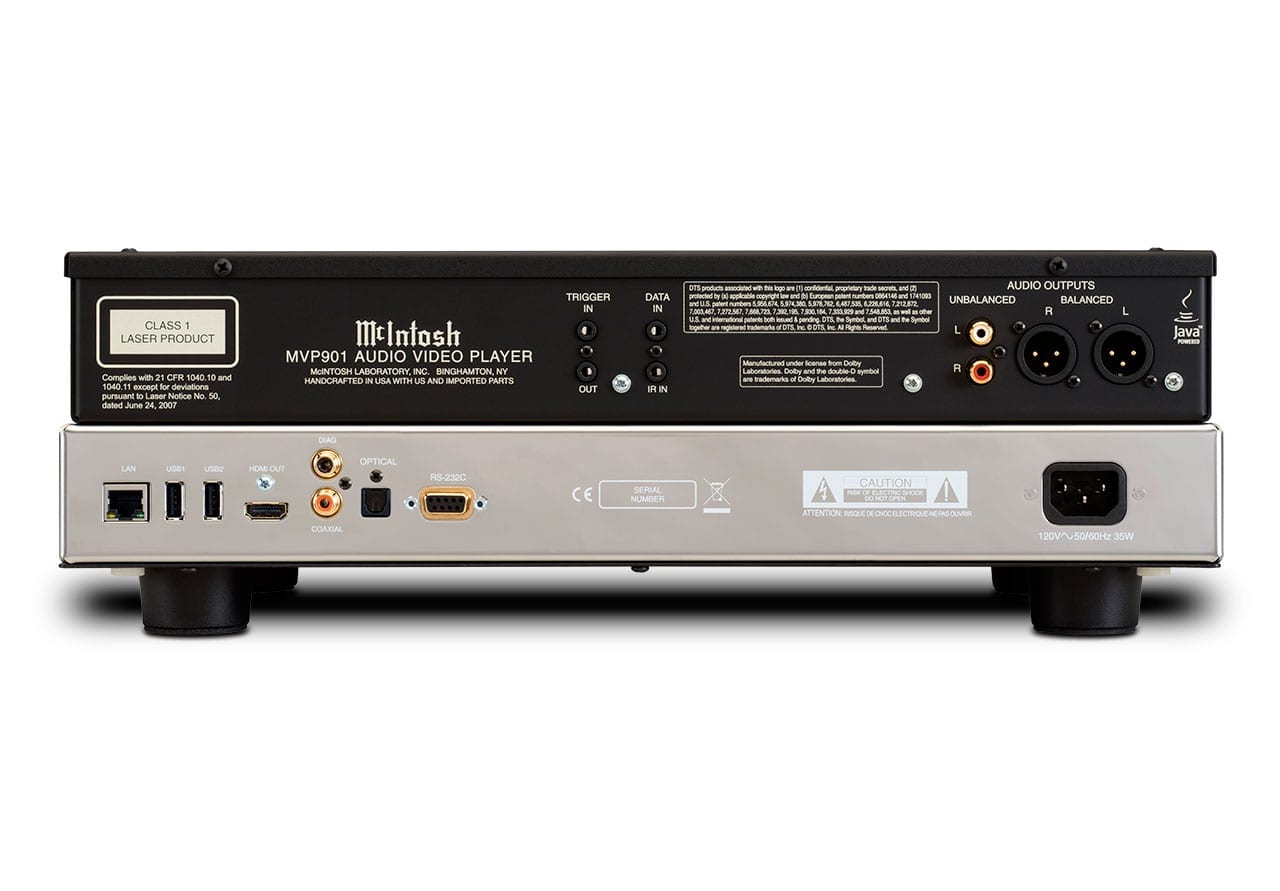

CONNECTIVITY
STEREO OUTPUTS UNBALANCED
1
STEREO OUTPUTS BALANCED
1
MULTI-CHANNEL OUTPUTS UNBALANCED
0
HDMI OUTPUT
1
DIGITAL COAXIAL OUTPUT
1
DIGITAL OPTICAL OUTPUT
1
COMPONENT OUTPUT
0
COMPOSITE OUTPUT
0
ETHERNET
1
USB
3 (1 front panel, 2 rear panel)
DIAGNOSTIC OUTPUT
1
CONTROL
REAR PANEL IR SENSOR INPUT
Yes
REAR PANEL DATA INPUT
Yes
POWER CONTROL INPUT
Yes
POWER CONTROL OUTPUT
Yes
RS232 CONTROL INPUT
Yes
GENERAL SPECIFICATIONS
DISC FORMATS
Blu-ray, DVD, CD, SACD, DVD-Audio
DISC CAPACITY
1
LASER BEAM WAVELENGTH
630nm/810nm
LASER POWER
CLASS I
STANDBY POWER REQUIREMENT
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2″ (44.45cm) x 6″ (15.24cm) x 13-1/2″ (34.3cm)
WEIGHT
19.5 lbs (8.8 kg)
