Description

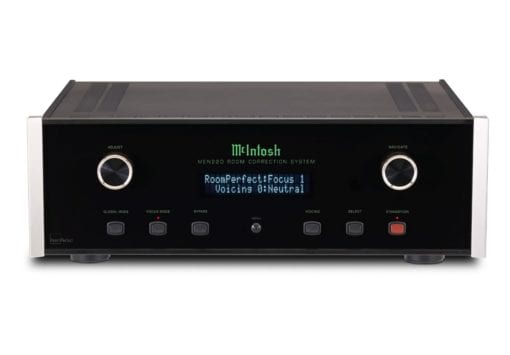

The MEN220 delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining all the features can reveal a level of clarity and resolution unattainable by any other means.
“I have never heard my speakers sound so wonderful!” – Michael (customer review)

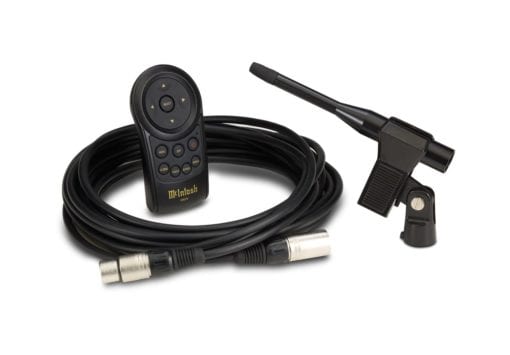

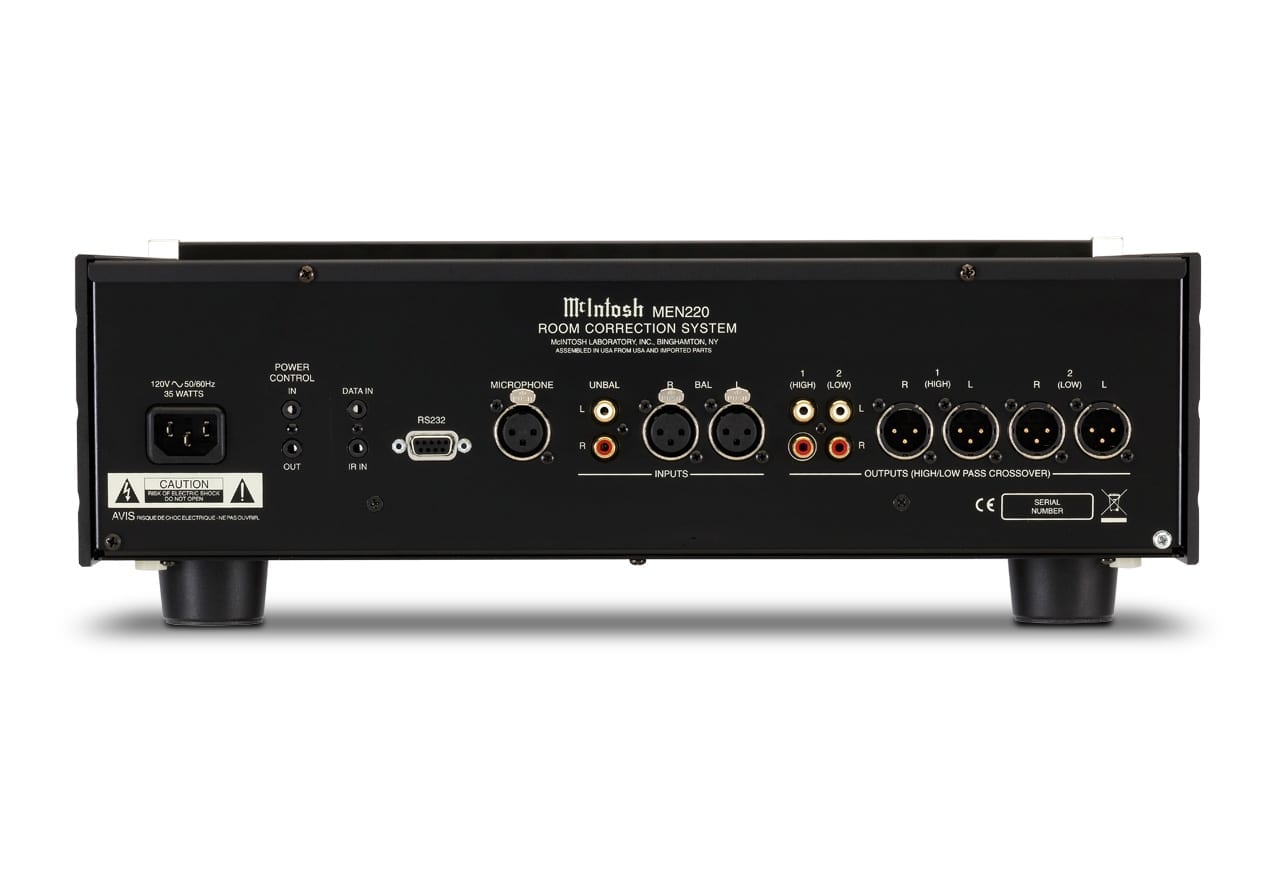

Full system control and PC link are provided via RS232 while McIntosh data, power control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included. Contact your local dealer​ to learn more.
ELECTRONIC SPECIFICATIONS
UNLESS NOTED, THE FOLLOWING WERE TAKEN WITH ROOMPERFECT SET TO BYPASS MODE AND VOICING MODE SET TO NEUTRAL.
FREQUENCY RESPONSE
+0, -0.5dB from 20Hz to 20,000Hz
TOTAL HARMONIC DISTORTION
0.002% from 20Hz to 20,000Hz
MAXIMUM INPUT VOLTAGE
4.5V Unbalanced and Balanced (Preamp-Power Amp)
2.25V Unbalanced and Balanced (Processor Loop)
MAXIMUM OUTPUT VOLTAGE
4.5V Unbalanced and Balanced (Preamp-Power Amp)
2.25V Unbalanced and Balanced (Processor Loop)
SIGNAL TO NOISE RATIO (A-WEIGHTED)
100dB
INPUT IMPEDANCE
10K ohms Unbalanced and Balanced
VOLTAGE GAIN
0dB
OUTPUT IMPEDANCE
50 ohms
CROSSOVER FILTER TYPES, ORDER AND SLOPE
Butterworth, 1st order, 6 dB/octave
Butterworth, 2nd order, 12 dB/octave
Butterworth, 4th order, 24 dB/octave
Linkwitz-Riley, 2nd order, 12 dB/octave
Linkwitz-Riley, 4th order, 24 dB/octave
Linkwitz-Riley, 8th order, 48 dB/octave
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2″ (44.45cm) x 6″ (15.24cm) x 18″ (45.72cm) (including front panel, knobs and cables)
WEIGHT
25.5 lbs (11.6 kg)
SHIPPING WEIGHT
41.9 lbs (19 kg)
