MC301 1-CHANNEL AMPLIFIER

SKU: MC301 Category:

Description

The McIntosh MC301 monoblock amplifier delivers 300 watts of power into a single channel at 2, 4 or 8 ohms. Both balanced and unbalanced inputs are included for connecting your preamp​, along with balanced and unbalanced outputs for ease of connecting bi-amp configurations. Its monoblock design is the ultimate in system configuration as each speaker has its own dedicated amp, guaranteeing maximum channel separation and audio fidelity.

“This is so definitely McIntosh, with goose bumps guaranteed!” – Stereo+

“Smooth? You bet. Realistic timbre? Check. Instruments and voices sound staggeringly realistic with no edge or glare whatsoever? Got it.” – Tone Audio

While it is physically smaller than our other amplifiers thanks to its space saving 6” tall chassis, it’s still full of all the technology McIntosh is known for and will perform to the same high standards as any of our amps. The McIntosh output Autoformer ensures every speaker receives full power regardless of its impedance. With our Quad Balanced design, any noise is cancelled inside the Autoformer, yielding the highest power with the least amount of distortion. Our unique Power Guard® circuitry prevents harsh sounding clipping that could damage your speakers. Your speaker cables​ will be securely connected to the amp with our patented speaker binding posts.

Has “plenty of grip available but little or no sense of the edginess that can often accompany serious power… If you’re looking to indulge in your music instead of the sound it makes, then the C52​ and MC301 are ‘strongly recommended.'” – Hi-Fi+

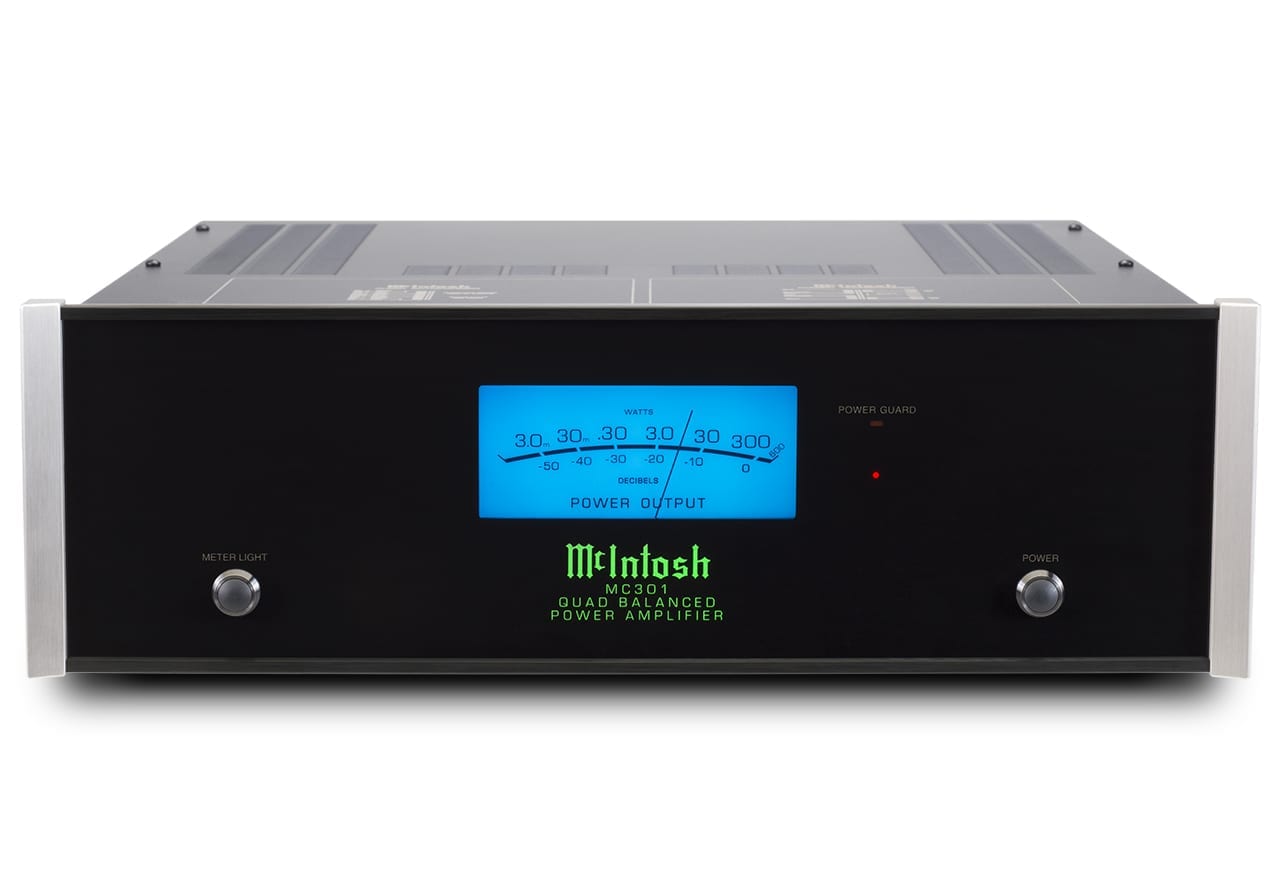

The MC301 is completed by the classic McIntosh black glass front panel, silver end caps and a large, easy to read blue watt meter that is globally recognized as a symbol of quality audio. Impress your friends and family with the legendary performance only McIntosh can deliver by adding the MC301 to your audio system. Contact your local dealer​ to learn more.

Additional information

Brand

ELECTRONIC SPECIFICATIONS
POWER OUTPUT PER CHANNEL
300W @ 2, 4 or 8 Ohms
NUMBER OF CHANNELS
1
TOTAL HARMONIC DISTORTION
0.005%
S/N BELOW RATED OUTPUT
120dB Balanced
118dB Unbalanced
DYNAMIC HEADROOM
2.0dB
DAMPING FACTOR
>40 Wideband
RATED POWER BAND
20Hz to 20kHz
FREQUENCY RESPONSE
+0, -0.25dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz
CONTROL
REMOTE POWER CONTROL
Yes
MULTI-CHANNEL DB25 CABLE
No
GENERAL SPECIFICATIONS
CIRCUIT CONFIGURATION
Quad Balanced
CIRCUIT DESIGN
Transistor
MONO BRIDGE
N/A
MONO PARALLEL
N/A
AUTOFORMER
Yes
METERS
Yes
METER LIGHT SWITCH
Yes
BALANCED INPUT
Yes
FRONT PANEL
Glass
ILLUMINATION
LED Fiber Optic
CHASSIS STYLE
Enclosed Steel
GOLD PLATED BINDING POSTS
Yes, New Style McIntosh
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
17-1/2″ (44.45cm) x 6″ (15.24cm) (including feet) x 21″ (50.8cm) (including front panel and cables)
WEIGHT
67 lbs (30.4 kg)
