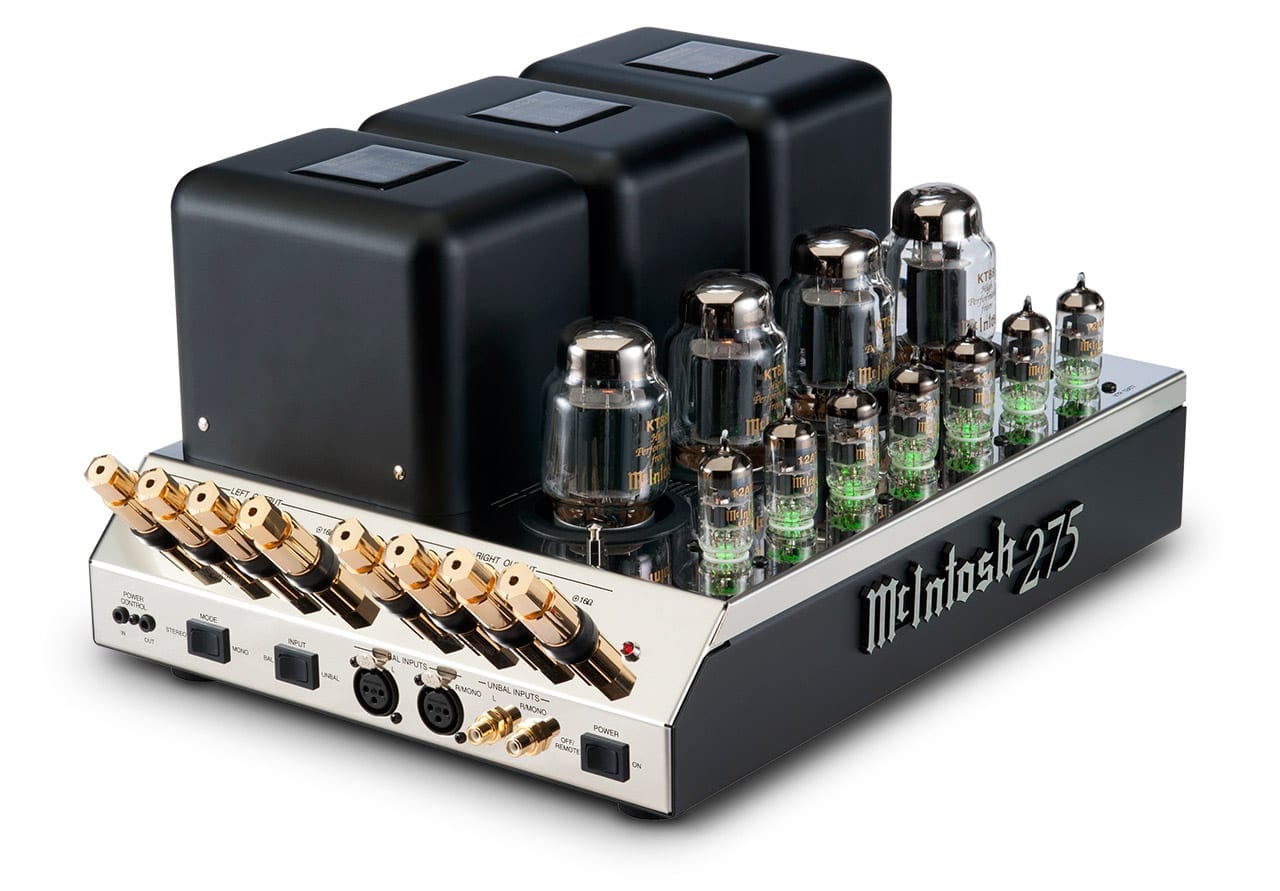

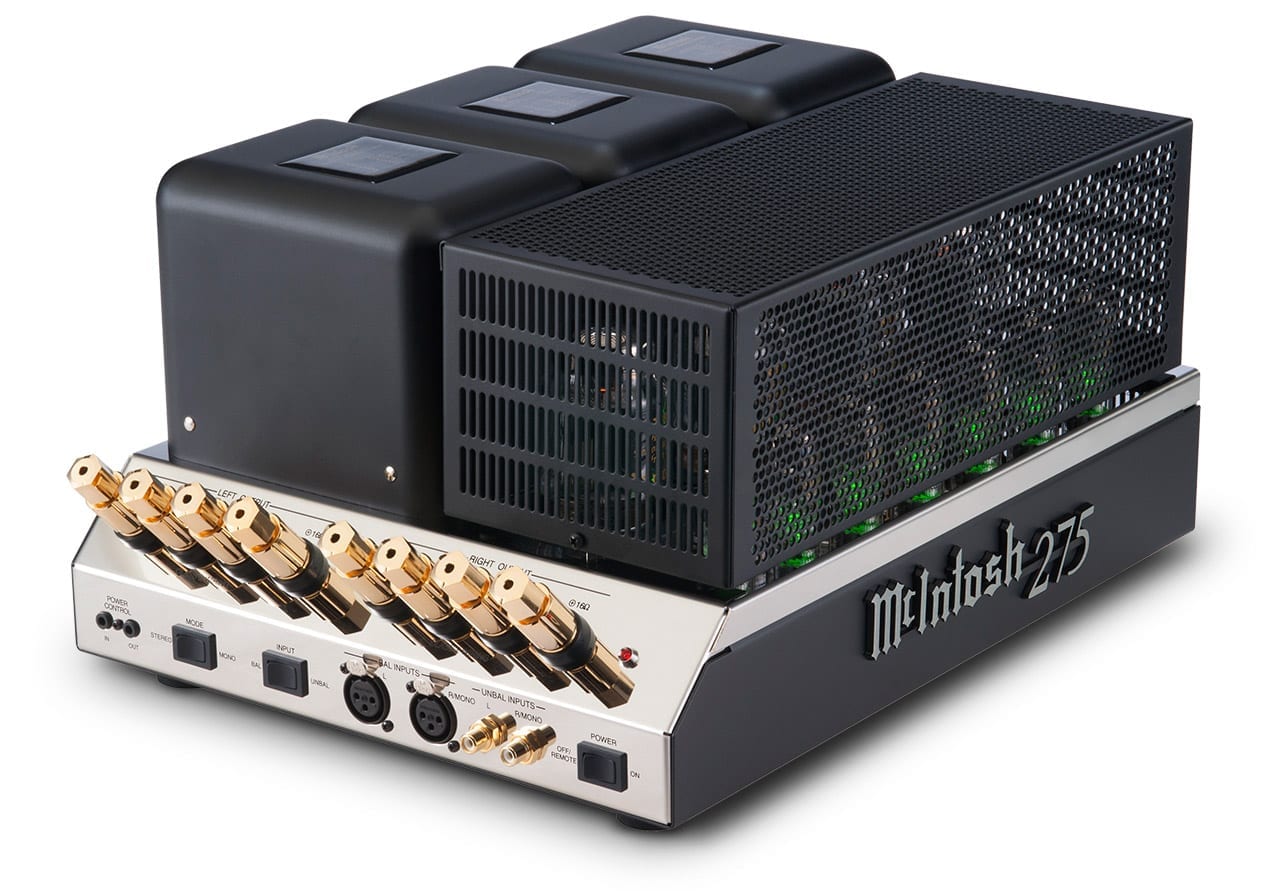

MC275 2-CHANNEL VACUUM TUBE AMPLIFIER

SKU: MC275 Category:

Description

This tube power amplifier has all the features to meet the needs of today’s music enthusiast, while preserving the qualities that have made the MC275 the most revered McIntosh tube amplifier.

This sixth generation MC275 has many subtle enhancements from the previous release that greatly improve pe​rformance. Combined with the widest bandwidth McIntosh output transformer design, the MC275 features tauter bass control and thermally quiet circuit design. The result is pure music.

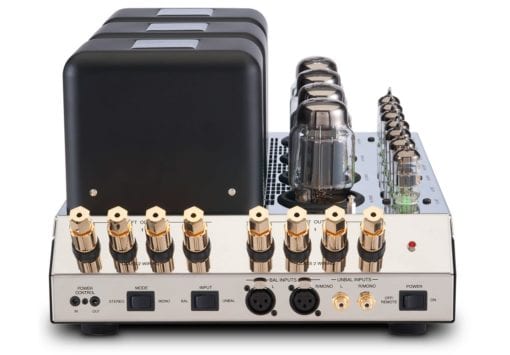

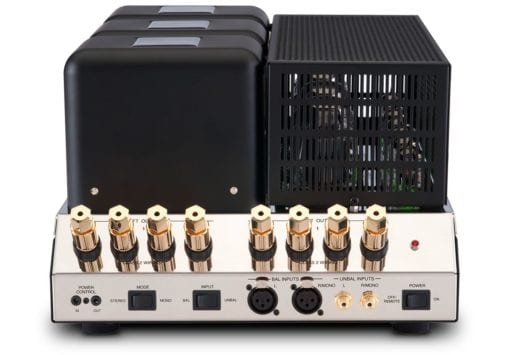

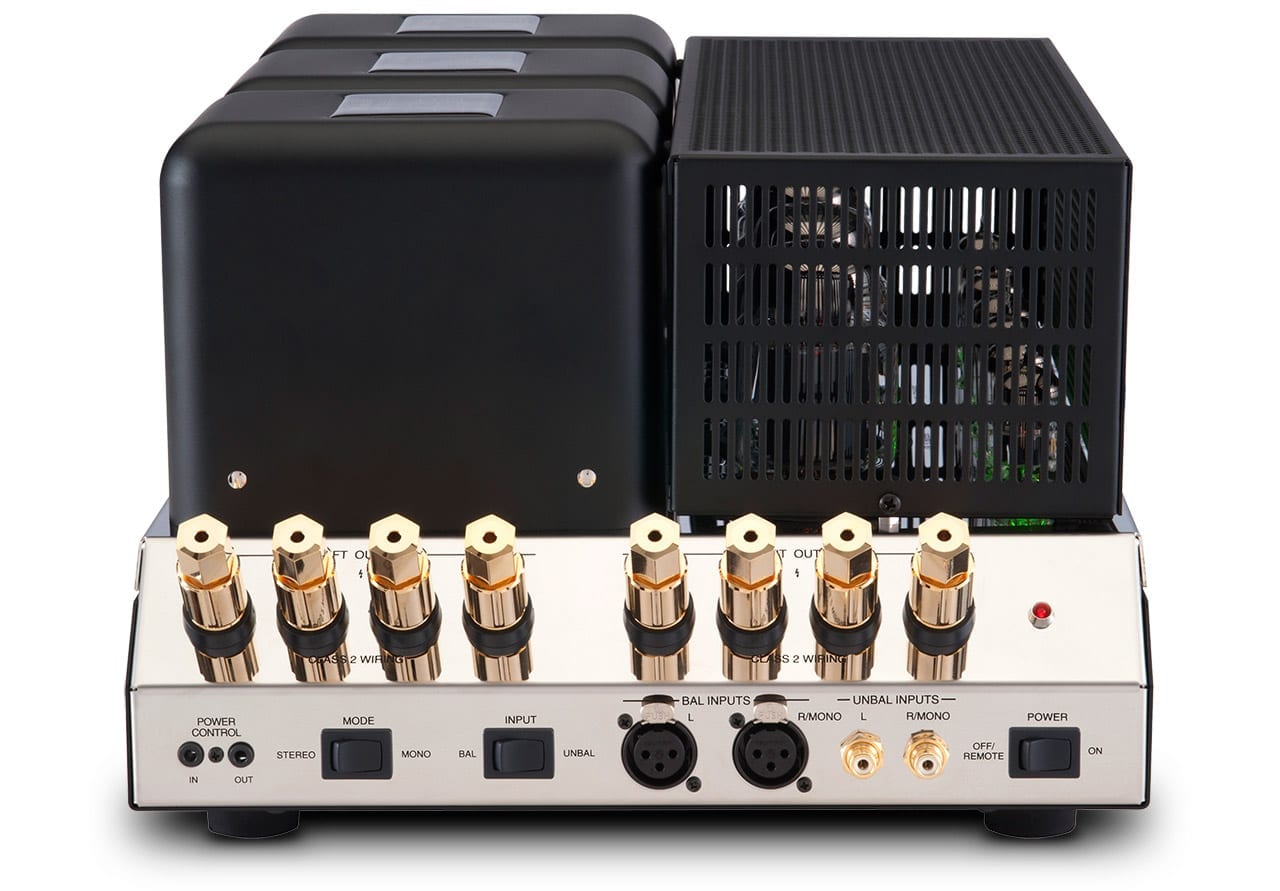

McIntosh patented, gold plated, speaker binding posts assure the best connection to all speaker cables, while high quality balanced and unbalanced input connectors enhance signal transfer from the connected preamplifier.

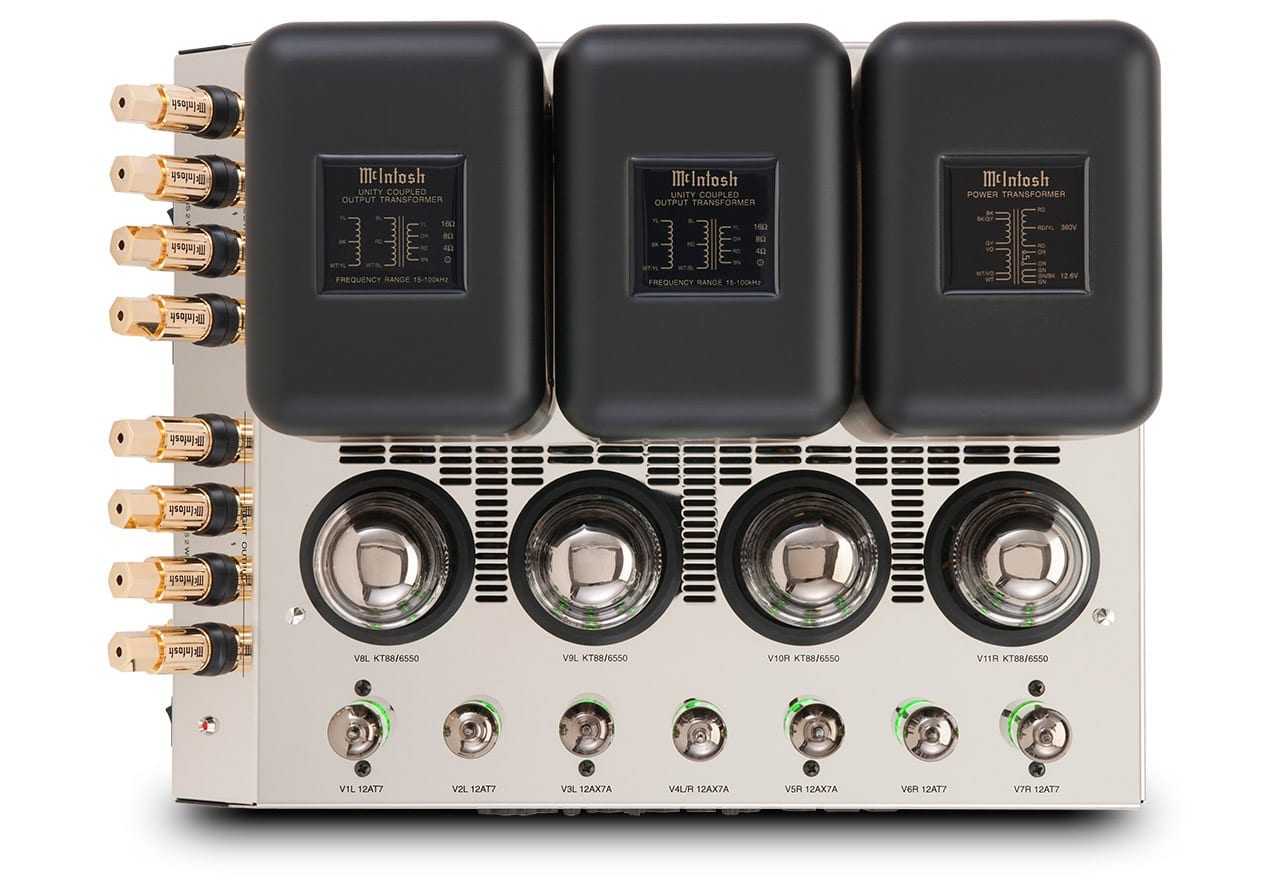

The seven small tubes are LED illuminated to indicate the amplifiers functional status: upon power up, they sequentially glow amber for a few seconds and then all turn green to signify system readiness (see below). In the rare case of an output tube failure, the small tubes in front of it will turn red to notify you of the problem. Power Control is used to remotely control tube illumination from a McIntosh preamplifier. Contact your local dealer​ to learn more.

Additional information

Brand

ELECTRONIC SPECIFICATIONS
POWER OUTPUT PER CHANNEL
75W @ 4, 8 or 16 Ohms
NUMBER OF CHANNELS
2
TOTAL HARMONIC DISTORTION
0.5%
S/N BELOW RATED OUTPUT
105dB
DYNAMIC HEADROOM
1.2dB
DAMPING FACTOR
>22
RATED POWER BAND
20Hz to 20kHz
FREQUENCY RESPONSE
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3.0dB from 10Hz to 100,000Hz
CONTROL
REMOTE POWER CONTROL
Yes, input and output
MULTI-CHANNEL DB25 CABLE
N/A
GENERAL SPECIFICATIONS
CIRCUIT CONFIGURATION
Unity Coupled
CIRCUIT DESIGN
Vacuum Tube
MONO BRIDGE
No
MONO PARALLEL
Yes, 150W @ 2, 4 or 8 Ohms
AUTOFORMER
Output Transformer
METERS
No
METER LIGHT SWITCH
Small signal tubes LEDs controlled by McIntosh preamp
BALANCED INPUT
Yes
FRONT PANEL
N/A
ILLUMINATION
Small Signal Tubes, LED
CHASSIS STYLE
Polished Stainless Steel
GOLD PLATED BINDING POSTS
Yes, New Style McIntosh
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
21-1/2″ (54.6cm) (including cables) x 8-1/2″ (21.6cm) (including feet) x 12″ (30.5cm)
WEIGHT
67 lbs (30.5 kg)
SHIPPING WEIGHT
75 lbs (34.1 kg)
