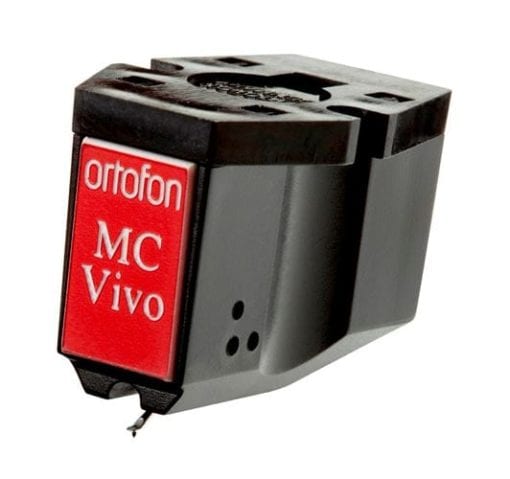

MC Vivo Red

Category:

Description

A special 7-nines (99.9999% pure) copper wire manufactured in Japan

Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers

A special and newly developed polycarbonate based resin, Lexan DMX, in Piano Black is used for manufacturing of the body. This revolutionary material improves rigidity and damping properties and also has a very durable scratch resistant surface. Rigidity is an important performance character as the plastic-body serves as basis for the generato.

Additional information

Brand

MC Vivo Red Technical data

Output voltage at 1000 Hz, 5cm/sec. – 0,5 mV
Channel balance at 1 kHz – < 1,5 dB Channel separation at 1 kHz – > 23 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-25.000 Hz
Frequency responce – 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force – > 65 µm
Compliance, dynamic, lateral – 13 µm/mN
Stylus type – Elliptical diamond on alu cantilever
Stylus tip radius – r/R 8/18 µm

Tracking force range – 1,6-2,0 g (16-20 mN)
Tracking force, recommended – 1,8 g (18 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 6 Ohm
Recommended load impedance – > 10 Ohm
Cartridge body material – Lexan DMX
Cartridge colour – Black
Cartridge weight – 7 g
