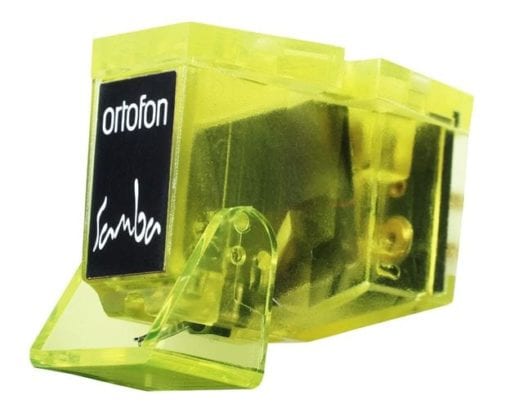

Description
The MC Samba has been created to provide a high level of compatibility with virtually any tonearm and will yield excellent results with any system.
The MC Samba is a great foray into the world of low output Moving Coil cartridges, featuring a nude elliptical stylus.
MC Samba Technical data
Output voltage at 1000 Hz, 5cm/sec. – 0,3 mV
Channel balance at 1 kHz – < 1 dB Channel separation at 1 kHz – > 25 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-30.000 Hz
Tracking ability at 315Hz at recommended tracking force – > 70 µm
Compliance, dynamic, lateral – 14 µm/mN
Stylus type – Nude elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 1,3-1,8 g (13-18 mN)
Tracking force, recommended – 1,5 g (15 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 6 Ohm
Recommended load impedance – > 10 Ohm
Cartridge body material – Noryl
Cartridge colour – Yellow transparent
Cartridge weight – 7 g
