Description

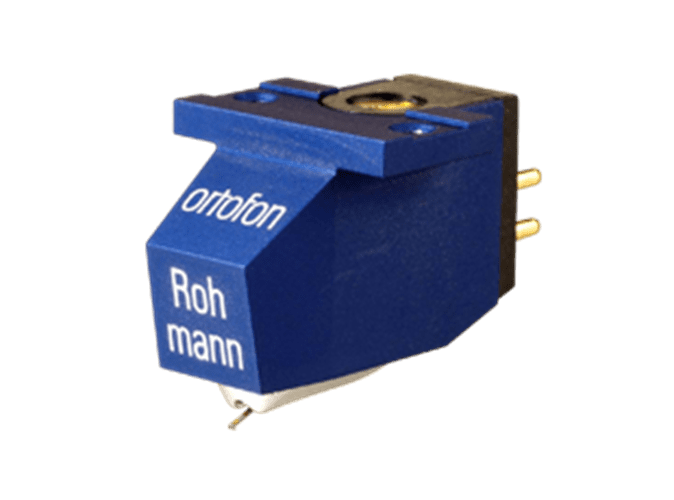

MC Rohmann is named after Ortofon’s former managing director, in honour of his many years of service.
This cartridge body is milled from a solid block of aluminium and the dark blue anodized body exploits aluminum’s special damping characteristics to suppress resonance. The slim-line Nude Orto-Line diamond ensures flawless tracking of even the most dynamic passages.
MC Rohmann conveys the full range of detail and subtle nuance, even when a powerful brass section competes with the fine nuances of quieter instruments such as the flute or harpsichord.
A high performance MC transformer or MC preamplifier is recommended. Recommended load: 100 Ohms or more.
MC Rohmann Technical data
Output voltage at 1000 Hz, 5cm/sec. – 0,25 mV
Channel balance at 1 kHz – < 1,5 dB Channel separation at 1 kHz – > 25 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-55.000 Hz
Frequency response – 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force – 80 µm
Compliance, dynamic, lateral – 12 µm/mN
Stylus type – Nude “Orto Line”
Stylus tip radius – r/R 4,5/100 µm
Tracking force range – 2,2-2,7 g (22-27 mN)
Tracking force, recommended – 2,5 g (25 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 6 Ohm
Recommended load impedance – > 10 Ohm
Cartridge body material – Aluminium, milled from solid block
Cartridge colour – Royal blue
Cartridge weight – 9 g
