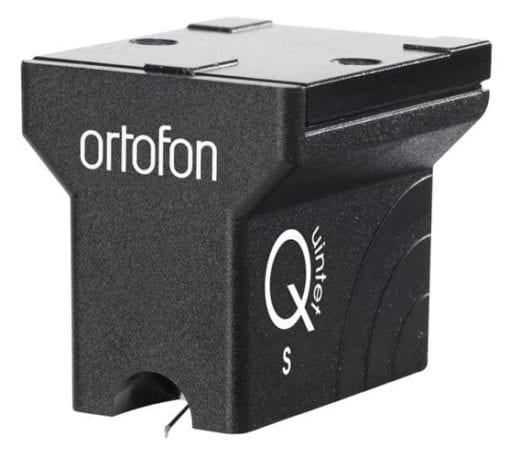

MC Quintet Black S

$999.00

Category:

Description

Multiple studies show that demand for strategic natural resources continues to increase. New technologies use ever-increasing amounts of rare and strategic resources. Understandable that this increasing demand may complicate future supply.

Over the decades, there has been an increase in the use of Boron. Elemental Boron is mostly used in high tech applications. One of Boron’s benefits for our modern technology is its use in neodymium magnets, which are an alloy of neodymium, iron and boron. Boron has also been applied in manufacturing of phono cartridges: Boron cantilevers are strong, stiff, light and 100% inert. From all possible options Boron cantilever is the best, but unfortunately extremely difficult to obtain.

To make sure future supplies of the Ortofon High-End cartridges, we will henceforward reserve the use of Boron cantilevers for our Exclusive series.

The new MC Quintet Black S model is graced with Shibata stylus on the Sapphire cantilever. Sapphire is one of the best cantilever options that provides an excellent mechanical pulse transfer from the stylus to the coil system.

Additional information

Brand

Output voltage at 1000 Hz, 5cm/sec. – 0.3 mV
Channel balance at 1 kHz – < 1.0 dB Channel separation at 1 kHz – > 23 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20 – 25.000 Hz
Frequency response 20-20.000 Hz – +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *) – 80 µm
Compliance, dynamic, lateral – 15 µm/mN
Stylus type – Nude Shibata on Sapphire cantilever
Stylus tip radius – r/R 6/50 µm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force, recommended – 2.3 g (23 mN)
*) Typical value

Tracking angle – 20°
Internal impedance, DC resistance – 5 Ohm
Recommended load impedance – > 20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Aucurum
Cartridge colour – Black
Cartridge weight – 9 g
