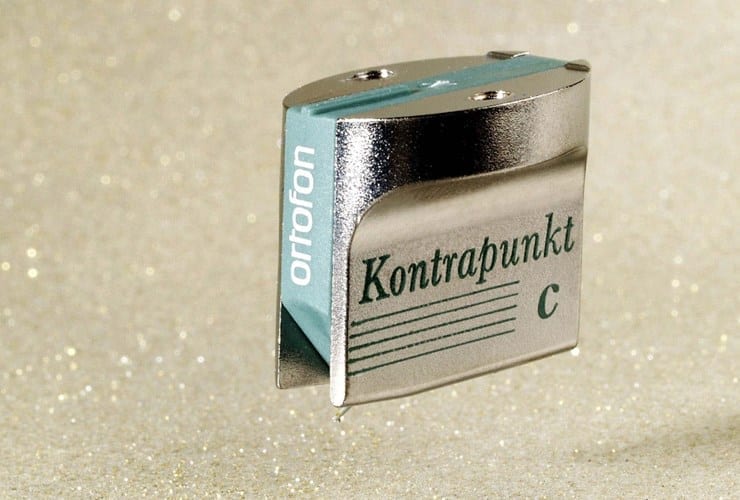

MC Kontrapunkt c

Category:

Description

Kontrapunkt “c” is a true high end reference cartridge, conveying music with supreme precision, impact and dynamics. Its stereo imaging capabilities illuminate the furthest corners of the soundstage in all three dimensions.

The Kontrapunkt c has a conical aluminum cantilever fitted with a Nude FG 80 diamond stylus. Coils are wound from 99.9999% pure silver. A neodymium magnet and an output of 470 mV ensure an extremely high signal-to-noise ratio with any MC Preamplifire.

Kontrapunkt c incorporates Ortofon’s unique FSE (Field Stabilising Element) to achieve optimal frequency response linearity by stabilizing the magnetic field around the armature-especially during complex crescendo passages- and to ensure consistently high channel separation across the frequency band.

A high resolution audio system is required to fully explore the information retrieval potential of this cartridge.

Additional information

Brand

MC Kontrapunkt “c” Technical data

Output voltage at 1000 Hz, 5cm/sec. – 0,47 mV
Channel balance at 1 kHz – < 1dB Channel separation at 1 kHz – > 25 dB
Channel separation at 15 kHz – > 23 dB
Frequency range at – 3dB – 20-50.000 Hz
Frequency response – 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force – 80 µm
Compliance, dynamic, lateral – 12 µm/mN
Stylus type – Nude FG 80 on tapered Al.cantilever
Stylus tip radius – r/R 5/80 µm

Tracking force range – 2,2-2,7 g (22-27 mN)
Tracking force, recommended – 2,5 g (25 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 5 Ohm
Recommended load impedance – 20-200 Ohm
Cartridge body material – Stainless Steel
Cartridge colour – Green
Cartridge weight – 10 g
