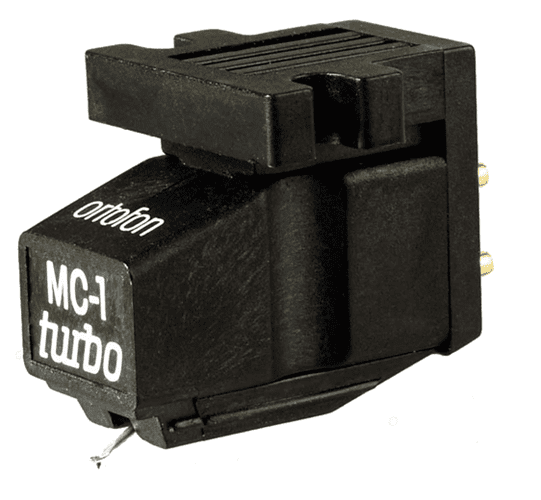

The MC-1 Turbo is an excellent entry into the world of high output Moving Coil (MC) cartridges, with an elliptical stylus profile.
The MC-1 Turbo has a 3.3mV output, which makes it perfect for use with inbuilt phono preamps – specifically ones designed for Moving Magnet (MM) cartridges.
The MC-1 Turbo provides a taste of the linearity and precision of moving coils, but without the need for additional high gain preamps or transformers.
| Brand |
|---|
MC-1 Turbo Technical data
Output voltage at 1000 Hz, 5cm/sec. – 3,3 mV
Channel balance at 1 kHz – < 2 dB Channel separation at 1 kHz – > 22 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-25.000 Hz
Frequency response – 20-20.000 Hz + 4 / – 1 dB
Tracking ability at 315Hz at recommended tracking force *) – > 65 µm
Compliance, dynamic, lateral – 13 µm/mN
Stylus type – Elliptical
*) Typical value
Stylus tip radius – r/R 8/18 µm
Equivalent stylus tip mass – 0,75 mg
Tracking force range – 1,8-2,2 g (18-22 mN)
Tracking force, recommended – 2 g (20 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 100 Ohm
Recommended load impedance – 47 kOhm / < 500 pF
Cartridge body material – Noryl
Cartridge colour – Black
Cartridge weight – 4,1 g
