Description
A New to extremity.
There are areas to what beyond a line can reach.
The conviction, was driven to the development of a new integrated digital players.
Pour the essence of the flagship model Grandioso, technology and the amount
and the K-07X · K-07X that did my wisdom.
The excitement of music without stress, I want to tell the truth.
To achieve a solid Philosophy and revamped all audio electronics circuits.
Of two of the discharge for any compromise “X”, now, to renew the lineage of esoteric.
Compatible disc types (playback) Super Audio CD, CD (including CD-R and CD-RW)

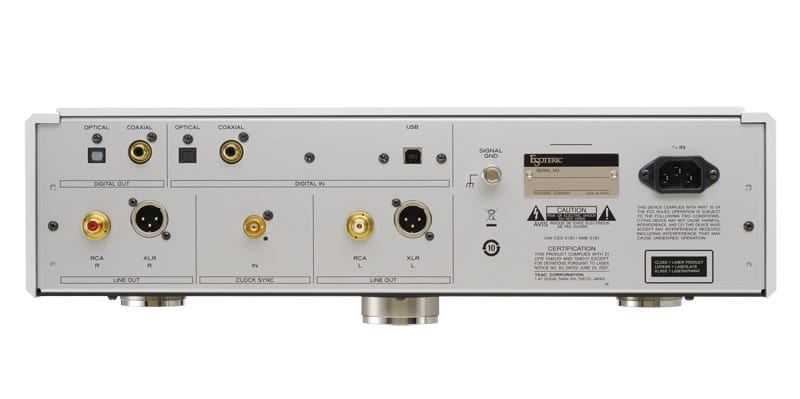

Analog audio
outputs Connectors XLR connector (2ch) x 1
RCA connector (2ch) x 1
Output impedance XLR: 20 Ω
RCA: 20 Ω
Maximum output level (1 kHz, full-scale, into 10 kΩ) RCA: 2.5 Vrms
XLR (set to 0dB): 5 Vrms
Frequency response 5 Hz to 70 kHz (- 3 dB)
S/N ratio 117dB
Total harmonic distortion 0.007% (1 kHz)
Digital audio output RCA connector x 1 0.5 Vp-p (into 75 Ω)
Optical digital connector x 1 -21 to -15 dBm peak x 1
USB-B port USB 2.0 standard
Digital audio input RCA connector x 1 (input impedance 75 Ω) 0.5 Vp-p
Optical digital connector x 1 -24.0 to -14.5 dBm peak
USB-B connector USB 2.0 standard
Clock sync input format Connector BNC
Supported input frequencies (±15 ppm) CD/SACD:
44.1, 48, 88.2, 96, 176.4, 192, kHz, 10/22.5792/24.576 MHz
Input impedance 75 Ω
Input level Rectangle wave: equivalent to TTL levels,
Sine wave: 0.5 to 1.0 Vrms (50 to 75 Ω)
General Power supply AC 230 V, 50 Hz
AC 120 V, 60 Hz
AC 220 V, 60 Hz
Power consumption 23W
External dimensions (W x H x D, including protrusions) 445 mm x 131 mm x 355 mm
(17 5/8″ x 5 1/4″ x 14″)
Weight approx. 14 kg (30 7/8 lb)
Included accessories Power cord set x 1
Remote control (RC-1251) x 1
Batteries for remote control (AA) x 2
Owner’s manual x 1
Warranty card x 1
