Description
A loudspeaker designated as the solution to bring to life the voice, Vox Tradition is the loudspeaker for a state-of-the-art home theater system.
EXPERIENCE, A CLASSIC AND RETRO APPROACH
The new Homage Tradition collection inherits the precious teachings of the masters of Italian violin-making and the experience gained in 20 years of design and development of the Homage line, with a classic and slightly retro approach.
THE AESTHETIC OF THE DOLCE VITA

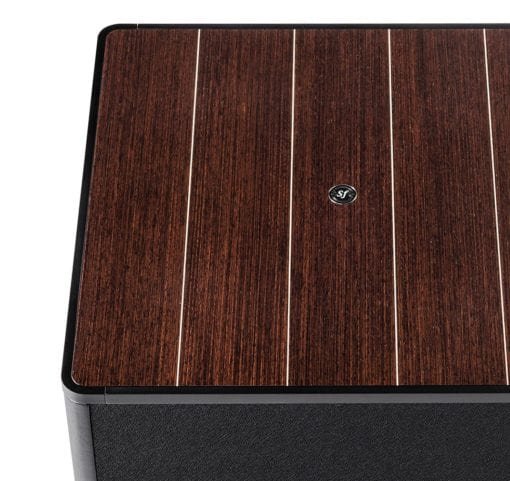

The world of ancient shipyards and the tradition of Italy’s shipwrights are the essence of the inspiration of the design of the Tradition collection. The new Wengè finish with maple inlays is the true aesthetic novelty of the collection and immediately links it with the elegant and timeless design of the most famous Italian motor-boats of the “La Dolce Vita“ with their iconic wooden hulls.
Strength and Design at the highest level.
REFINEMENT AND ELEGANCE

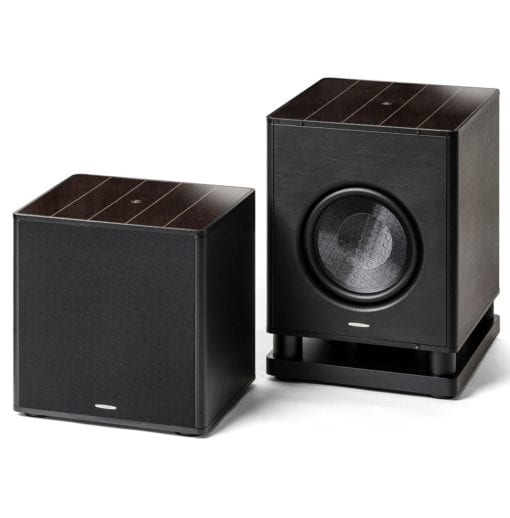

The Gravis V and VI subwoofers, the most powerful and high-end models, have been designed to be a perfect complement to the Homage Tradition and Reference collections. The project’s goal is to satisfy the need for a powered subwoofer to match the excellent performances of those loudspeakers ranges.
BLAST FROM THE PAST
Sonus faber is not new to the arena of subwoofer design and engineering. The first subwoofer project, the Gravis FB100, was launched back in 1986, ten years later was born Sonus faber Cremona M. Today, with the new Gravis Collection, Sonus faber returns to its roots, merging a ever increasing cutting-edge technology while maintaining its identity of natural sound and quality Italian hand-craftsmanship.
Gravis V
SYSTEM
Closed box loading, single driver, active subwoofer
SPEAKERS
1 x 320mm (12”), 8 ohm, very long throw, sandwich honeycomb cone, wide rubber surround
AMPLIFICATION
High performance, class AB amplifier
850 W
FREQUENCY RESPONSE
20 Hz (@- 6dB, acoustic Linkwitz 4th order roll-on, default setting) to Fc (user continuously adjustable)
MAINS INPUT VOLTAGE
Selectable, 100-120Vac – 50/60Hz or 220-240 Vac – 50/60 Hz
FUSE
T12A H 250V (100-120 Vac – 50/60Hz)
T6.3A H 250V (220-240 Vac – 50/60 Hz)
CONTROLS
Direct access Master volume; APP control featuring: 4 selectable presets, volume, continuously adjustable crossover frequency (40 to 150Hz , filtering slope 24dB/oct); continuously adjustable signal phase (0° to 360°); up to 8 parametric EQ filters, Delay (1 to 20 ms); automatic room calibration; selectable auto power on/off
AUDIO SIGNAL INPUTS
2 x Line level, left and right/LFE RCA phono plugs (unbalanced)
2 x Line Level, left and right/LFE XLR plugs (balanced)
1 x High level, Neutrik 4-pole Speakon© plug
POWER CONSUMPTION
< 2 W (Stand-by)
1.200 W peak
DIMENSIONS (HXWXD)
455 x 448,5 x 448,5 mm
18 x 17,6 x 17,6 in
Including feet
WEIGHT
32 Kg
70,5 lb
Gravis VI
SYSTEM
Closed box loading, two-driver, active subwoofer
SPEAKERS
2 x 320mm (12”), 8 ohm, very long throw, sandwich honeycomb cone, wide rubber surround
AMPLIFICATION
High performance, class AB amplifier
1.800 W
FREQUENCY RESPONSE
18 Hz (@ – 6dB, acoustic Linkwitz 4th order roll-on, default setting) to Fc (user continuously adjustable)
MAINS INPUT VOLTAGE
Selectable, 100-120 Vac – 50/60Hz or 220-240 Vac – 50/60 Hz
FUSE
T12A H 250V (100-120Vac – 50/60Hz)
T6.3A H 250V (220-240 Vac – 50/60 Hz)
CONTROLS
Direct access Master volume; APP control featuring: 4 selectable presets, volume, continuously adjustable crossover frequency (40 to 150Hz, filtering slope 24dB/oct); continuously adjustable signal phase (0° to 360°); up to 8 parametric EQ filters, Delay (1 to 20 ms); automatic room calibration; selectable auto power on/off
AUDIO SIGNAL INPUTS
2 x Line level, left and right/LFE RCA phono plugs (unbalanced)
2 x Line Level, left and right/LFE XLR plugs (balanced)
1 x High level, Neutrik 4-pole Speakon© plug
POWER CONSUMPTION
< 2 W (Stand-by)
1.800 W peak
DIMENSIONS (HXWXD)
616 x 448,5 x 585,5 mm
24,2 x 17,6 x 23 in
Including feet
WEIGHT
52 Kg
114,6 lb
