Description
The Gravis I and II subwoofers, the collection representing an ideal compromise between size and performance.
BLAST FROM THE PAST
Sonus faber is not new to the arena of subwoofer design and engineering. The first subwoofer project, the Gravis FB100, was launched back in 1986, later followed Cremona M subwoofers. Today, with the new Gravis collection, Sonus faber returns to its roots, incorporating cutting-edge technology while maintaining its identity of natural sound and quality Italian hand-craftsmanship.
THE COMPLETION
OF THE PINNACLE

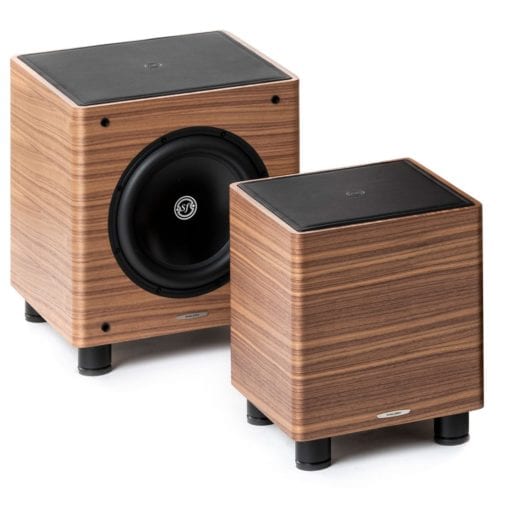

Gravis I and II are the smaller subwoofers of the Gravis Collection.
These speakers have been designed to be easily integrated into every living environment and ideally matched with almost every kind of audio and audio/video system. In addition Gravis I and II are the perfect match for their loudspeaker siblings: the Sonus faber Sonetto Collection.
Gravis I
SYSTEM
Closed box loading, down firing active subwoofer
SPEAKERS
1 x 210mm (8”) very long throw, treated paper cone, wide rubber surround woofer
AMPLIFICATION
High linearity Class AB
150 W rms, 250 W (peak)
FREQUENCY RESPONSE
From 30/40 Hz to Fc (user adjustable)
MAINS INPUT VOLTAGE
Factory selected, 120Vac – 60Hz or 230 Vac – 50 Hz
FUSE
T4.0A (110Vac, 60Hz); T2.0A (230V, 50Hz)
Output signal short circuit
Over-heating
DC fault
CONTROLS
Independent Master and LFE volume controls;
Continuously adjustable Crossover frequency (30 to 120Hz), slope 24dB/oct;
Signal phase inversion switch (0/180°)
Auto switch-on/off (deselectable)
AUDIO SIGNAL INPUTS
LFE (Low Frequency Effect), single phono plug;
Line level signal, single phono plug;
High level signals, Neutrik 4-pole Speakon©
POWER CONSUMPTION
0.5 W (Stand-by)
250W (Rated power)
DIMENSIONS (HXWXD)
334 x 286 x 316 mm including feet
13.1 x 11.2 x 12.4 in including feet
WEIGHT
14.5 Kg
32 lb
Gravis II
SYSTEM
Passive radiator bass-reflex loading active subwoofer
SPEAKERS
1 x 260mm (10”) very long throw, treated paper cone, wide rubber surround woofer
AMPLIFICATION
High linearity Class AB
350 W rms, 700 W (peak)
FREQUENCY RESPONSE
From 25/35 Hz to Fc (user adjustable)
MAINS INPUT VOLTAGE
Factory selected, 120Vac – 60Hz or 230 Vac – 50 Hz
FUSE
T6.3A (110Vac, 60Hz); T3.15A (230V, 50Hz)
Output signal short circuit;
Over-heating;
DC fault
CONTROLS
Independent Master and LFE volume controls;
Continuously adjustable Crossover frequency (30 to 120Hz),
slope 24dB/oct;
Signal phase inversion switch (0/180°)
Auto switch-on/off (deselectable)
AUDIO SIGNAL INPUTS
LFE (Low Frequency Effect), single phono plug;
Line level signal, single phono plug;
High level signals, Neutrik 4-pole Speakon©
POWER CONSUMPTION
0.5 W (Stand-by)
450W (Rated power)
DIMENSIONS (HXWXD)
404 x 356 x 408 mm including feet
15,9 x 14 x 16 in including feet
WEIGHT
21,5 Kg
47,3 lb
