Description

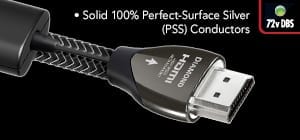

Diamond HDMI incorporates AudioQuest’s highest-performance, lowest-distortion Perfect-Surface Silver conductors. Silver is known for its high conductivity and its “colorless” sonic presentation.

Additional information

Brand

SOLID 100% PERFECT-SURFACE SILVER (PSS) CONDUCTORS: Perfect-Surface Technology applied to extreme-purity silver provides unprecedented clarity and dynamic contrast. Solid conductors prevent strand interaction, a major source of cable distortion. Extremely high-purity Perfect-Surface Silver minimizes distortion caused by the grain boundaries that exist within any metal conductor, nearly eliminating harshness and greatly increasing clarity compared to OFHC, OCC, 8N and other coppers.

FOAMED-POLYETHYLENE INSULATION: Any solid material adjacent to a conductor is actually part of an imperfect circuit. Wire insulation and circuit board materials all absorb energy (loss). Some of this energy is stored and then released as distortion. Diamond HDMI uses air-filled Foamed-Polyethylene Insulation because air absorbs next to no energy and Polyethylene is low-loss and has a benign distortion profile. Thanks to all the air in Foamed-PE, it causes much less of the out-of-focus effect common to other materials.

CARBON-BASED 3-LAYER NOISE-DISSIPATION SYSTEM (NDS): 100% shield coverage is easy. Preventing captured RF Interference from modulating the equipment’s ground reference requires AQ’s Noise-Dissipation System. Metal and Carbon-Loaded synthetics prevent most RFI from reaching the equipment’s ground plane.

DIELECTRIC-BIAS SYSTEM (DBS, US Pat #s 7,126,055 & 7,872,195 B1): All insulation slows down the signal on the conductor inside. When insulation is unbiased, it slows down parts of the signal differently, a big problem for very time-sensitive multi-octave audio. AudioQuest’s DBS creates a strong, stable electrostatic field which saturates and polarizes (organizes) the molecules of the insulation. This minimizes both energy storage in the insulation and the multiple nonlinear time-delays that occur. Sound appears from a surprisingly black background with unexpected detail and dynamic contrast. The DBS battery packs will last for years. A test button and LED allow for the occasional battery check.

HIGH SPEED DATA CAPACITY: HDMI standards and capabilities have improved significantly since DVI first evolved into HDMI. All generations are backward compatible. However, not all previous HDMI cables can transmit the full 18Gbps of data required to optimize today’s HDMI 2.0 equipment. While there is currently no 4K/60 4:4:4 software requiring the full 18Gbps capability of HDMI 2.0, some sources (UHD Blu-ray players) can be set to upsample, requiring 18Gbps capability. (Upsampling often should be done in the TV rather than in a previous component — but that’s your decision.) The most important thing to know and understand is that all AudioQuest HDMI cables up to 8 meters are guaranteed to exceed the requirements for all possible HDMI 2.0/HDCP 2.2 data streams, including 4K UltraHD, HDR, and Blu-ray Ultra HD.

ETHERNET AND AUDIO RETURN CHANNEL ENABLED: All AudioQuest HDMI cables up to 8 meters are rated High Speed with Ethernet. From 12 meters to 20 meters AudioQuest HDMI cables are Standard Speed with Ethernet.

DIRECTIONALITY: All audio cables are directional. The correct direction is determined by listening to every batch of metal conductors used in every AudioQuest audio cable. All signal conductors controlled for digital-audio direction in AudioQuest HDMI cables, and care is even taken to run the conductors used in the Audio Return Channel in the opposite direction to ensure the best performance for that application. Arrows are clearly marked on the connectors to ensure superior sound quality.
