D-07x

SKU: D-07x Category:

Description

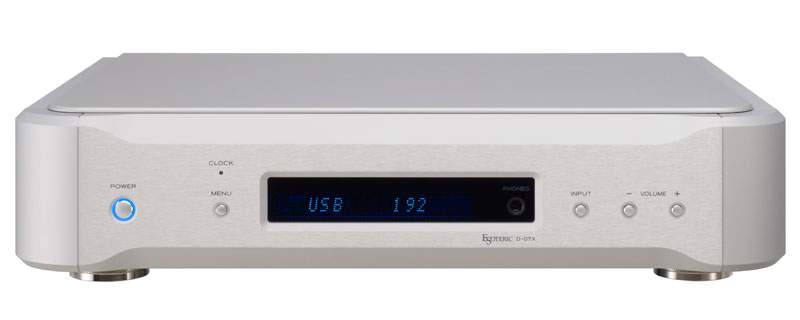

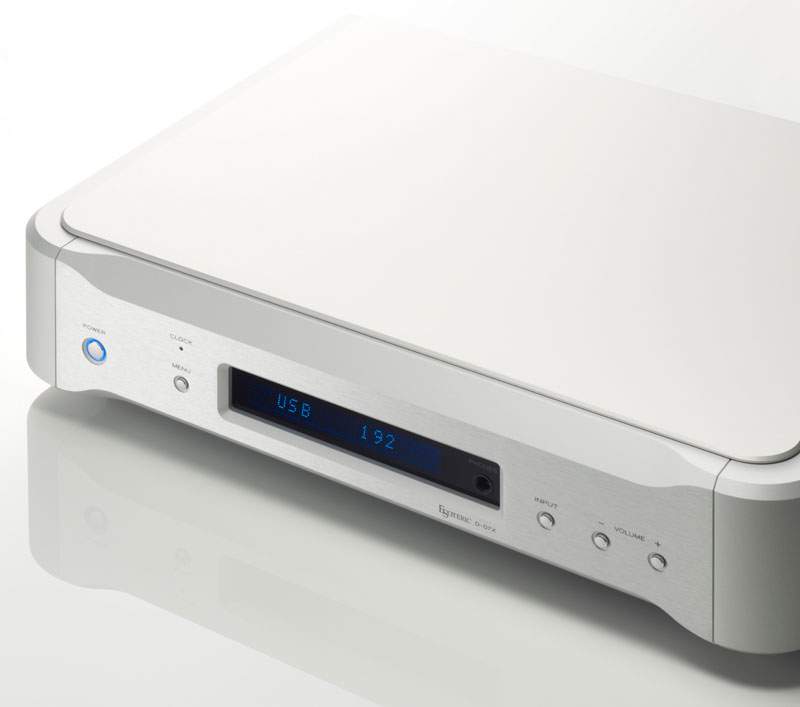

This state-of-the-art D/A converter provides uncompromising quality with PC audio playback using a USB connection, S/PDIF Coaxial, AES/EBU or TosLink Optical as well as when connected to an ESOTERIC Super Audio CD/CD transport. Audio performance has been improved using a dual/mono configuration in which multiple 32 bit D/A conversion circuits are combined in parallel, as well as by utilizing a parallel buffer amplifier for unbalanced analog outputs. This model uses cutting edge technology, including 192kHz/24bit USB input compatible with asynchronous transfer, high accuracy clock circuit, multiple D/D conversion options.

Additional information

Brand

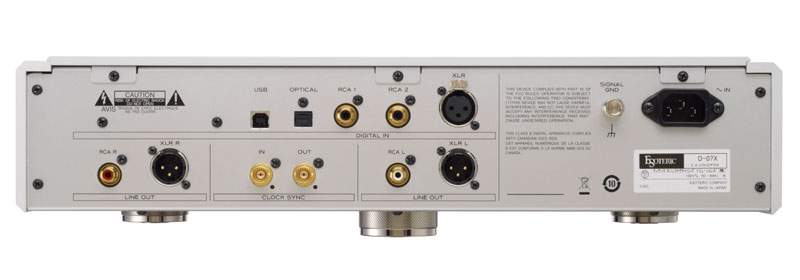

Analog output Jacks XLR (2ch) ×1
RCA (2ch) ×1
Headphones ×1
Output impedance XLR: 100Ω
RCA: 25Ω
Maximum output level
(1 kHz, with full-scale input) XLR: 2 .45 Vrms (when set to 0 dB with 10 kΩ load)
RCA: 2 .45 Vrms (with 10 kΩ load)
PHONES: 20 mW + 20 mW (with 32 Ω load)
Frequency response 5 Hz to 55 kHz
Signal-to-Noise Ratio (S/N) 115dB
Total harmonic distortion 0 .0015% (JEITA)
Digital input Balanced digital input XLR (5 .0 Vp-p/110 Ω) ×1
Coaxial connector RCA (0 .5 Vp-p/75 Ω)×2
Optical digital connector OPTICAL (–24 .0 to –14 .5 dBm peak) ×1
USB port B connector ×1
Input sampling frequencies 32, 44 .1, 48, 88 .2, 96, 176 .4, 192 (kHz)
Note: The XLR input (only) supports DSD input in ES-LINK (single) format
Clock sync output Jack BNC×1
Output frequency 44 .1, 48, 88 .2, 96, 100, 176 .4, 192 (kHz/rectangular wave)
22 .5792, 24 .576 (MHz)
Same frequency as input (when set to THRU)
Output level Equivalent to TTL levels (with 75 Ω load)
Clock sync input Jack BNC×1
Input frequency 44.1, 48, 88.2, 96, 100, 176.4, 192 (kHz)
10, 22.5792, 24.576 (MHz)
Input impedance 75Ω
Input level Square wave: equivalent to TTL level
Sine wave: 0 .5–1 .0 Vrms (with 75 Ω load)
General Power supply AC 230V, 50Hz
AC 120V, 60Hz
AC 220V, 60Hz
Power consumption 7W
External dimensions
(W×H×D, including protrusions) 445 x 106 .5 x 356 mm
(17 1/2″ x4 2/8″ x 14 1/8″)
Weight 10 .4 kg (22 .93 lb)
– This product is available in three different power supply variations shown in the specification section above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
– The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
