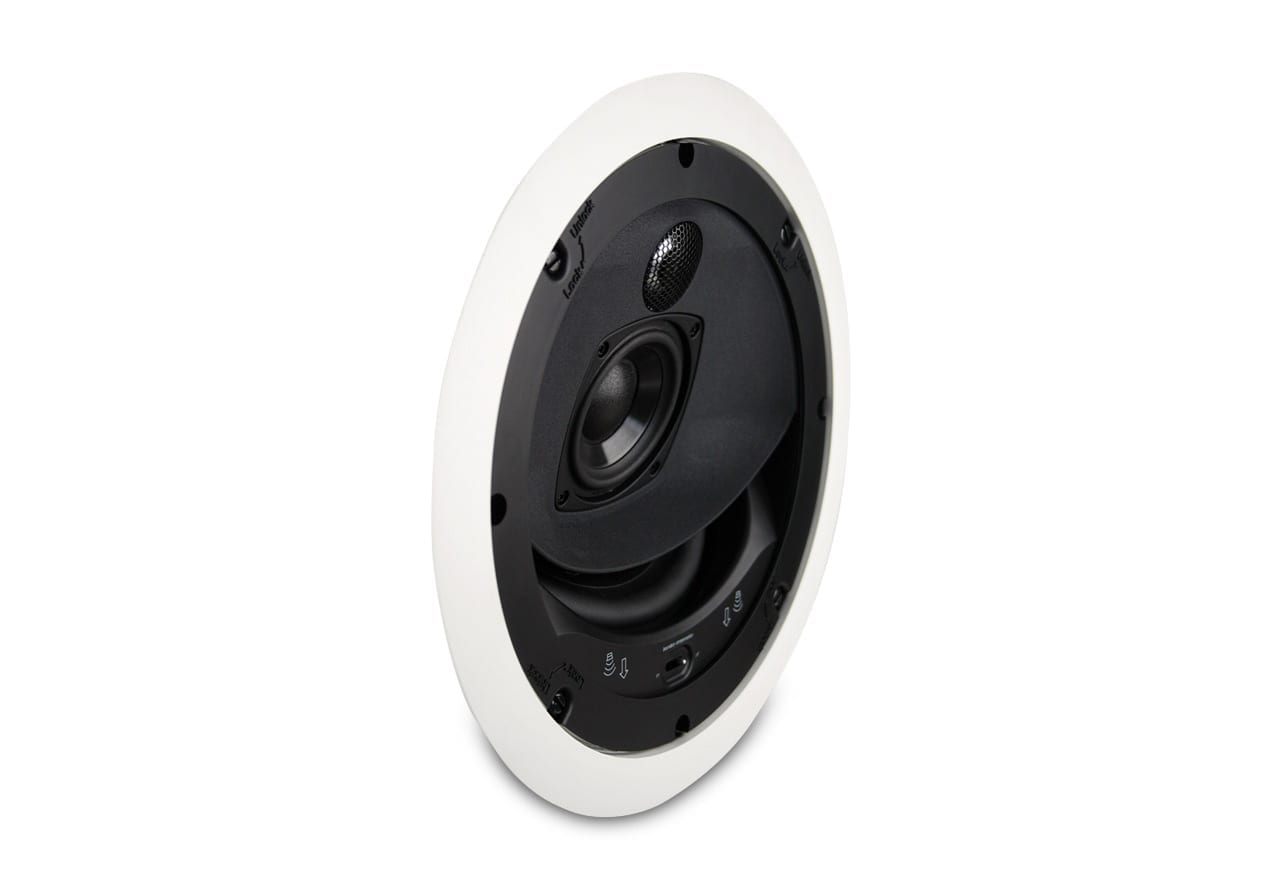

The CS100 features a rotating baffle for sound field flexibility, as well as one 8″ copolymer cone woofer, one 3-1/2″ neo copolymer cone midrange, and one 1″ aluminum dome tweeter. 200 watt power handling makes the CS100 the perfect choice for use with the McIntosh MC205 Five Channel Power Amplifier. Angled, rotating baffle mounting of the tweeter and midrange speakers allows the CS100 to be aimed where the sound is needed.
| Brand |
|---|
ELECTRONIC SPECIFICATIONS
IMPEDANCE NOMINAL
8 Ohms
POWER RATING
200 Watts
FREQUENCY RESPONSE
48Hz to 22kHz
SOUND PRESSURE LEVEL, 2.8V/1M
89dB
CROSSOVER
400Hz, 3kHz
DRIVER SPECIFICATIONS
NUMBER OF WOOFERS
1
WOOFER SIZE
8″
WOOFER TYPE
Copolymer
NUMBER OF MIDRANGES
1
MIDRANGE SIZE
3-1/2″
MIDRANGE TYPE
Neo Copolymer
NUMBER OF TWEETERS
1
TWEETER SIZE
1″
TWEETER TYPE
Aluminum dome
GENERAL SPECIFICATIONS
SYSTEM TYPE
Open Ceiling Mount
GRILLE
Neutral white metal
AVAILABLE FINISHES
Neutral white
WEIGHTS & DIMENSIONS
DIMENSIONS (W X H X D)
12-7/16″ (31.6cm) x 12-7/16″ (31.6cm) x 6″ (15.24cm)
WEIGHT
8.3 lbs (3.76 kg)
SHIPPING WEIGHT
10.5 lbs (4.76 kg)
